Ubiquiti Networks » AM-5AC22-45

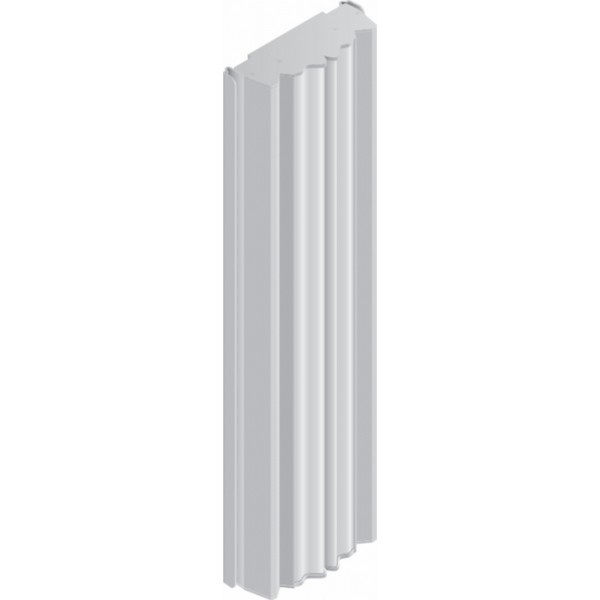

Ubiquiti AM-5AC22-45, 5GHz 22dBi, 45deg AirMax AC Sector Antenna
[1496][AM-5AC22-45]
Price: 182,53€
 Order or Qty  Price
 > 500€  5+   180,70€
 > 1000€  10+   178,87€
 > 2000€  20+   177,05€
 > 5000€  40+   175,22€
 > 10000€  100+   173,40€
Prices exclude VAT

Ubiquiti AM-5AC22-45, 5GHz 22dBi, 45deg AirMax AC Sector Antenna

Ships in:
3-5 working days
Quantity: 33
Order Qty:
UPC:810354021404

AM-5AC22-45

They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.

The airMAX ac Sector Antennas feature carrier-class construction with an innovative deflector design and 2x2, dual-polarity performance for airMAX networks.

Featuring reduced sidelobes and backlobes, the airMAX ac Sector Antennas are engineered to reject noise interference in co‑location deployments.

airMAX ac Antennas are designed with robust mechanical design for outdoor application use.

Specifications:
Model: AM-5AC22-45
Frequency Range: 5.10 - 5.85 GHz
Gain: 22dBi
Polarization: Dual Linear
Cross-pol Isolation: 25dB min.
Max VSWR: 1.5:1
Hpol Beamwidth (6dB): 45°
Vpol Beamwidth (6dB): 45°
Electrical Downtilt:
Electrical Beamwidth:
ETSI Specification: EN 302 326 DN2
Dimensions: 750 x 215 x 94 mm
Weight: 6 kg
Wind Survivability: 200 km/h


Additional Images:



Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
