Aerial.net :: EZPS3015E, 15v 2.0A Power Supply Wallplug EU type

e-zy.net » EZPS3015E

EZPS3015E, 15v 2.0A Power Supply Wallplug EU type
[0848][EZPS3015E]

Price: 6,33€

Prices exclude VAT

In Stock: 428

Order Qty:

UPC:	728615667899

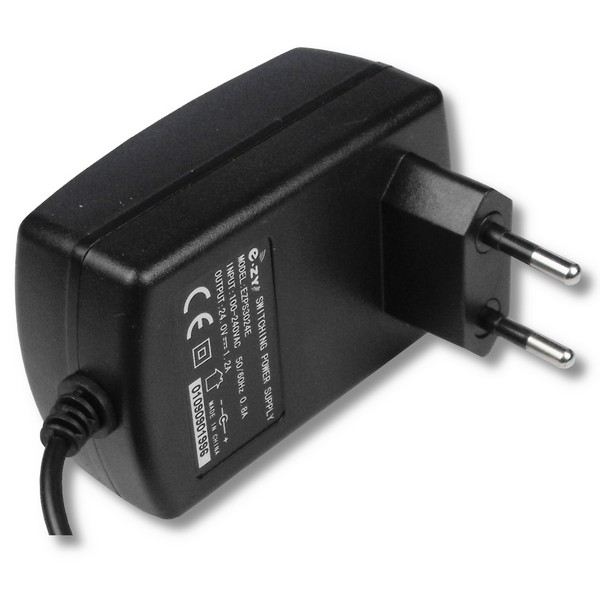

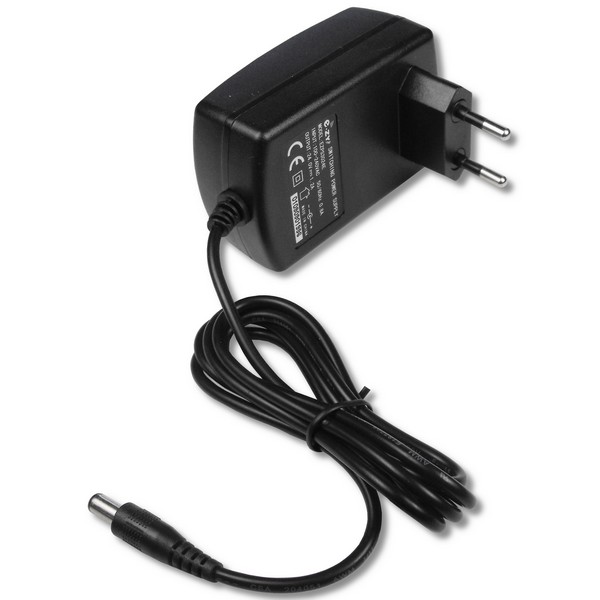

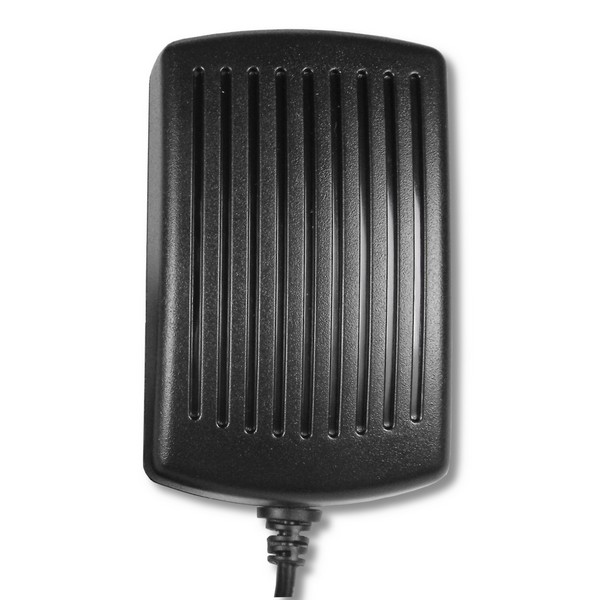

15V AC adapter :

Output: 15V DC / 2000mA, 2.1 mm DC jack.
Input: 100 - 240VAC, 47 - 63 Hz, CE / UL / GS.
AC Prongs : EU Type
Origin: China

Product Links:
Product Page	Datasheet	CE DoC

Specifications:
Input Rated Voltage	100Vac~240Vac
Input Voltage Rate	90Vac~264Vac
Input Rated Frequency	50/60Hz
Input Frequency Range	47Hz~63Hz
Input Current	0.6A Max
Input Inrush Current	30A Max
Input No Load Power Consumption	0.5 Watt Max
Efficiency	80% Min
Rated Output Voltage & Current	15v/2.0A
Output Line Regulation	+-1%
Output Load Regulation	+-5%
Output Over Shoot	10% Max
Output Ripple and Noise	1% Max
Output Rising Time	20ms Max @ 115Vac
Output Hold-Up Time	8ms Min @ 230Vac
Protection	OCP OVP SCP OPP
Dielectric Withstand Voltage	3KV 5mA 60s
Leakage Current	0.25mA @ 230Vac
DC Plug Προδιαγραφές	5.5x2.1x11mm
Dimension	50x80x55mm
Operating Temperature Range	0^oC~40^oC
Storage Temperature Range	-20^oC~+85^oC

Package Contents:
1 x

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
