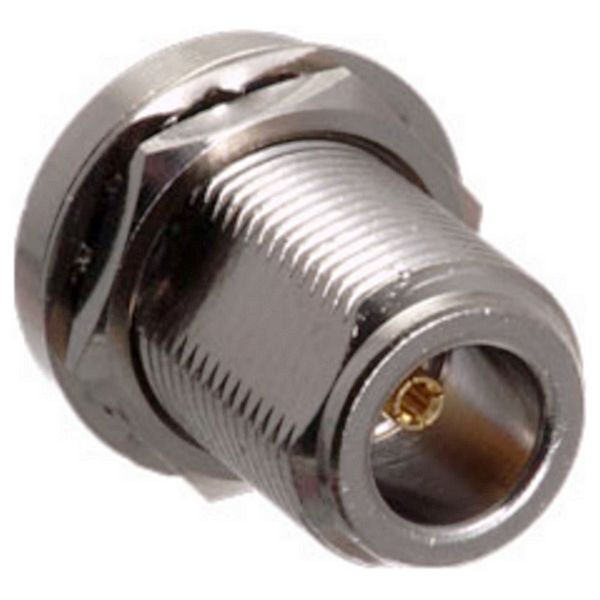

EZ-NB100, N-Type Female Bulkhead Crimp connector for 100, RG-174 series cable
[0081][EZ-NB100]

Price: 2,88€

Prices exclude VAT

In Stock: 44

Order Qty:

UPC:	728615667370

EZ-NB100 - N-type Female Bulkhead Crimp connector for 100 series cable.

N Series coaxial connectors are medium-sized, threaded coupling connectors designed for use from DC to 11 GHz.

Their consistently low broadband VSWR have made them popular over the years in many applications.

The N series connector is impedance matched to 50 ohm cables.

Product Links:
Product Page	Datasheet

Specifications:
Impedance	50 ohm
Frequency Range	0 to 11.0 Ghz
V.S.W.R.	1.3 max
Working Voltage	1,000 volts rms max at sea level
Dielectric Withstanding Voltage	2,500 volts rms max at sea level
Contact Resistance	Center contact=1.0 Milliohms max
Contact Resistance	Outer contact=1.0 Milliohms max
Insertion Loss	0.3 dB max at 10 Ghz
Insulation Resistance	5,000 Megohms min
Body (Material/Finish)	Brass/Nickel
Center Pin (Material/Finish)	Bronze/Gold
Crimp Tube (Material/Finish)	Annealed Copper/Nickel
Dielectric	Teflon
O-Ring	Present

Connector
N-Type Female

Male thread Female center pin

Package Contents:
1 x EZ-NB100

%%products_images%

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
