EZ-HDCE - Hinged Die Cast Aluminum Outdoor Enclosure, IP56 - 1E4Ν
[0539][EZ-HDCE]

Price: 24,68€

Order or Qty		Price
> 500€	5+	24,43€
> 1000€	10+	24,19€
> 2000€	20+	23,94€
> 5000€	50+	23,69€
> 10000€	100+	23,45€

Prices exclude VAT

In Stock: 24

Order Qty:

UPC:	728615665857

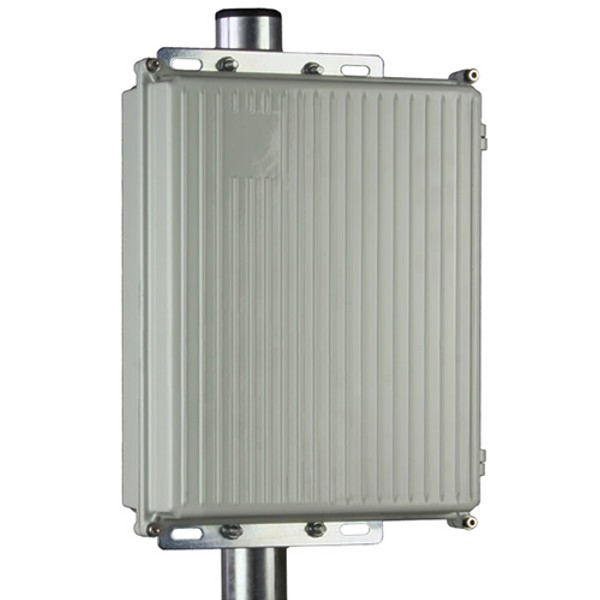

The HDCE is an IP56 rated Hinged Die Cast Aluminum Enclosure designed for extremely long life in outdoor environments.

The powder coat paint over aluminum construction offers unsurpassed resistance to corrosion.

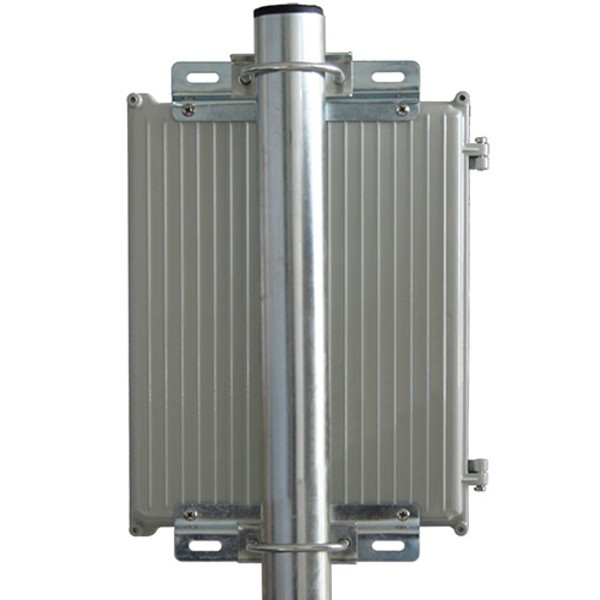

Τhe pole mount hardware includes heavy galvanized Pole Clamps, U-Bolts and attachment nuts.

HDCE has extra heavy duty mounting flanges for reliable mounting to poles or surface mounting to walls.

HDCE outer dimensions are 28.5cm x 23cm x 9.5cm and inner dimmensions 25.5cm x 20cm x 7.5cm

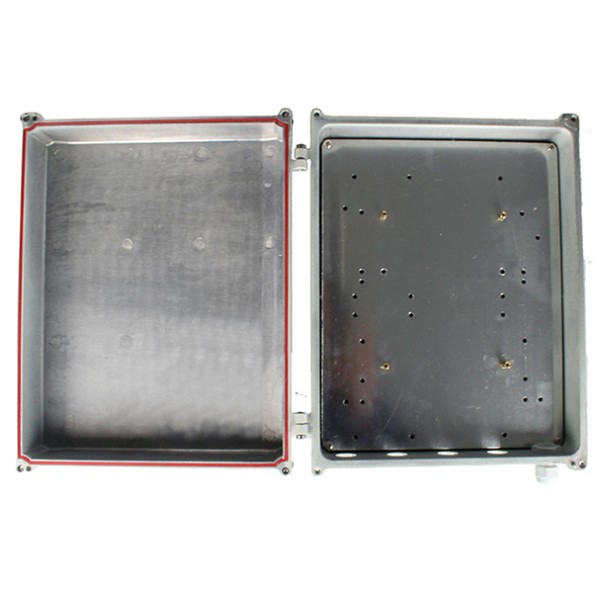

There are 5 holes on the bottom part. 1 x 22.3mm for Network Cable (included Cable Gland or optional ΕΖ-RJ45ECS22) and 4 x N-Type for pigtail / antennas.

Product Links:
Dimensions

Specifications :
Part #	EZ-HDCE
Mount	Wall / Mast
Mast diam	30-60mm
Holes	1 x Cable Gland + 4 x N-Type
Outdoor Rated	IP56
Material	Aluminum
Color	Grey
Weight	1812gr
Dims	281 x 223 x 102 mm

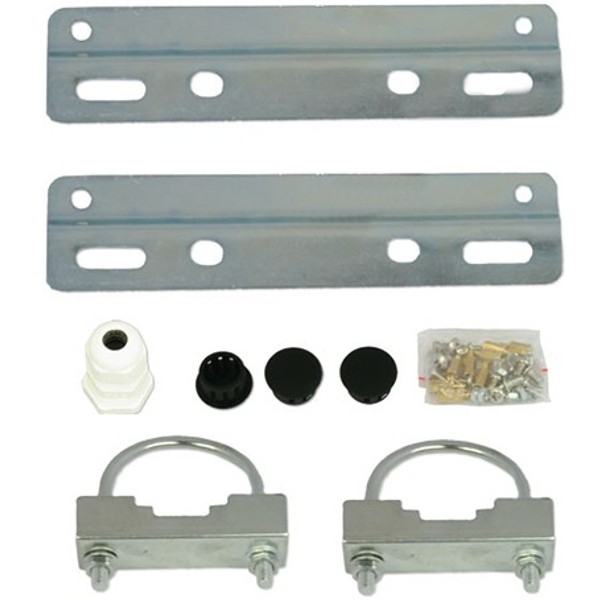

Package Contents:
1 x HDCE Hinged Die Cast Enclosure
1 x Blank Customer Install Plate
1 x Cable Gland
3 x N-Type plugs
1 x Silicon Gasket
2 x Mounting bracket
2 x U-Bolt and Clamp Kit
1 x Screw KIT

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
