GPOE-1AB - 2 Pair or/and 4 Pair PoE. Mode A or/and Mode B concurrent PoE
This method allows power to be combined with 10/100/1000 networks and supports both 802.3af and 802.3at with "always on" passive power.
Power an IP camera, desktop phone, WiFi access point, or other low voltage device through a network data cable using this Passive Power over Ethernet (PoE) injector.
A Passive PoE injector always delivers the same voltage as its power source.
Pair this injector with a 48 volt DC power supply to power devices labeled “802.3af,” or you can use a 24 volt DC power supply to power 24-volt passive PoE devices like Access Points from Mikrotik, Ubiquiti, and many more.
Dual Use Purpose - Doubles as a PoE Splitter. Alternatively, use this product as a PoE splitter to divide power and data. Simply input PoE into the RJ45 port and power and data will automatically be "split" on to the LAN port and the 2.1mm DC barrel.
Features:
-

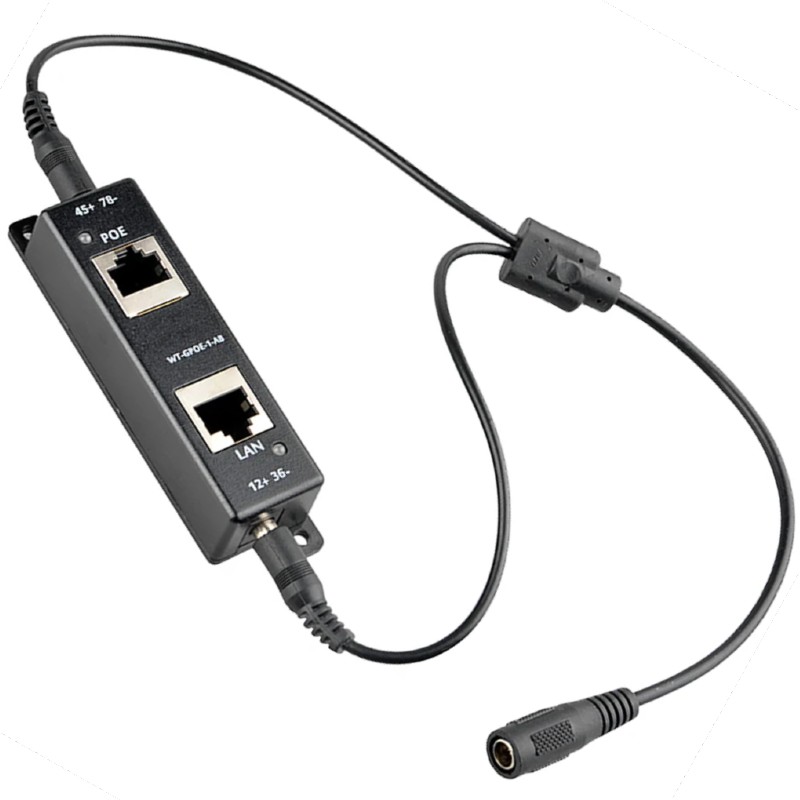

Offers 4 Pair PoE (4PPoE) when used with the included Y-Cable
-
Passive "Always On" PoE power delivery for reliable throughput
-
Mode A / Mode B Options
-
Doubles as a PoE splitter when used in reverse
-
Compatible with 12v-56v DC Power supply up to 60 watts (optional)
|
Specifications: |
|
Data + PoE Ports |
1 x RJ45 shielded |
|
Data Ports |
1 x RJ45 shielded
|
|
Data Rate |
Gigabit |
|
Input Volt Range DC |
12v-56v, isolated for each DC Port
|
|
DC connectors |
2 x 2.1mm x 5.5mm DC Standard |
|
PoE Mode/Pinout |
Mode A (1,2+ / 3,6-), Mode B (4,5+ / 7,8-)
|
|
PoE Method |
Passive |
|
PoE Standard |
802.3af w/o handshake (passive)
|
|
DC LEDs |
1 per DC port, 2 total |
|
Management Port |
None |
|
PoE Configurable Per Port |
No
|
|
Max. Amps Per Port |
0.9A / 1.8A (With Y-Cable) |
|
Mount Type |
Desk / Wall Mount |
|
Operating Humidity |
5% to 90% |
|
Operating Temperature Range |
-10°C ~ +60°C |
|
Color |
Black |
|

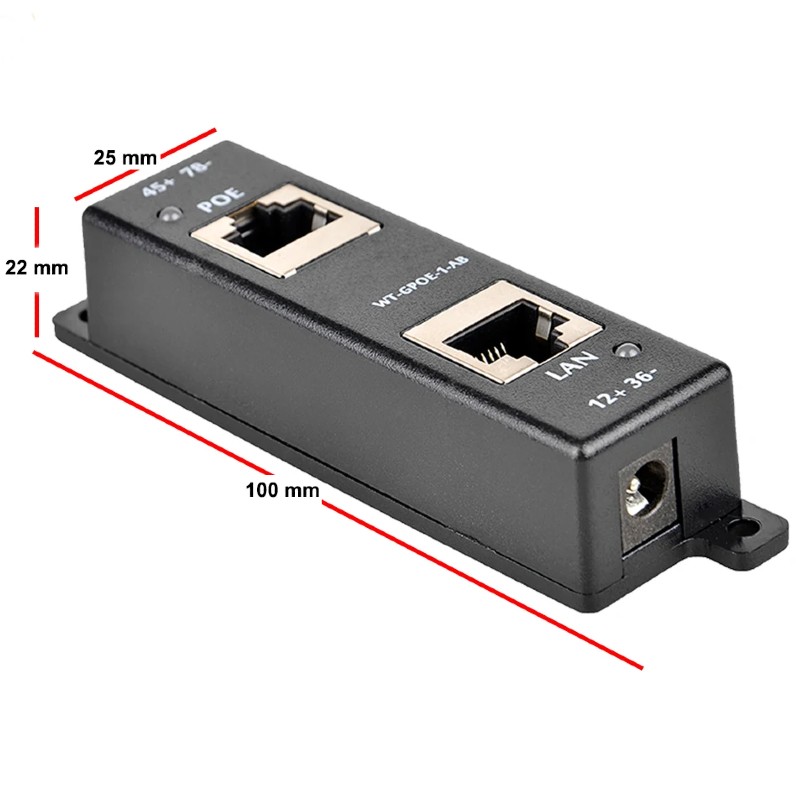

Dimensions |
100 x 25 x 22mm
|
|
Weight |
284g |
| Package Contents: |
|---|
| 1 x GPOE-1AB, Passive PoE Injector
|

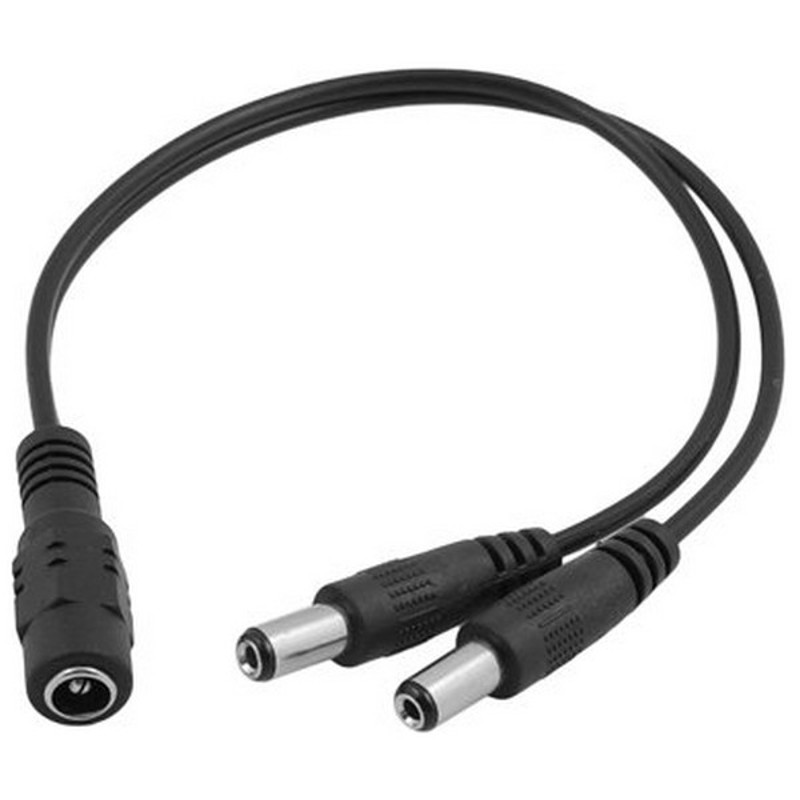

| 1 x EZ-DCSP2, DC Y-Splitter |
|
