EZ-RJ456ASTL - Cat.6A, RJ45 Shielded Connector, Tool Free - 1 pc
[3192][EZ-RJ456ASTL]

Price: 4,80€

Prices exclude VAT

In Stock: 18

Order Qty:

UPC:	728615667172

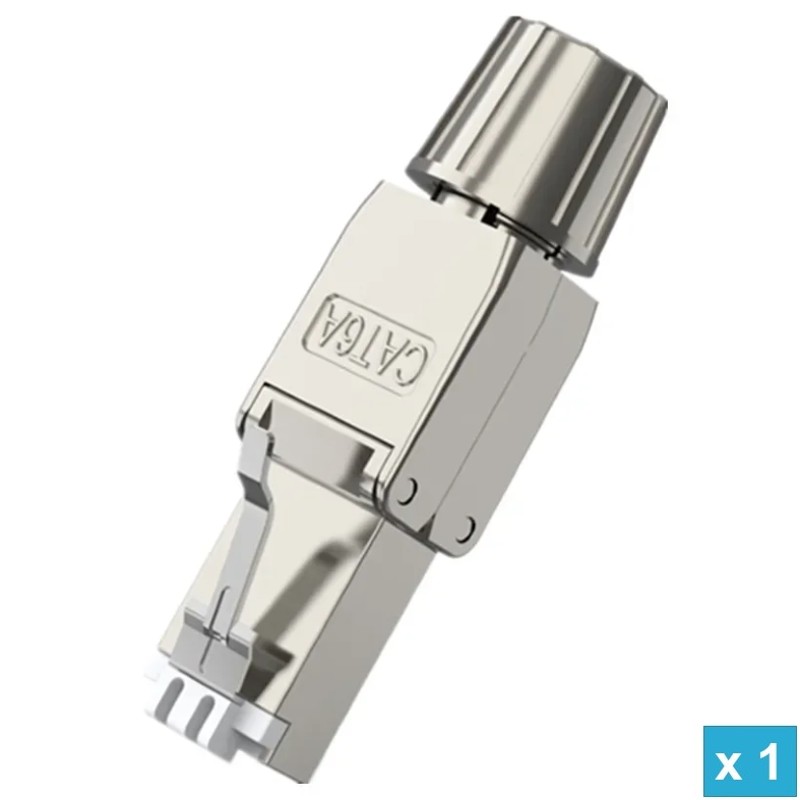

EZ-RJ456ASTL - Cat.6A, RJ45 shielded Connector, Tool Free

Easy Assembly - terminate in field in minutes without special tools

Load Bar for Faster and Easier Wire Pattern Termination

Specifications :
Wire Diameter	1.035 έως 1.35 mm
Transmission	Cat.6 ISO/IEC11801, TIA568.2-D, EC verified
Complies with	DIN EN 50173-1:2011-09 10 Gbit
Wiring code	T568A or T568B
Color	White
Shielded	No
Power Over Ethernet	PoE, PoE plus, and UPoE
Cable Jacket Diameter	7 to 9.5 mm
Adjustable Strain Relief	7mm to 9.5mm Cable outside diameter
Operating temperature	-40 ~ +60°C
Relative humidity	85% (+30°C), Air pressure: 70-106Kpa
Contact Blades	Phosphor bronze alloy, 50µ gold plated
Intermediate resistance	No more than 20 megohm
Insulated resistance	No less than 1,000 megohm
Retention strength	7.7kg between jack and plug
