e-zy.net » EZ-RJ456AUTL
EZ-RJ456AUTL - Cat.6A, RJ45 unshielded Connector, Tool Free - 1 pc
[3190][EZ-RJ456AUTL]
Price: 3,44€
 Order or Qty  Price
 > 500€  5+   3,37€
 > 1000€  10+   3,30€
 > 2000€  20+   3,23€
 > 5000€  40+   3,16€
 > 10000€  100+   3,10€
Prices exclude VAT

EZ-RJ456AUTL - Cat.6A, RJ45 unshielded Connector, Tool Free - 1 pc
In Stock: 30
Order Qty:
UPC:728615667158

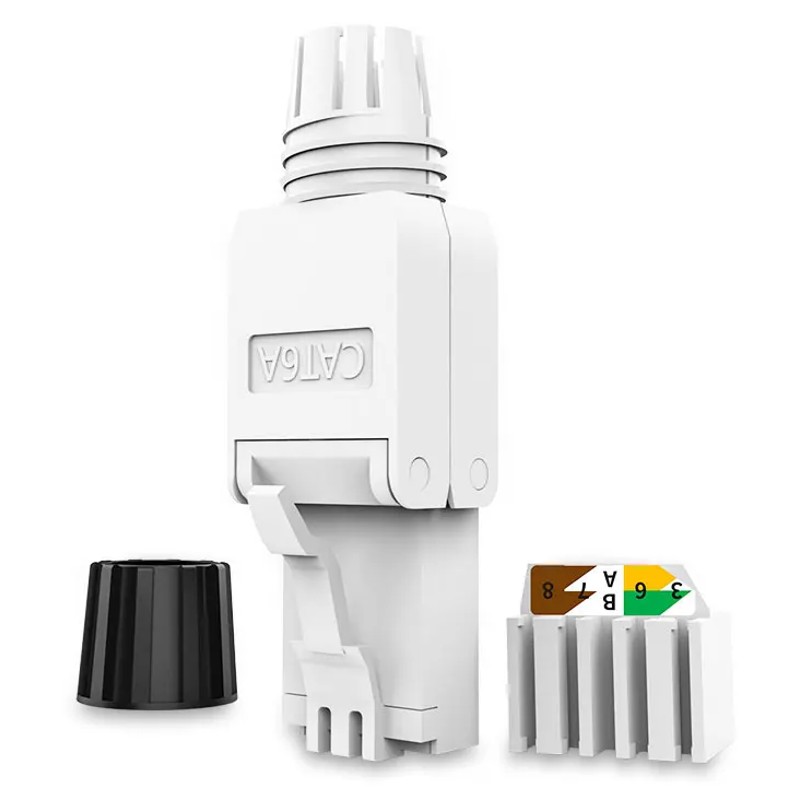

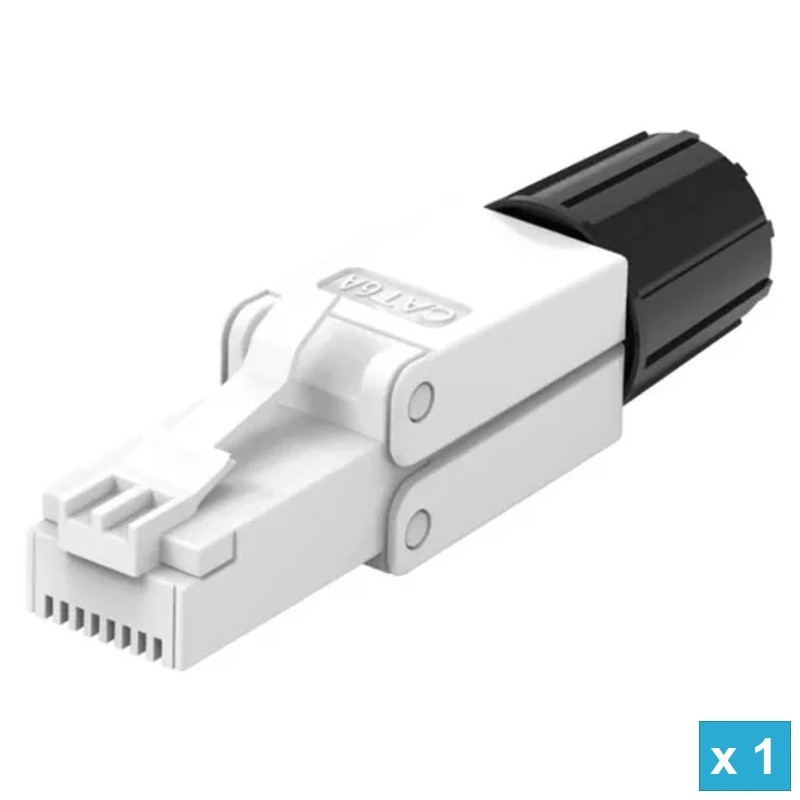

EZ-RJ456AUTL - Cat.6A, RJ45 unshielded Connector, Tool Free

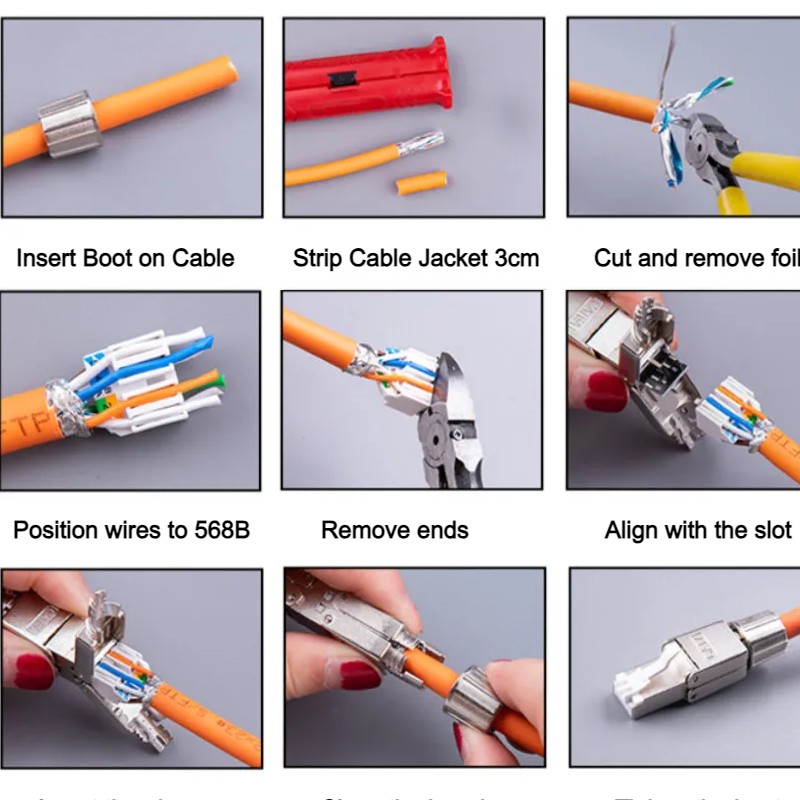

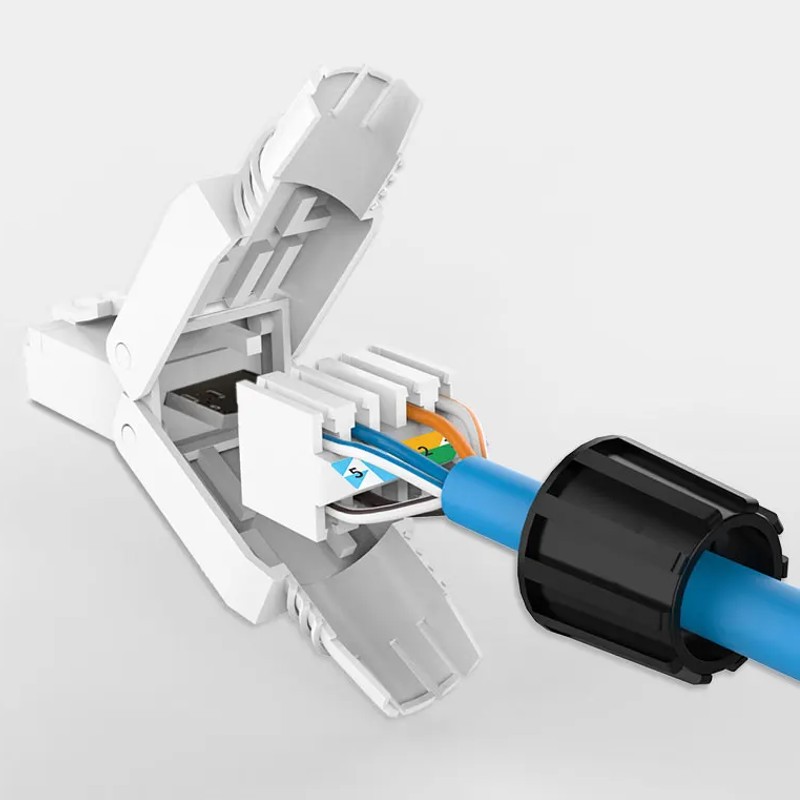

Easy Assembly - terminate in field in minutes without special tools

Load Bar for Faster and Easier Wire Pattern Termination

Specifications :
Wire Diameter
1.035 έως 1.35 mm
Transmission  Cat.6 ISO/IEC11801, TIA568.2-D, EC verified
Complies with DIN EN 50173-1:2011-09 10 Gbit
Wiring code T568A or T568B
Color White
Shielded No
Power Over Ethernet PoE, PoE plus, and UPoE
Cable Jacket Diameter 7 to 9.5 mm
Adjustable Strain Relief 7mm to 9.5mm Cable outside diameter
Operating temperature -40 ~ +60°C
Relative humidity 85% (+30°C), Air pressure: 70-106Kpa
Contact Blades Phosphor bronze alloy, 50µ gold plated
Intermediate resistance No more than 20 megohm
Insulated resistance No less than 1,000 megohm
Retention strength 7.7kg between jack and plug

Package Contents:
1 x EZ-RJ456AUTL

Additional Images:
Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
