EZ-RJ457T-D-PT - Cat7/Cat.6A, Shielded 2-Piece Pass Through Connector with DoveTail - 1 pc
[3188][EZ-RJ457T-D-PT]
Price: 0,54€
 Order or Qty  Price
 > 500€  5+   0,53€
 > 1000€  10+   0,52€
 > 2000€  20+   0,51€
 > 5000€  40+   0,50€
 > 10000€  100+   0,49€
Prices exclude VAT

EZ-RJ457T-D-PT - Cat7/Cat.6A, Shielded 2-Piece Pass Through Connector with DoveTail - 1 pc

In Stock: 45
Order Qty:
UPC:728615667141

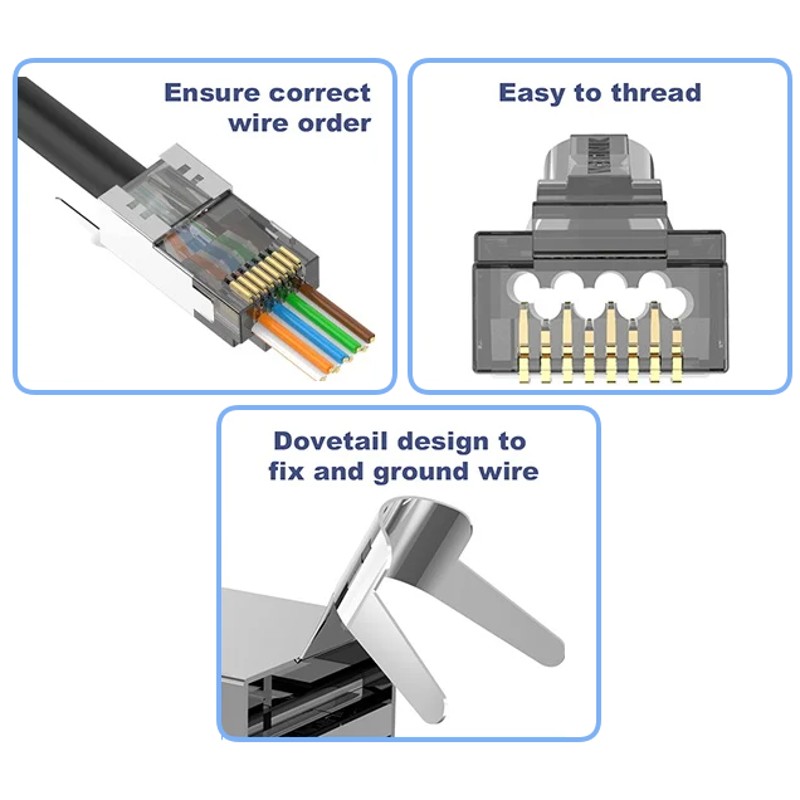

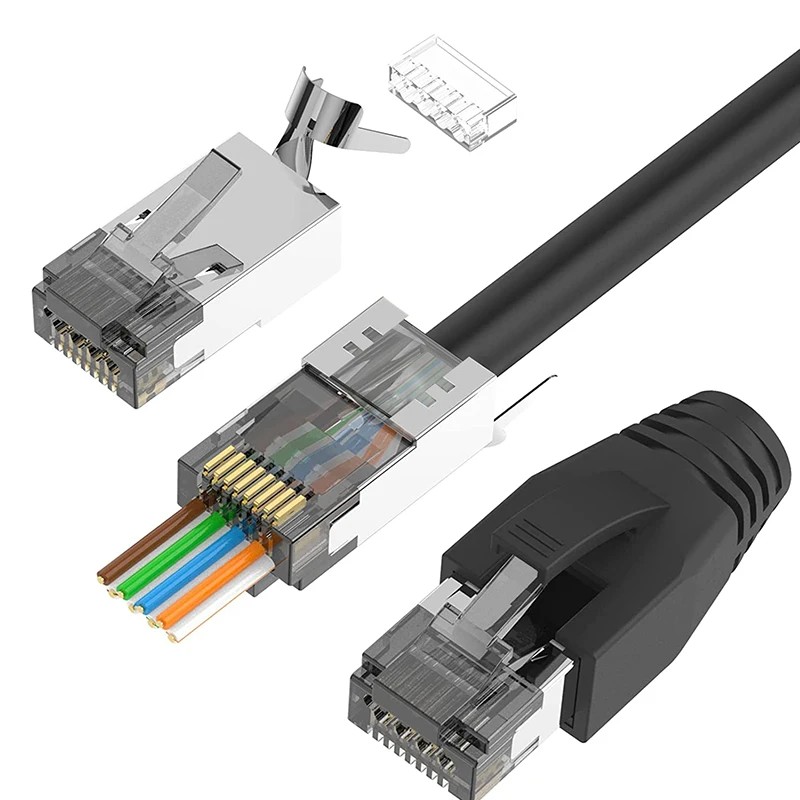

EZ-RJ457T-D-PT - Cat7 /Cat.6a, Shielded 2-Piece Connector wtih DoveTail with Pass Trhough

Shielded EZ-RJ457T-D-PT Connectors to create cables that meet Category Cat7 /Cat.6a standards.

These connectors feature a fully shielded design with an internal ground that improves noise immunity at all frequencies, especially at above 30 MHz.

Not compatible with CAT8, CAT6, CAT5e, and CAT5 versions

Specifications:
Device
Type: RJ45 Cat.6 Plug
Style:  STP Plug

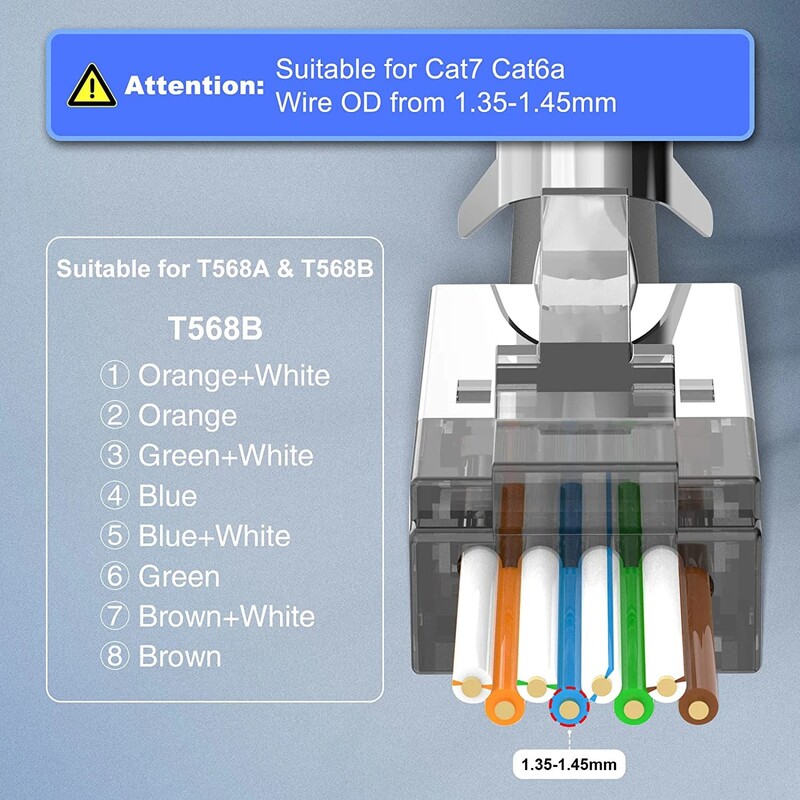

Inner Cable Diameter: 1.35~1.45mm
Materials
Contactl: Phosphor Bronze
Contacts: Gold plated
Housing: Polycarbonate
Electrical
Contact Current Rating: 1.5 Amps
Dielectric Voltage:  1000V AC
Insulation Resistance: 500MOhms Min


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
