e-zy.net » EZ-RJ457TL

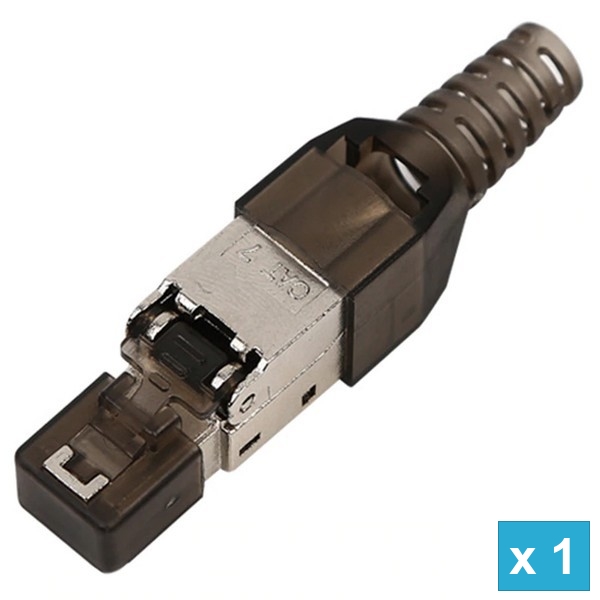

EZ-RJ457TL - Cat.7, Shielded Connector, Tool Free - 1 pc
[2678][EZ-RJ457TL]
Price: 4,04€
 Order or Qty  Price
 > 500€  5+   3,96€
 > 1000€  10+   3,88€
 > 2000€  20+   3,80€
 > 5000€  40+   3,72€
 > 10000€  100+   3,64€
Prices exclude VAT

EZ-RJ457TL - Cat.7, Shielded Connector, Tool Free - 1 pc

In Stock: 13
Order Qty:
UPC:728615667073

EZ-RJ457TL - Cat.6a, Shielded Connector, Tool Free

Easy Assembly - terminate in field in minutes without special tools

Load Bar for Faster and Easier Wire Pattern Termination

Specifications :
Wire Diameter 0.46 to 0.76 mm
Transmission  Cat.7 ISO/IEC11801, TIA568.2-D, EC verified
Complies with DIN EN 50173-1:2011-09 10 Gbit
Wiring code T568A or T568B
Color Gray
Housing material Zinc-alloy fully shielded
Power Over Ethernet PoE, PoE plus, and UPoE
Cable Jacket Diameter 6 to 9.5 mm
Adjustable Strain Relief 6mm to 9.5mm Cable outside diameter
Operating temperature -40 ~ +60°C
Relative humidity 85% (+30°C), Air pressure: 70-106Kpa
Contact Blades Phosphor bronze alloy, 50µ gold plated
Intermediate resistance No more than 20 megohm
Insulated resistance No less than 1,000 megohm
Retention strength 7.7kg between jack and plug

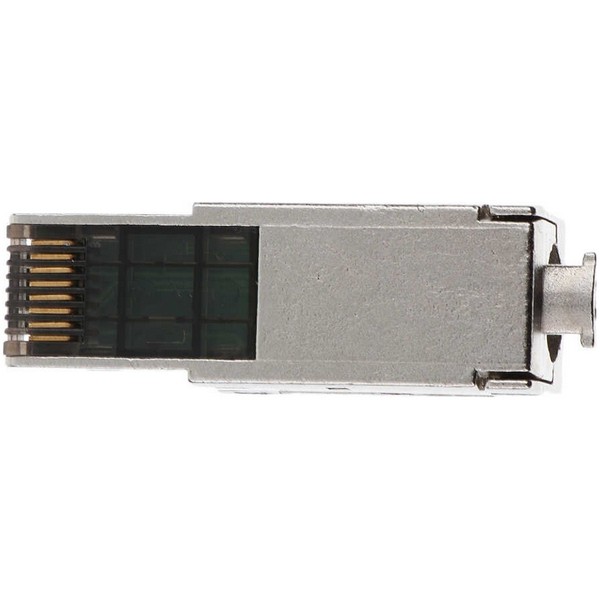

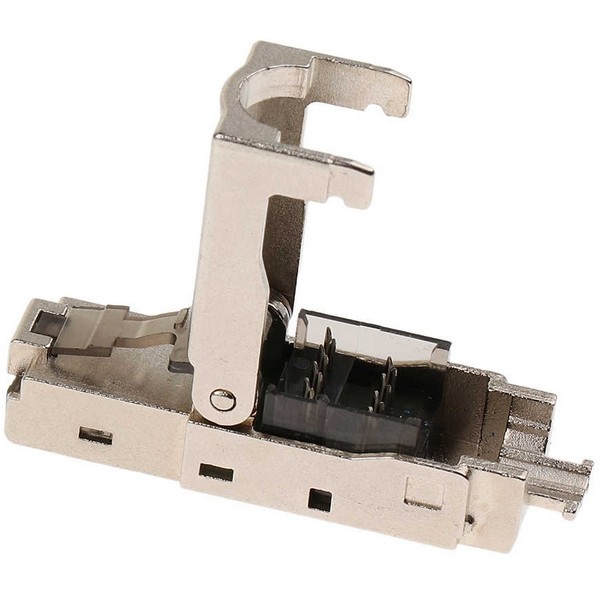

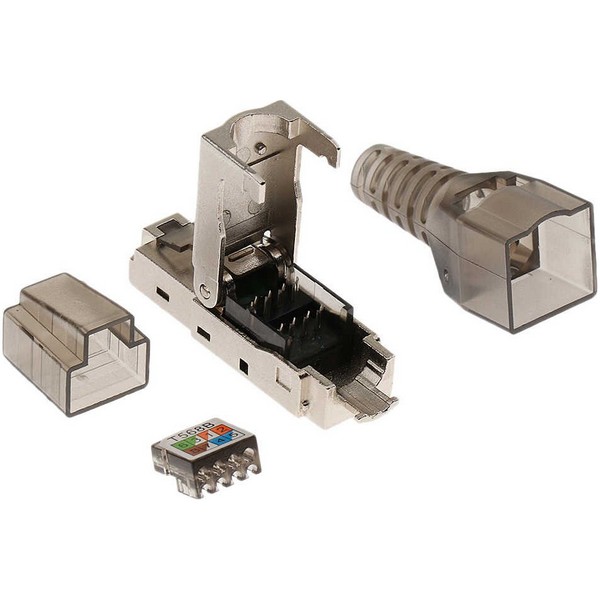

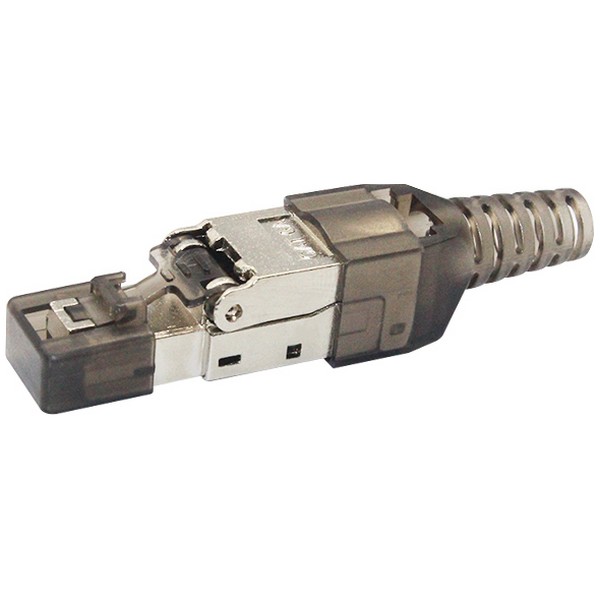

Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
