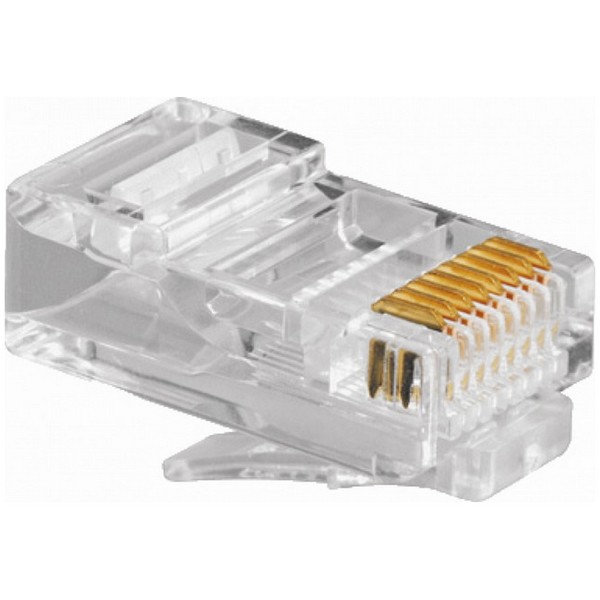

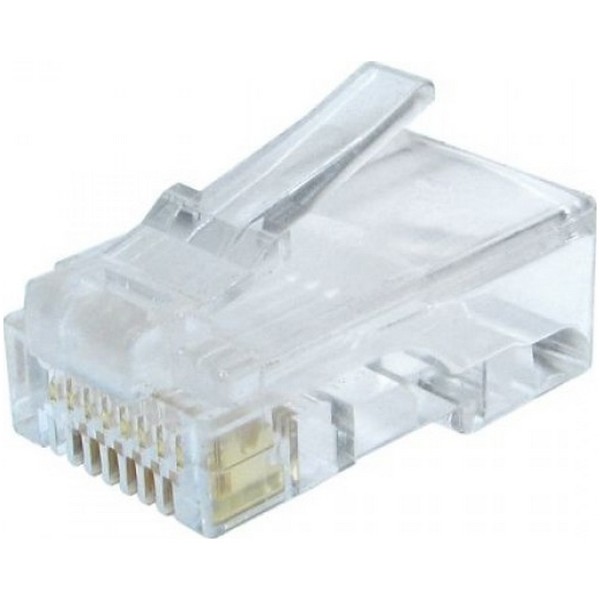

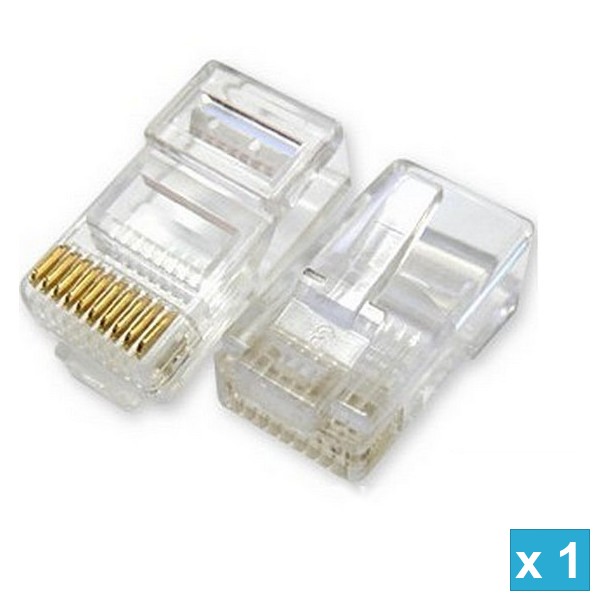

EZ-RJ45P, Cat.5e, Standard Connector - 1 pc
[2661][EZ-RJ45P]

Price: 0,04€

Prices exclude VAT

In Stock: 600

Order Qty:

UPC:	728615665086

EZ-RJ45P

Is suitable for Modular applications and features Gold Flash on contacts for optimum data transmission.

Specifications:
Type:	RJ45 Cat5 Plug
Style:	Solid UTP Plug
Contactl:	Phosphor Bronze
Contacts:	Gold Flash over Nickel underplate.
Housing:	Polycarbonate
Contact Current Rating:	1.5 Amps
Dielectric Voltage:	1000V AC
Insulation Resistance:	500MOhms Min

Pin	T568A pair	T568B pair	10BASE-T 100BASE-TX	1000BASE-T signal ID	Wire	T568A color	T568B color
1	3	2	TX+	DA+	tip	white/green stripe	white/orange stripe
2	3	2	TX−	DA−	ring	green solid	orange solid
3	2	3	RX+	DB+	tip	white/orange stripe	white/green stripe
4	1	1	—	DC+	ring	blue solid	blue solid
5	1	1	—	DC−	tip	white/blue stripe	white/blue stripe
6	2	3	RX−	DB−	ring	orange solid	green solid
7	4	4	—	DD+	tip	white/brown stripe	white/brown stripe
8	4	4	—	DD−	ring	brown solid	brown solid

Package Contents:
1 x RJ45 Cat5e connector

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
