Aerial.net :: MMCX Right Angle Male Crimp 100, RG-174 series cable

e-zy.net » EZ-MMCXRA100

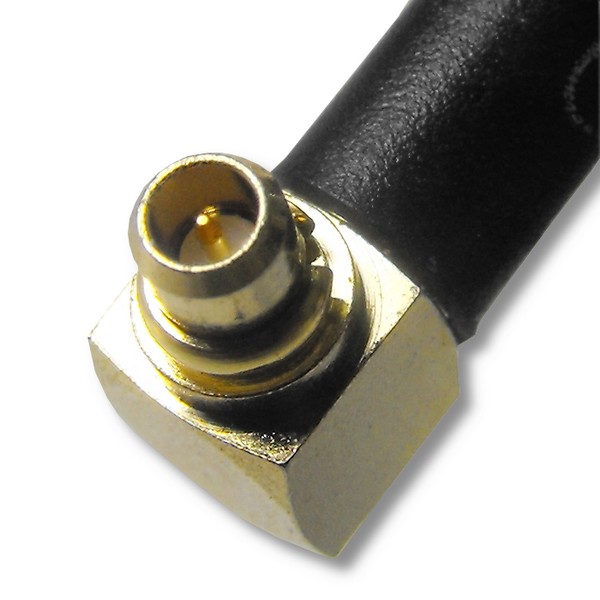

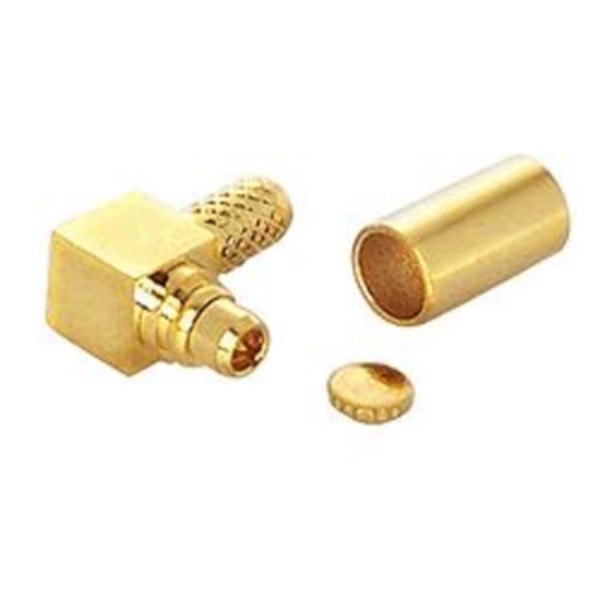

MMCX Right Angle Male Crimp 100, RG-174 series cable
[0217][EZ-MMCXRA100]

Price: 1,36€

Prices exclude VAT

In Stock: 145

Order Qty:

EZ-MMCXRA100

MMCX Crimp connector for 100, RG-174 series cable.

Product Links:
Product Page	Datasheet

Specifications:
Impedance	50 ohm
Frequency Range	0 to 11.0 GHz
VSWR	1.3 max
Working Voltage	1,000 volts rms max at sea level
Dielectric Withstanding Voltage	2,500 volts rms max at sea level
ContactResistance	center contact=1.0 Milliohms max outer contact=1.0 Milliohms max
Insertion Loss	0.3 dB max at 10 GHz
Insulation Resistance	5,000 Megohms min

Package Contents:
1 x

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
