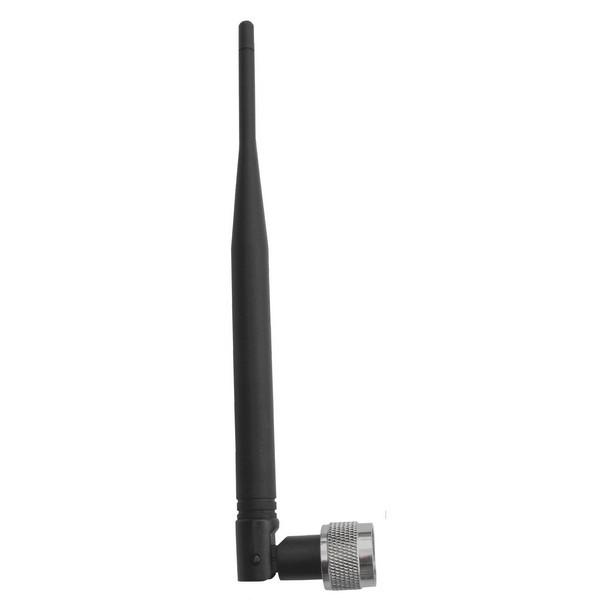

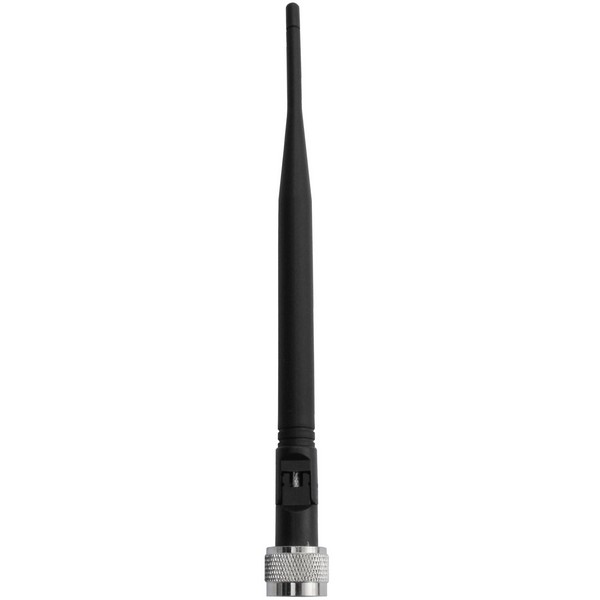

5dBi 2.4GHz Swivel OMNI Antenna -N-Type Male Connector
[1953][EZ-RD24R05INM]
Price: 2,80€
 Order or Qty  Price
 > 500€  5+   2,74€
 > 1000€  10+   2,69€
 > 2000€  20+   2,63€
 > 5000€  40+   2,58€
 > 10000€  100+   2,52€
Prices exclude VAT

5dBi 2.4GHz Swivel OMNI Antenna -N-Type Male Connector

In Stock: 26
Order Qty:
UPC:728615665024

EZ-OM24S05IMN

The new OMNI Directional Antenna is made of TPEE Material with steel base, provides broad coverage and 5 dBi gain, and is available with an integrated N-Type Male Connector.

The gain of this antenna is 5dBi and comes with 50° of Vertical BeamWidth.

The antenna features high gain in an aesthetic package. Because of their high gain the user can expect extra signal strength.

The antenna is targeted for MESH applications and  is manufactured to mount directly on the indoor or outdoor case of the electronics.

It is only 21cm in length and is available with N-Type Male Connector  (Female thread / Male center pin.)

Specifications: Min Typ Max Units
Frequency 2400 - 2483 MHz
Gain 5.0 5.5 6.0 dBi
Ver Beamwidth   50°   Deg
Hor Beamwidth   360°   Deg
VSWR   1.5:1
Impedance   50   Ohm
Power     10 Watt
Temp -10   +70 Deg C
Connector   N-Type Male
Weight   150   gr
Dimentions   210 x 20D   mm
Connector :
N-Type Male
Female Thread
Male center pin


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
