KMETech 10/100MB PoE Injector
[1672][PSI-348]

Price: 1,95€

Order or Qty		Price
> 500€	5+	1,91€
> 1000€	10+	1,87€
> 2000€	20+	1,83€
> 5000€	40+	1,79€
> 10000€	100+	1,76€

Prices exclude VAT

In Stock: 63

Order Qty:

UPC:	728615666656

KME-PSI348

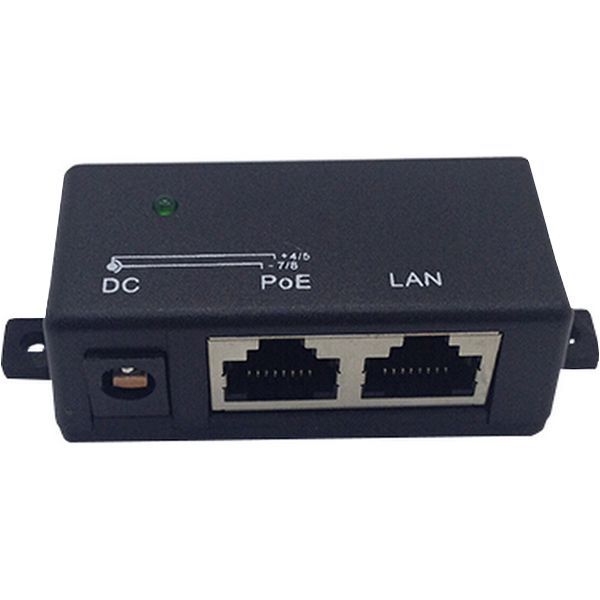

Is a low cost Power Over Ethernet (PoE) Injector to insert PoE power to a CAT5 Ethernet data cable on the unused Ethernet pins 4,5(+) and 7,8(-).

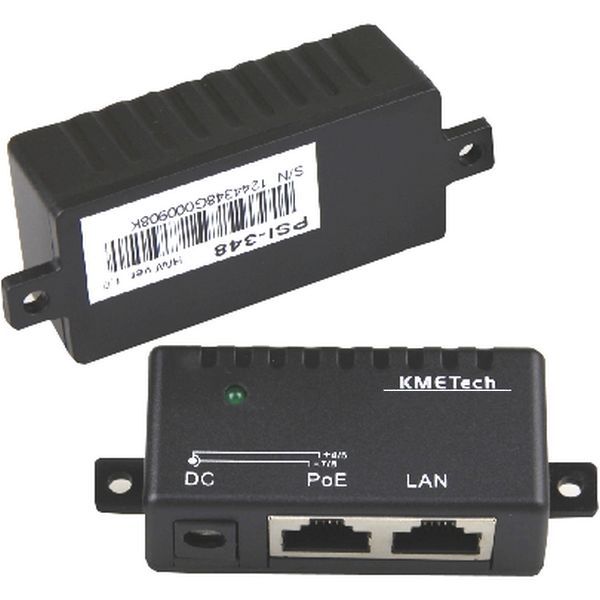

Made of TPEE material in an aesthetic package and is available with one RJ45 plug to act as “Data-In”, one RJ45 port to act as “PoE+Data out” and one power supply jack.

Also allows you to use your space efficiently when installing your wireless equipment through its small size and high manageabillity.

Has a power on indicator LED showing when DC power (12V to 48V) is being supplied to the inserter through the DC jack.

Features :

RJ45 Cat.5 Input / Output connector
Input / Output common ground
Power/Data mixer
Ethernet switches expand to Wireless AP
Cat5 rated RJ45 jack for more reliable high speed data connections (10/100MB)
Small size.

Applications:

Wireless Access Points and Client Devices
IP Phone and Security Camera Systems

Input / Output Specifications :
DC Input Voltage	48V ± 5 %
DC Output Voltage	same as input
Max Output Current	0.4A Max.
General Specifications:
Operating Temperature	-10^oC ~ +50^oC
Humidity	Up to 90%
Weight	25gr

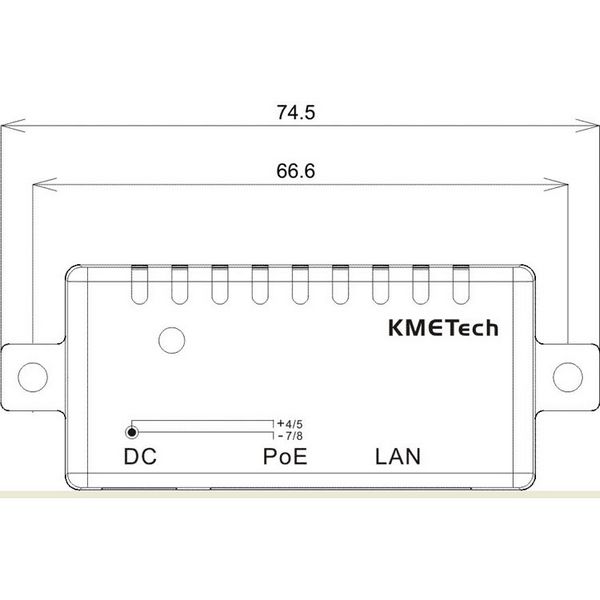

Dimensions	75mm * 28mm * 21mm

LAN Pins		PoE Pins
1	Tx(+)	Tx(+)	1
2	Tx (-)	Tx (-)	2
3	Rx (+)	Rx (+)	3
4	N.C.	V+	4
5	N.C.	V+	5
6	Rx (-)	Rx (-)	6
7	N.C.	GND	7
8	N.C.	GND	8

Package Contents:
1 x Passive PoE Injector

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
