Passive PoE Injector with LED cat5 Plug, cat5 Jack, cat5 cable
[0568][EZ-POE-LED]

The product is
no longer available

Prices exclude VAT

EZ-POE-LED

The EZ-POE-INJ are a series of low cost Power Over Ethernet (POE) Inserters to insert POE power to a CAT5 ethernet data cable on the unused ethernet pins 4,5(+) and 7,8(-).

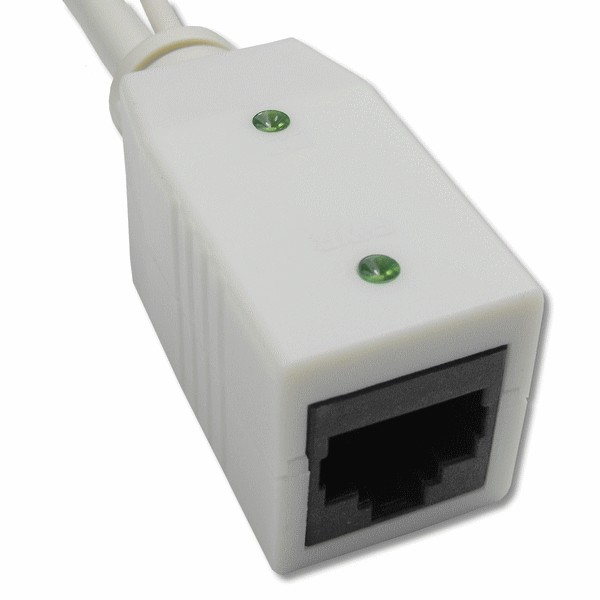

The unique EZ-POE-LED has power on and current indicator LED’s.

The Power LED shows that DC power is being supplied to the inserter through the DC jack.
The Current LED shows that a POE device is plugged in at the end of the CAT5 ethernet cable up to 100m (330ft) away from the inserter.

Features:

Cat5 RJ45 Input connector

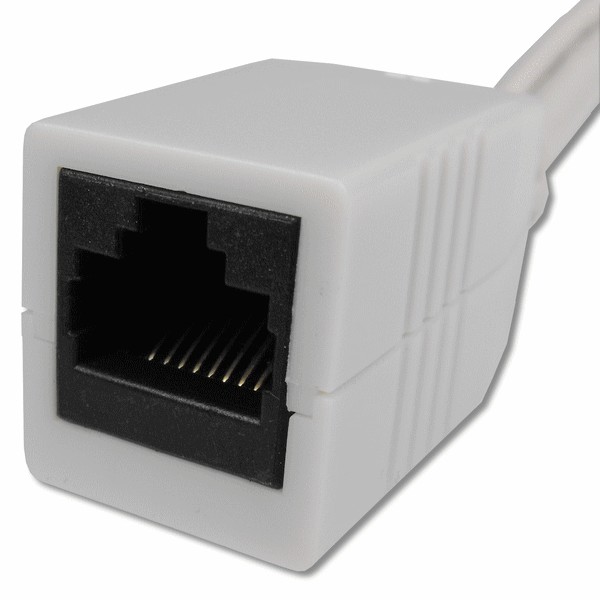

Cat5 RJ45 Output connector
PS Power LED Indicator
AP Power LED Indicator
Shrouded DC Jack for improoved safety.

Product Links:
Product Page	Datasheet

Input / Output Specifications :
DC Input Voltage	48V ± 5 %
DC Output Voltage	48V ± 5 %
Max Output Current	0.4A Max.
Over Current Protection	None
General Specifications:
Operating Temperature	0^oC ~ +50^oC
Storage Temperature	-20^oC ~ +70^oC
Humidity	Up to 90%
Weight	50gr
Dimensions	230x25x20mm

Input Pins RJ-45 Plug		Output Pins RJ-45 Jack
1	Tx(+)	Tx(+)	1
2	Tx (-)	Tx (-)	2
3	Rx (+)	Rx (+)	3
4	N.C.	V+	4
5	N.C.	V+	5
6	Rx (-)	Rx (-)	6
7	N.C.	GND	7
8	N.C.	GND	8

Package Contents:
1 x

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
