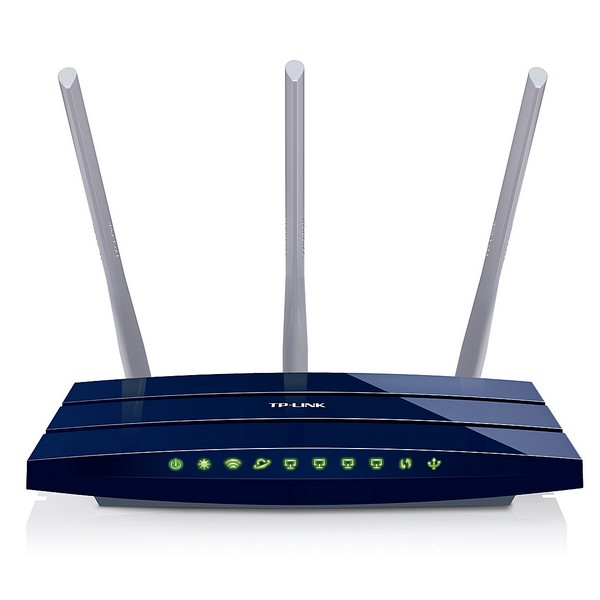

The TP-LINK Wireless N Gigabit Router TL-WR1043ND is a combined wired/wireless network connection device integrated with internet-sharing router and 4-port Gigabit switch.
Adopting advanced MIMO™ (Multi Input Multi Output) and SST™ technologies, it provides incredibly high wireless speeds of up to 300Mbps.
The TL-WR1043ND also features four Gigabit Ethernet ports for wired connections. This robust guaranteed wired/wireless throughput ensures that you are freer to simultaneously enjoy multiple high-bandwidth consuming and interruption sensitive applications such as streaming HD video, making VoIP calls, sharing large files and playing online games.
The TL-WR1043ND is specially equipped with a USB storage port on the back of the router for connecting USB storage devices, for convenient access for everyone on the network.
Software Specification
|
Standards
|
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
|
Wireless Signal Rates With Automatic Fallback
|
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
|
Frequency Range
|
2.4-2.4835GHz
|
Wireless Transmit Power (MAX)
|
20dBm(Max. EIRP)
|
Modulation Technology
|
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
|
Receiver Sensitivity
|
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
|
Hardware Specification
|
Interface
|
4 10/100/1000M LAN Ports
1 10/100/1000M WAN Port
1 USB 2.0 Port
|
Antenna
|
3dBi Detachable Omni Directional Antenna X 3 |
Power Supply Unit
|
Input: Localized to Country of Sale Output: 12VDC / 1.5A Switching PSU |
Operating temperature |
0oC~40oC (32oF~104oF) |
Storage temperature |
-40oC~70oC(-40oF~158oF) |
Relative humidity |
10% ~ 90%, Non-Condensing |
Storage Humidity |
5%~95% Non-Condensing |
Dimensions |
7.9 x 5.5 x 1.2 in. (200 x 140 x 28mm) |
Package Contents: |
1 x
|
1 x 12V/1.5A DC power Adapter for TL-WR1043ND |
1 x Ethernet connection cable (1mt )
|
1 x Quick Installation Guide
|
1 x One Resource CD , including User Guide and Other Helpful Information |
|
