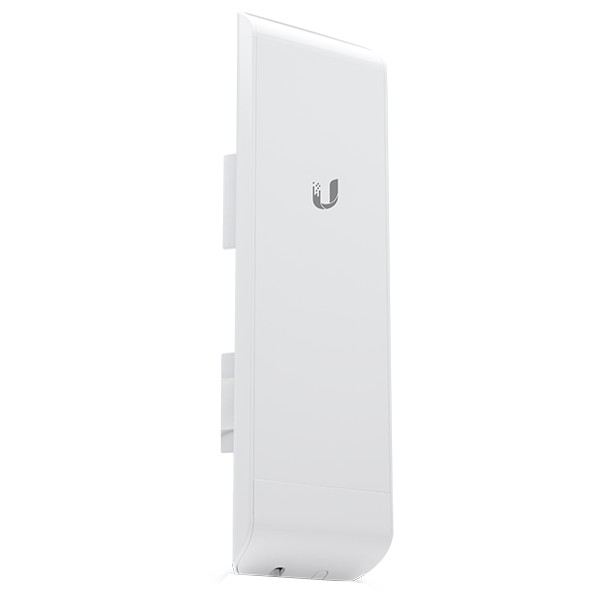

Ubiquiti NSM2, UISP airMAX NanoStation M2
[0885][NSM2]

Price: 77,52€

Order or Qty		Price
> 500€	5+	76,75€
> 1000€	10+	75,97€
> 2000€	20+	75,20€
> 5000€	40+	74,42€
> 10000€	100+	73,65€

Prices exclude VAT

In Stock: 5

Available quantity within
3-5 working days: 256

Order Qty:

UPC:	810354022517

NSM2

150+ Mbps real outdoor throughput and up to 15km+ range. Featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before.

New antenna array designs featuring 11dBi dual-polarity 11dBi at 2.4GHz wtih optimized cross-polarity isolation and in a compact form-factor.

The New NanoStation M provides a secondary ethernet port with software enabled POE output for seamless IP Video integration.

Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location.

Product Links:
Datasheet	Quick Start Guide	airOS User Quide

System Information :
Processor Specs	Atheros MIPS 24KC, 400MHz
Memory Information	32MB SDRAM, 8MB Flash
Networking Interface	2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
Regulatory / Compliance information :
Wireless Approvals	FCC Part 15.247, IC RS210, CE
RoHS Compliance	YES
Physical - Electrical - Environmental :
Enclosure Size	29.4 cm x 8 cm x 3cm
Weight	0.4kg
Enclosure Characteristics	Outdoor UV Stabalized Plastic
Mounting Kit	Pole Mounting Kit included
Max Power Consumption	8 Watts
Power Supply	24V/0.5A surge portection integrated POE adapter included
Power Method	Passive Power over Ethernet (pairs 4,5+; 7,8 return)
Operating Temperature	-30°C to +80°C
Operating Humidity	5 to 95% Condensing
INTEGRATED 2x2 MIMO ANTENNA :
Frequency Range	2.32-2.55 GHz
Gain	10.4-11.2 dBi
Polarization	Dual Linear
Cross-pol Isolation	23dB minimum
Max VSWR	1.6:1

Package Contents:
1 x NSM2
2 x Plastic Straps
1 x POE 24V/0.5A
1 x AC Cord

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	24 month(s)
