Coaxial Cable » EN-195-100

EN-195 Low Loss Cable - 100m Spool
[0934][EN-195-100]

Price: 80,00€

Order or Qty		Price
> 500€	5+	78,40€
> 1000€	10+	76,80€
> 2000€	20+	75,20€
> 5000€	40+	73,60€
> 10000€	100+	72,00€

Prices exclude VAT

No Stock

Order Qty:

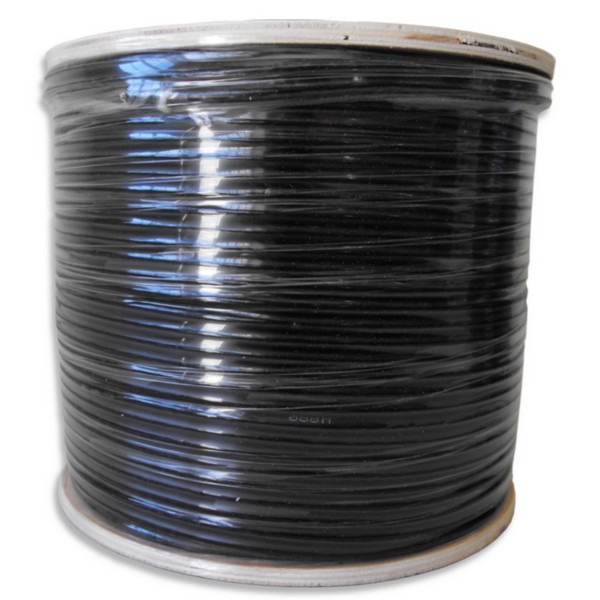

EN-195, 100 meter Spool.

EN-195 coaxial cable is designed for a wide variety of applications requiring low loss RF cable, including outdoor antenna installations and jumper cable assemblies used in wireless communications.

It is constructed with a UV resistant polyethylene jacket for outdoor use.

This cable is also designed for easy installation with maximum flexibility and bendability and is compatible with a wide variety of connectors.

Ehanced for usage from 2GHz up to 6GHz

Product Links:
Datasheet

Electrical Specifications :
Cutoff Frequency	41 GHz
Velocity of Propagation	76%
Impedance	50 ohms
Capacitance	25.4 pF/ft (83.3 pF/m)
DC Resistance Inner Conductor	7.6 ohms/1000ft (24.9 ohms/km)
DC Resistance Outer Conductor	4.9 ohms/1000ft (16.1 ohms/km))
Peak Power	2.5 kW
Jack Spark	3000 Volts RMS

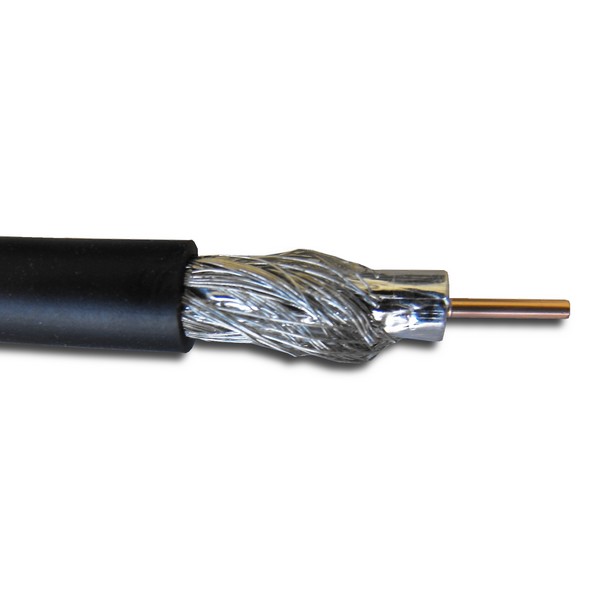

Cable Construction:
Inner Conductor	Solid Bare Copper 0.94 mm
Dielectric	Foam Polyethylene 2.79mm
Outer Conductor	Aluminum Tape 2.95mm
Capacitance	25.4 pF/ft (83.3 pF/m)
Braid	Tinned Copper 3.53mm
Jacket	Black PVC/PE. 4.95mm
Mechanical and Environmental Specifications:
Minimum Bend Radius	12.7mm
Tensile Strength	40 lb (18.2kg)
Cable Weight	0.03kg/m
Operating Temperature Range	-40°C to +85°C

Package Contents:
1 x

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
