Coaxial Cable » EN-240-100

EN-240 Low Loss Cable - 100m Spool
[1162][EN-240-100]

Price: 118,18€

Order or Qty		Price
> 500€	5+	115,82€
> 1000€	10+	113,45€
> 2000€	20+	111,09€
> 5000€	40+	108,73€
> 10000€	100+	106,36€

Prices exclude VAT

No Stock

Order Qty:

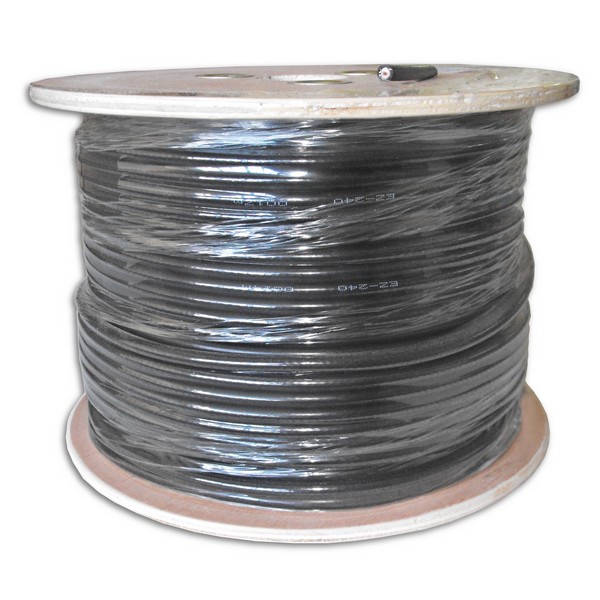

EN-240, 100 meter Spool.

EN-240 coaxial cable is designed for a wide variety of applications requiring low loss RF cable, including outdoor antenna installations and jumper cable assemblies used in wireless communications.

It is constructed with a UV resistant polyethylene jacket for outdoor use.

This cable is also designed for easy installation with maximum flexibility and bendability and is compatible with a wide variety of connectors.

Ehanced for usage from 2GHz up to 6GHz

Product Links:
Datasheet

Electrical Specifications :
Cutoff Frequency	41 GHz
Velocity of Propagation	84%
Impedance	50 ohms
Capacitance	75pF/m
DC Resistance Inner Conductor	10.50 ohms/km
DC Resistance Outer Conductor	12.76 ohms/km
Peak Power	2.5 kW
Jack Spark	3000 Volts RMS

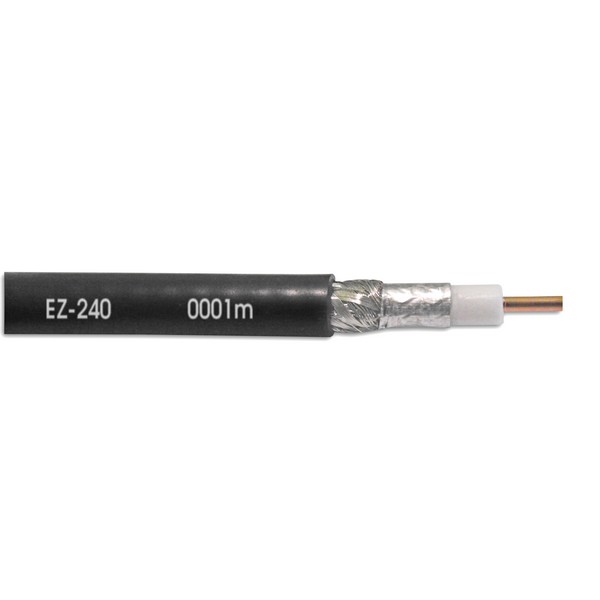

Cable Construction:
Inner Conductor	Solid Bare Copper 1.40 mm
Dielectric	Foam Polyethylene 3.60 mm
Outer Conductor	Aluminum Tape 3.90 mm
Braid	Tinned Copper. 4.60 mm
Jacket	Black PVC/PE. 6.10 mm
Mechanical and Environmental Specifications:
Minimum Bend Radius	30 mm
Tensile Strength	18.2 kg
Cable Weight	0.077kg/m
Operating Temperature Range	-40°C to +85°C

Package Contents:
1 x

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
