NL-2511-MP Prism 2.5 802.11b 200mW mPCI Card

W H I L E   S U P L I E S   L A S T   ! ! !

(E n d   o f   l i f e)

Overview

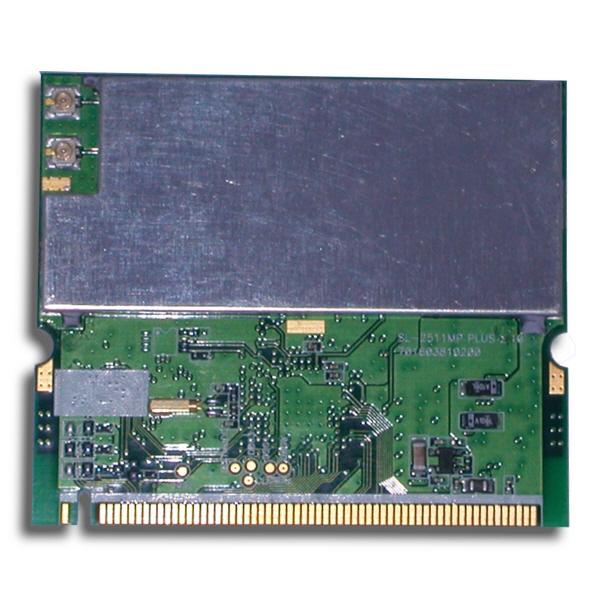

Senao offers many wireless products for your home or office needs. The NL-2511MP PLUS is a Mini-PCI card fits in most laptops, our mini-pci to pci adapters as well with our RouterBoard 230 and 220 bundles.

Two U.FL (MHF) antenna leads (WiFi compatible card does NOT include antennas)

NOTE : Pigtail sold seperately in our U.FL(MHF) pigtail section

Feature	Benefit
Up to 23dBm(200mW) RF Output Power (depends on different countries)	Long operating range, up to 3 times the range of standard products.
Wide coverage range up to 1200 meters in open space	Wireless connectivity for your computers
Flexible design for embedded system	Can be designed or embedded for OEM project/embedded system
Power Over Ethernet(POE)	Supplying power to a wireless advanced AP over an Ethernet cable
Automatic data rate scaling at 11, 5.5, 2 and 1 Mbps	Optimized throughput, range and connectivity
Improved 64/128-bit WEP Engine	Significantly improved throughput
Advanced Power Management	Extended battery life
Significantly improved indoor multipath distortion	Higher link quality in indoor environment

Datasheet
