NF-8209S PoE, Length, Wattage and Cable Tester - RJ45
[3212][NF-8209S]
Price: 77,74€
 Order or Qty  Price
 > 500€  5+   76,19€
 > 1000€  10+   74,63€
 > 2000€  20+   73,08€
 > 5000€  50+   71,52€
 > 10000€  100+   69,97€
Prices exclude VAT

NF-8209S PoE, Length, Wattage and Cable Tester - RJ45

No Stock
Order Qty:
UPC:793288639603

NF-8209S - an advanced device for comprehensive network wiring tests.

NF-8209S is a new generation to offer digital and analog signaling all in one network toner and probe.

It has three modes for options to track cable like digital mode, analog mode and PoE mode. That means its equipped with the most powerful cable location technologies for any work environment.

Also, it includes cable length measurement , cable faults testing, PoE testing, hub blink and NCV function, all these makes it a must-tool for cabling engineers.

Features:

  • Dual scan modes selectable: AC filter & Non AC filter.
  • Detect AC voltage presence (70V-1000V).
  • Test physical status for STP, UTP lan cable.
  • Measure cable length accurately , the range is 500m.
  • Hub blink for locating network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch.
  • PoE testing : identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard).
  • Quallity verify the crimping.
Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard

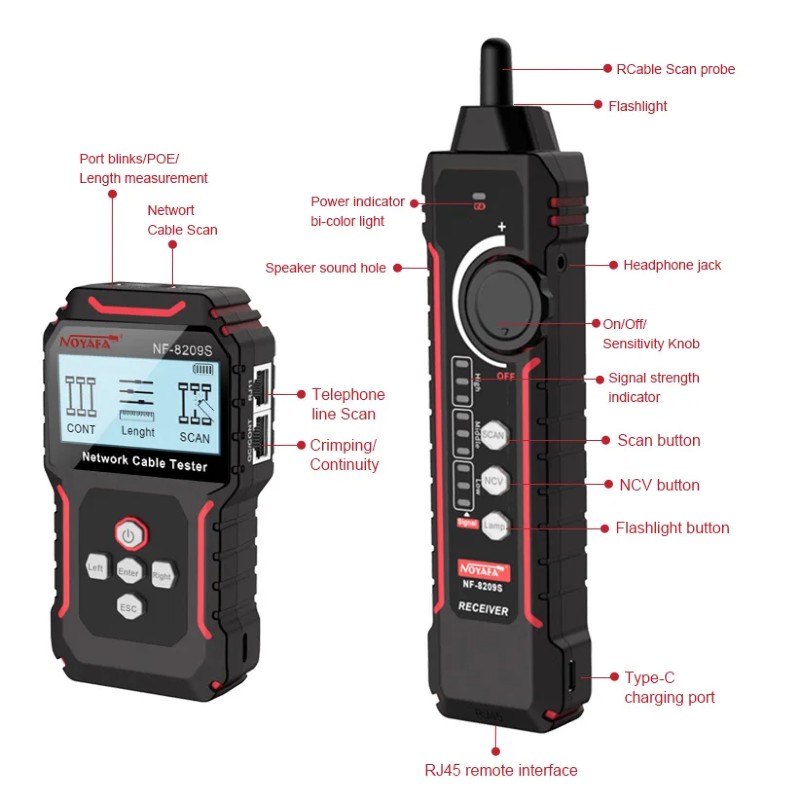

Trasmitter
Wiremap Cable type CAT5、CAT6 (STP & UTP)
Test with switch directly Yes
Max range 600m
Length Cable type CAT5、CAT6 (STP & UTP)
Test range 2~300m
Accuracy ±1.6m
  Breakage location Yes
Scan Cable type CAT5、CAT6 (STP & UTP)
Max. signal voltage 8Vp-p
Frequency 455KHz
AC filter Yes
Max range 600m
POE Test range DC 5~60V - 802.3af/at PoE - Pasive PoE
Voltage display Yes
PSE type IEEE 802.3af/at
LCD display 128*64 Dot-matrix with backlight
Auto-off time 15min、30min、60min、OFF
Voltage protection DC48V 5mA
Max working current <150mA
Receiver
Sentivity adjustable Yes
AC Voltage detecting Yes
Lamp Yes
Max working current <100mA
Remote
Wiremap Port RJ45
Voltage protection DC48V 5mA

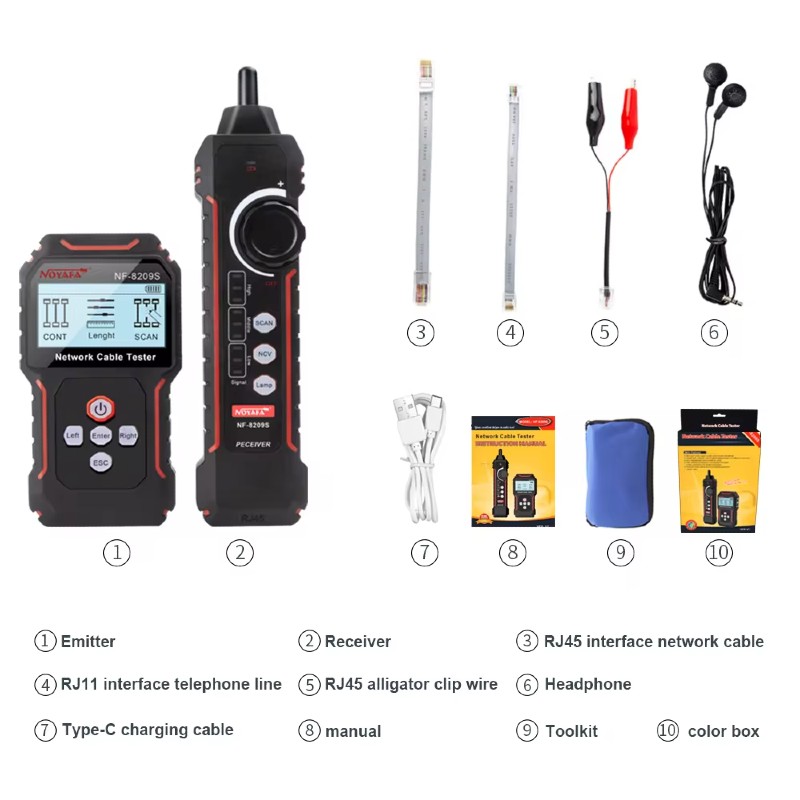

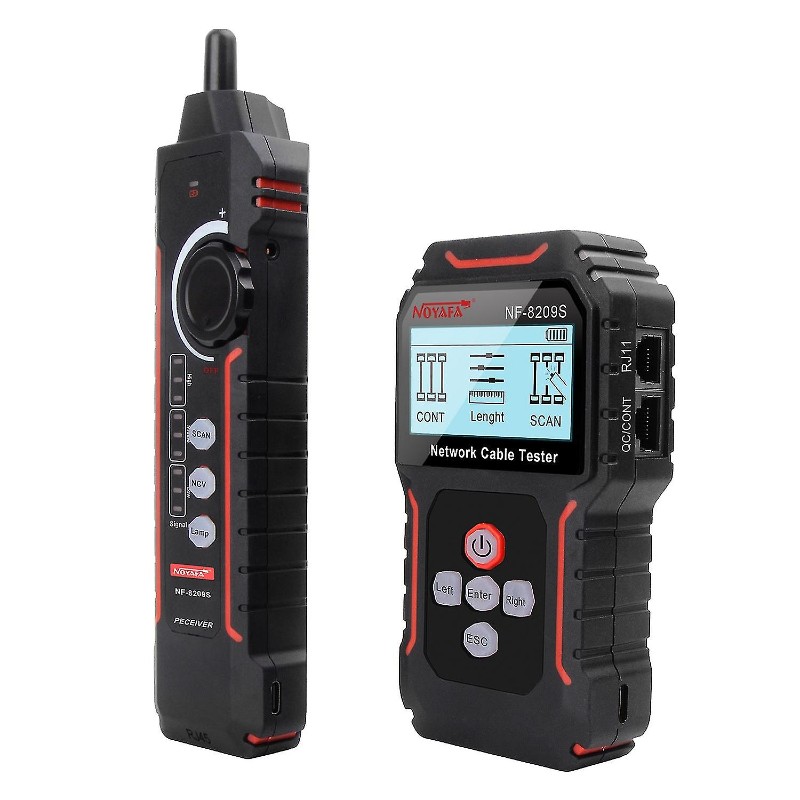

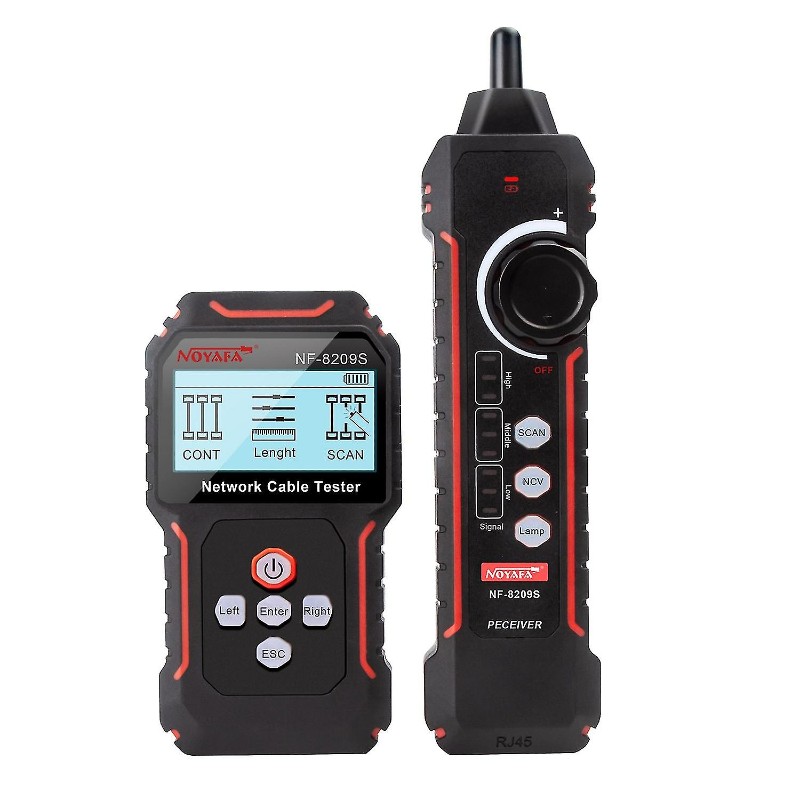

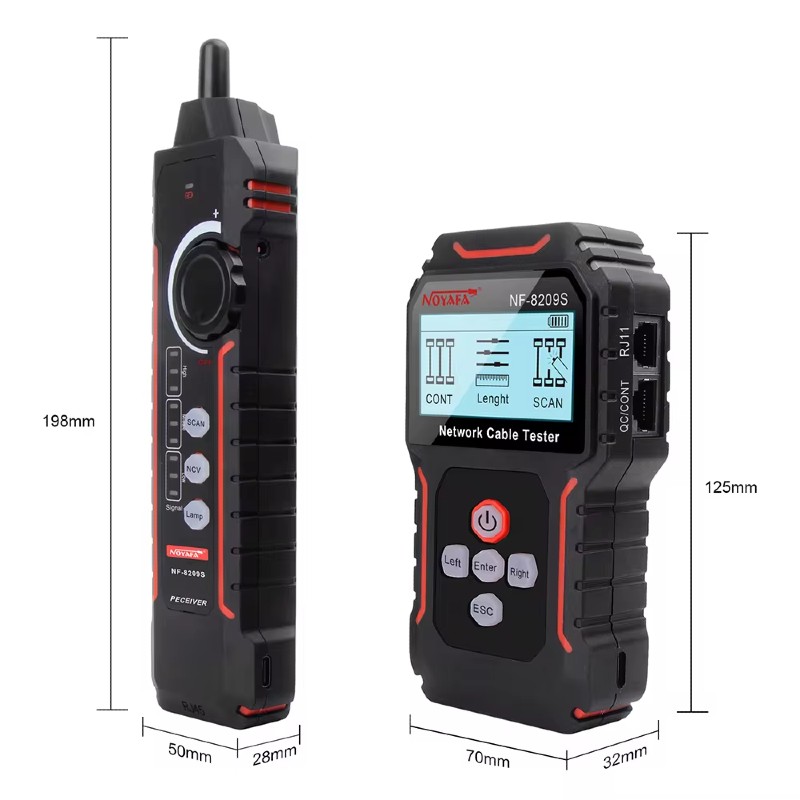

Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
