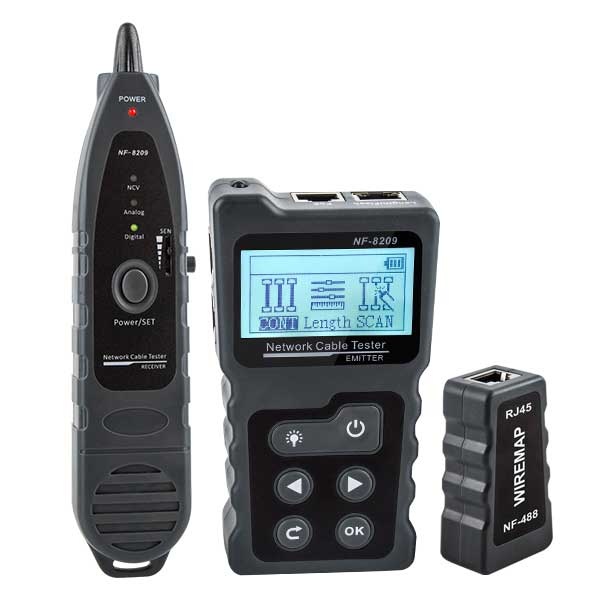

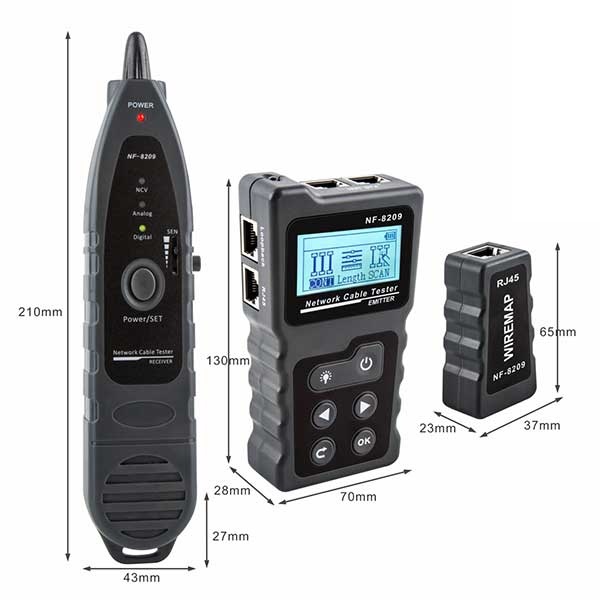

NF-8209 is a new generation to offer digital and analog signaling all in one network toner and probe.
It has three modes for options to track cable like digital mode, analog mode and PoE mode.
It is equipped with the most powerful cable location technologies for any work environment.
It also includes cable length measurement , cable faults testing, PoE testing, hub blink and NCV function, all these makes it a must-tool for cabling engineers.
Product Operation
1. Continuity - Test open, short, cross,ect for STP, UTP cable.
2. Length – Measure length of lan cable, range is 2.5m~200m.
3. Scan – Analog/Digital/ PoE mode to locate lan cables.
4. PoE - Available for standard or non-standard PoE switch (5~60V), identify AT or AF standard of PSE type.
5. Flash - Locate network port by the flashing port light on switch/ router.
|

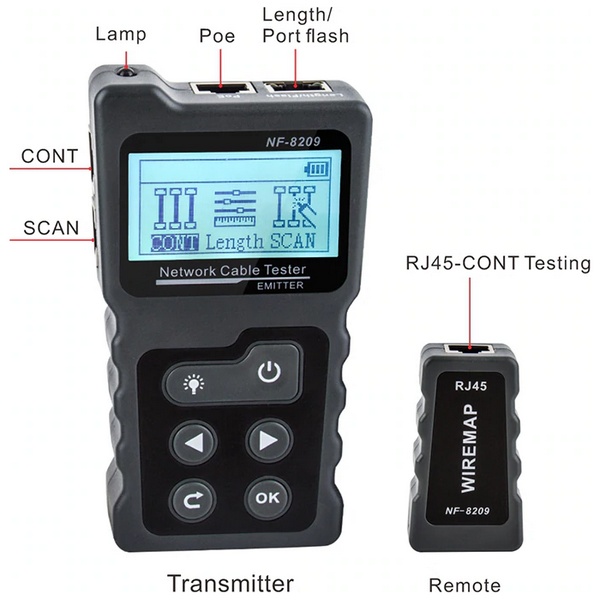

Trasmitter |
|
Wiremap |
Cable type |
CAT5、CAT6 (STP & UTP) |
|
Test with switch directly |
Yes |
|
Max range |
600m |
|
Length |
Cable type |
CAT5、CAT6 (STP & UTP) |
|
Test range |
2~200m |
|
Accuracy |
±1.6m |
|
|
Breakage location |
Yes |
|
Scan |
Cable type |
CAT5、CAT6 (STP & UTP) |
|
Max. signal voltage |
8Vp-p |
|
Frequency |
130KHz |
|
AC filter |
Yes |
|
Max range |
600m |
|
POE |
Test range |
DC 5~60V - 802.3af/at PoE - Pasive PoE |
|
Voltage display |
Yes |
|
PSE type |
IEEE 802.3af/at |
|
LCD display |
128*64 Dot-matrix with backlight |
|
Power supply |
AAA*3 (Not included) |
|
Low battary warning |
2.7V |
|
Auto-off time |
15min、30min、60min、OFF |
|
Voltage protection |
DC48V 5mA |
|
Max working current |
<150mA |
|

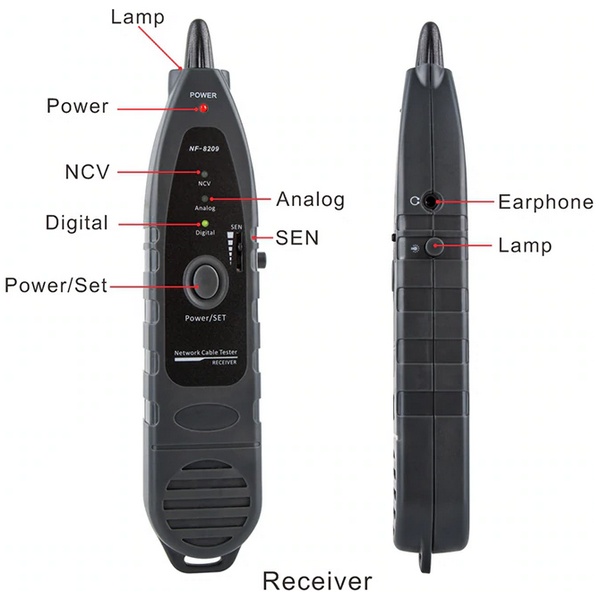

Receiver |
|
Sentivity adjustable |
Yes |
|
AC Voltage detecting |
Yes |
|
Lamp |
Yes |
|
Battery type |
9V*1 (Not included) |
|
Low battary warning |
6± 0.5V |
|
Max working current |
<100mA |
|
Remote |
|
Wiremap Port |
RJ45 |
|
Voltage protection |
DC48V 5mA |

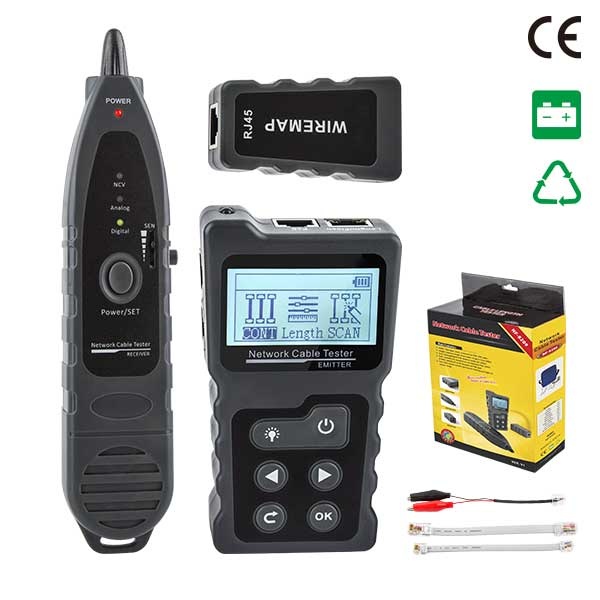

| Package Contents: |
|---|
| 1 x NF-8209 Main device
|
| 1 x NF-8209 Ρεψειωερ device
|
| 1 x NF-488 remote device
|
| 1 x Network Cable Adapter
|
| 1 x User Manual |
|
