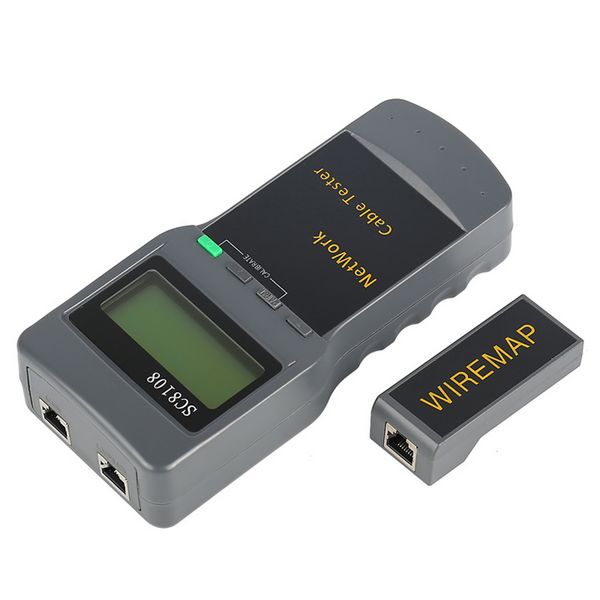

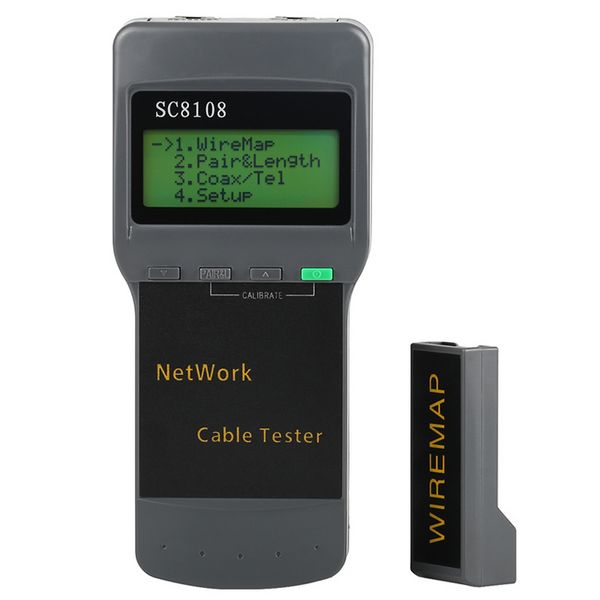

SC-8108 Network Cable Tester CAT5 RJ45 + Wiremap for Measuring Open Short Circuit
Measure network cable length and determine the distance of open and short circuit.
Check wiring error in 5E, 6E, such as open circuit,short circuit, jumper wire, reverse connection.
With 1 remote identifier , more easy to work.
Portable unit with long battery life (wait-case 50 hours).
Automatically time-delay shut off.
Selfchecking and automatically compensate any change in battery capacity or ambient temperature.
|
Specifications: |
|
Indictor |
LCD 53x25 mm |
|
Tone frequency |
225 Hz |
|
Max. distance of cable map |
300m |
|
Max. working current |
Less than 70mA |
|

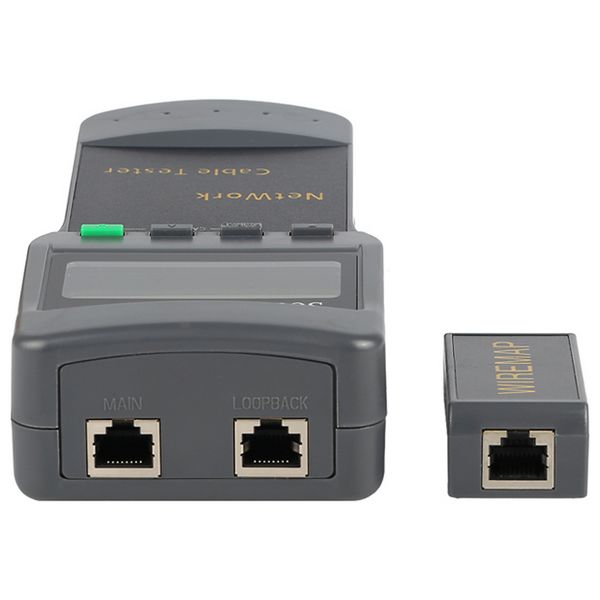

Compatible connectors |
RJ45 |
|
Faults LCD display |
LCD display |
|
Low battery display |
LCD ( 6.5V) |
|
Voltage protection |
AC 60V/DC 42V |
|

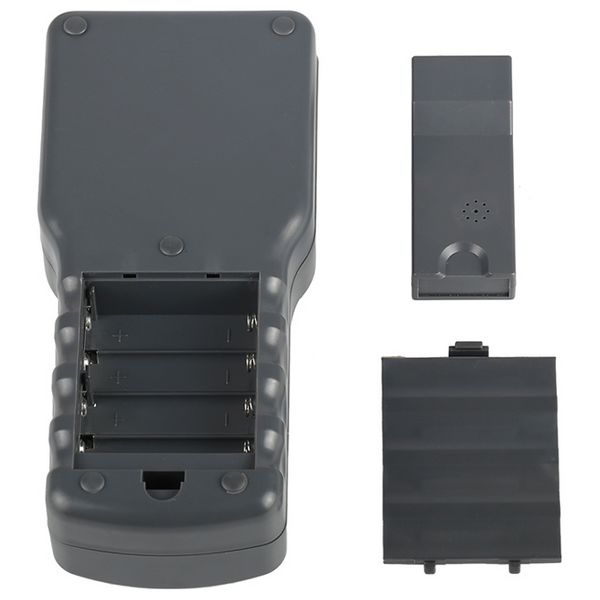

Battery Type |
4 x AA (not included) |
|
Dimension(LxWxD) |
184x84x46mm |
|
Remote unit specifications |
|
Compatible connectors |
RJ45 |
|
Remote units |
1 |
|
Dimension(LxWxD) |
78x33x22mm |
| Package Contents: |
|---|
| 1 x Cable tester
|
| 1 x Remote unit
|
| 0 x Without Battery |
|
