JZ-3W05, 85~265V AC to 5V 3.5W DC Isolated Power Supply Module - DIP
[3324][JZ-3W05]

Price: 1,55€

Order or Qty		Price
> 500€	5+	1,52€
> 1000€	10+	1,49€
> 2000€	20+	1,46€
> 5000€	40+	1,43€
> 10000€	100+	1,40€

Prices exclude VAT

In Stock: 20

Order Qty:

UPC:	728615668513

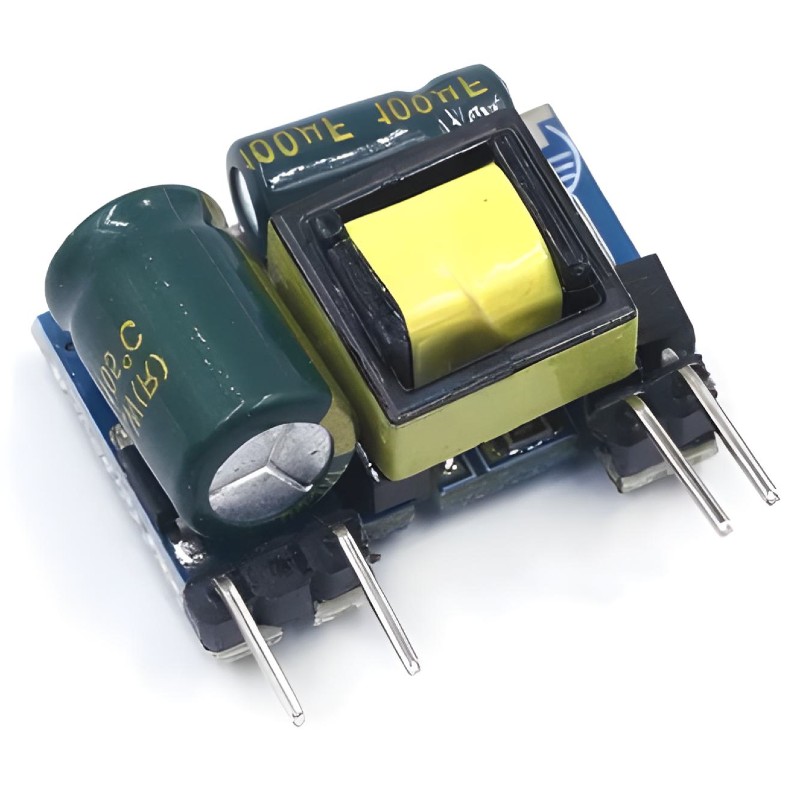

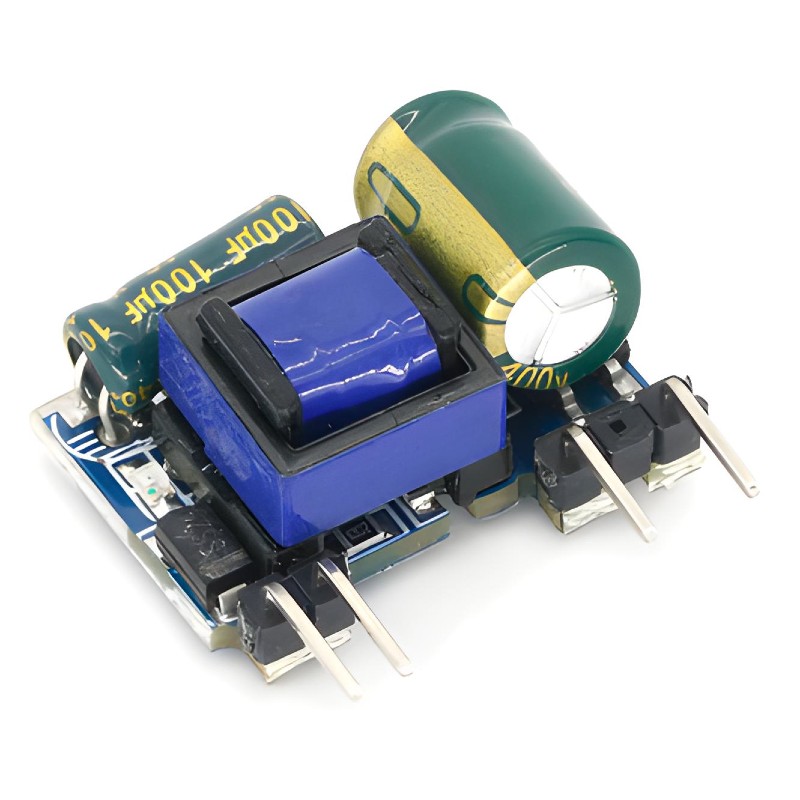

JZ-3W05 - Versatile switching power supply open type with the output voltage of 5 V and a current of 0.6A.

The JZ-3W05 has a wide input voltage range from 50 to 277 V , which allows it to be used both for solving domestic problems and for industrial applications.

Product features:

Ultra-thin, ultra-small
Isolated Switching Power Supply
All voltage input (AC: 85 ~ 265V)
DC voltage output 5v, 30W Output
Low ripple and low noise
High efficiency, high power density
Low power consumption, environmental protection, no-load loss <0.1W

Specifications:
Product Code	JZ-3W05
AC Input Voltage Range	AC 50V-277V
DC Input Voltage Range	DC 70V-390V
Output voltage	5 V ±0.15 V
Output current	up to 600mA
No-load power	<0.05W
Power at full load	<3.5 W
Operation indicator	LED
Efficiency	~80%
Protection	overvoltage overcurrent overheating overload short circuit
Weight	6g

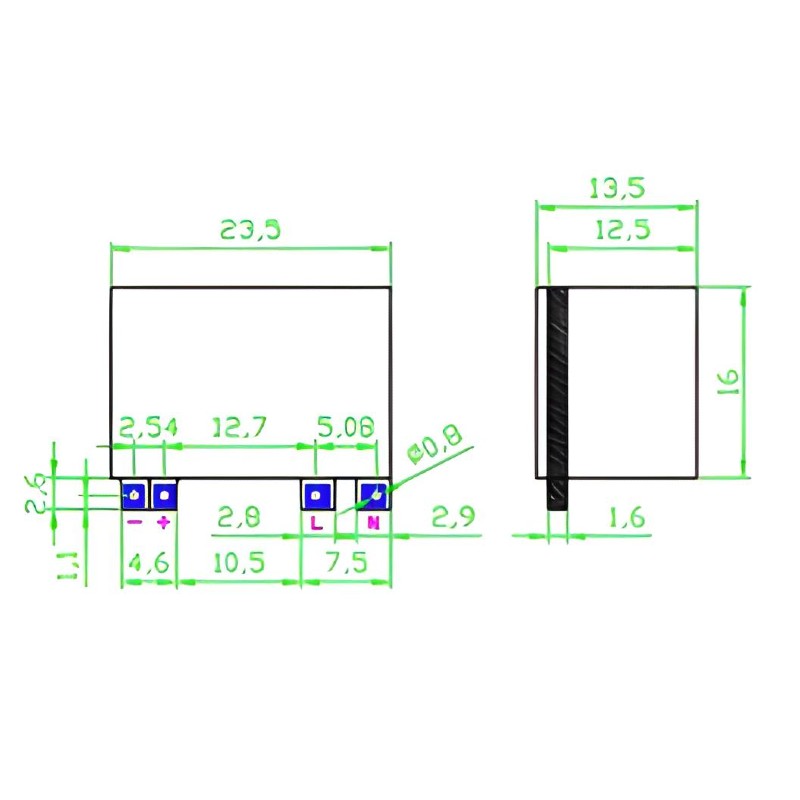

Dimentions (X:Y:Z)	18.1x23.5x12.4mm
