24v 2A Power Supply Desktop US type
[1744][EZWS2420U]
The product is
no longer available
Prices exclude VAT

24v 2A Power Supply Desktop US type

24v 2A Power Supply Desktop US type :

Output: 24V DC / 2000mA, 2.1 mm DC jack.
Input: 100 - 240VAC, 47 - 63 Hz, CE / UL / GS.

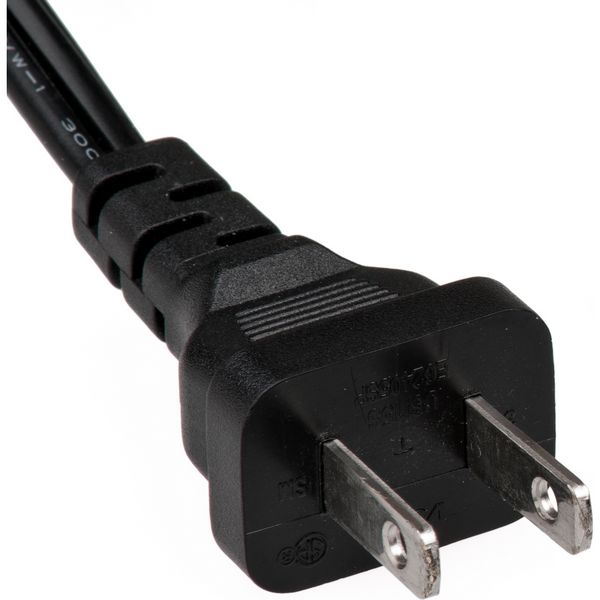

AC Prongs : US type
Origin: China

Specifications:
Input Condition AC100~240V 50/60Hz  0.6A max
Input Rated Voltage 100Vac~200Vac
Input Voltage Rate 90Vac~264Vac
Input Rated Frequency 50/60Hz
Input Frequency Range 47Hz~63Hz
Input Current 0.6A Max
Input Inrush Current 30A Max
Input No Load Power Consumption 0.5 Watt Max @ 115Vac/230Vac
Efficiency 80% Min
Rated Output Voltage & Current 24v/2A
Output Line Regulation +-1%
Output Load Regulation +-5%
Output Over Shoot 10% Max
Output Ripple and Noise 1% Max
Output Rising Time 20ms Max @ 115Vac
Output Hold-Up Time 8ms Min @ 230Vac
Protection OCP OVP SCP OPP
Dielectric Withstand Voltage 3KV 5mA 60s
Leakage Current 0.25mA @ 230Vac
DC Plug Specification 5.5x2.1x11mm
Dimension 33x99x53mm
DC Cable Length 100cm
AC Cable Length 40cm
Operating Temperature Range 0oC~40oC
Storage Temperature Range -20oC~+85oC


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
