Aerial.net :: Ubiquiti TC-Pro, TOUGH Cable Level 1, 305m box

RJ45 / Ethernet » TC-Pro

Ubiquiti TC-Pro, TOUGH Cable Level 1, 305m box
[1234][TC-Pro]

The product is
no longer available

Prices exclude VAT

UPC:	810354021367

TC-Pro

Protect your networks from the most brutal environments with Ubiquiti’s industrial-grade shielded ethernet cable, TOUGHCable.

Dramatically improve your ethernet link states, speeds, and overall performance.

TOUGHCables have been built to perform even in the harshest weather and environments.

Protect your networks, eliminate ESD attacks and ethernet hardware damage.

TOUGHCables have been developed to have increased power handling performance for extended cable run lengths.

Product Links:
Datasheet	Quick Start Guide

Specifications:

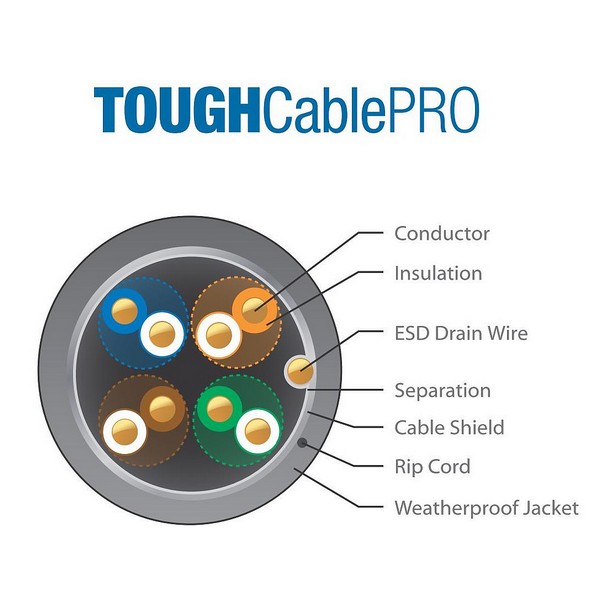

Cable:	CAT5e, Shielded
Ethernet Support:	Up to 1 Gbps
Conductor Wire:	Gauge 24 AWG
Conductor Solid:	bare copper
Conductor Diameter:	0.500±0.005 mm
Insulation Type:	Solid PE
Insulation Thickness:	AVG: 0.26mm, MIN: 0.25 mm
Insulation Diameter:	1.04±0.03 mm
Separation (Polyester Wrapping):	Thick: 0.025mm, Extent: 20 mm
Anti-Crosstalk Divider:	None
Cable Shield (Aluminum Foil):	Thick: 0.060 mm, Extent: 18 mm
ESD Drain Wire:	0.4 CCS
Rip Cord:	Yes
Jacket Material:	PE
Jacket Thickness:	AVG: 0.50mm, MIN: 0.46 mm
Jacket Outer Diameter:	6.0±0.30 mm
Jacket Color:	Gray
Reference Standard:	ISO/IEC 11801, TIA/EIA568B.2

Package Contents:
1 x TC-Pro

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	24 month(s)
