Antenna 5.xGHz » AF-5G30-S45

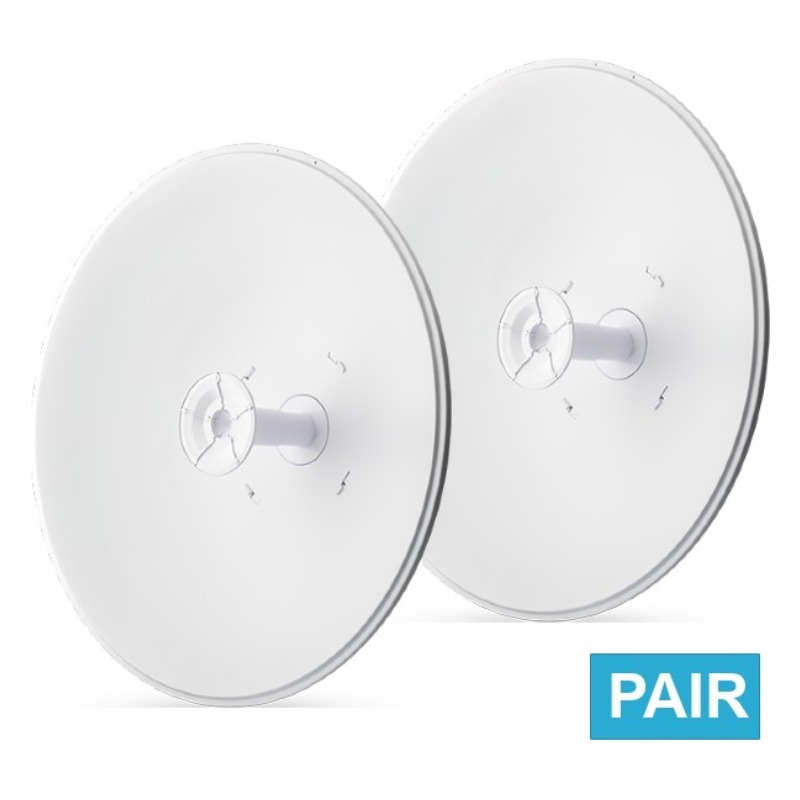

Ubiquiti AF-5G30-S45, 5 GHz airFiber Dish, 30 dBi, Slant 45 - Pair
[1646][AF-5G30-S45]
Price: 226,81€
 Order or Qty  Price
 > 500€  5+   224,54€
 > 1000€  10+   222,28€
 > 2000€  20+   220,01€
 > 5000€  40+   217,74€
 > 10000€  100+   215,47€
Prices exclude VAT

Ubiquiti AF-5G30-S45, 5 GHz airFiber Dish, 30 dBi, Slant 45 - Pair

In Stock: 1

Available quantity within
3-5 working days: 76
Order Qty:
UPC:810354022005

AF‑5G30‑S45

The airFiber X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point bridging.

The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.

The airFiber X Antennas are designed to integrate seamlessly with the airFiber X radios.

The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high‑capacity, multipoint networks.

Connectors and Interfaces:
Rocket kit:  Yes
RF connectors:  (2) RSMA female
Physical characteristics:
Antenna design:  Parabolic
Wind load:  200 km/h
Purpose:  Outdoor
Weight:  7,4 kg
Depth:  386 mm
Width:  650 mm
Height:  650 mm
Wireless features:
Cross-Pol Isolation:  35 dB
MIMO, SISO:  2 x 2 (slant)
Polarization:  VH (slant)
F/B ratio [dB]:  30 dB
VSWR:  < 1,6
Wireless frequency:  5 GHz
Beam angle - H. pol. :
Beam angle - V. pol. :
Type of antenna:  Directional
Antenna gain:  30 dBi


Additional Images:



Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
