Refurbished

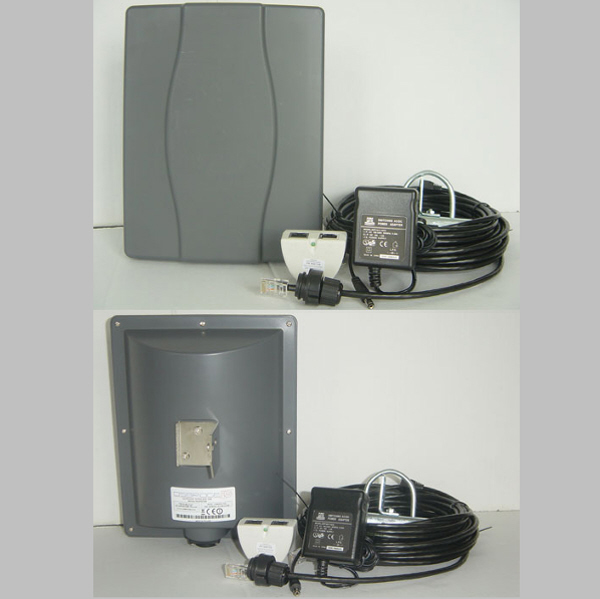

Point to Multipoint Outdoor Wireless Bridge/Router (802.11b/g) operating in 2.4 GHz frequency range. The device comes with built in 13dBi Panel Antenna.
|
Interface |
|
Ethernet Interface |
100 base-T Ethernet (RJ-45) with PoE |
|
Wired LAN Protocol |
IEEE 802.3 (CSMA/CD) |
|
Wireless Interface |
Integrated Panel Antenna, V or H Polarized |
|
Wireless LAN Protocol |
IEEE 802.11b, IEEE 802.11g |
|
Radio |
|
Frequency
|
2400 – 2483,5 MHz, 13 Channels
|
|
Modulation Technique
|
DSSS (CCK, DQPSK, DBPSK), OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
|
|
Channel Width
|
User Selectable - 802.11a: 20 MHz, 10 MHz or 5 MHz, 802.11a Turbo: 40 MHz
|
|
Output Power
|
OSBRiDGE 24XLGi
|
|
ETSI:
FCC, Africa:
|
< 20 dBm EIRP
< 25 dBm EIRP
|
|
Bit Data Rate (Mbps)
|
54
|
48
|
36
|
24
|
18
|
12
|
9
|
6
|
|
Rx Threshold dBm
(including antenna)
|
-83
|
-84
|
-86
|
-88
|
-91
|
-93
|
-95
|
-101
|
|
System |
|
Processor |
Realtek RTL8186 200MHz MIPS |
|
Memory |
2MB NOR FLASH, 16MB SDRAM |
|
RF Module |
RTL8225 |
|
Software |
|
Wireless Operating Modes: |
Access Point, Access Point Client, WDS |
|
IP Operating Modes: |
Bridge, Router, NAT Router |
|
Physical |
|
Dimensions |
140 mm X 195 mm X 70 mm |
|
Operating/Storage Temp. |
-40ºC - +60ºC / -40ºC - +75ºC |
|
Enclosure |
Outdoor Mountable, Weather Protected |
|
Power Adapter |
Included 12V/1.2A DC, Active Ethernet (Power over Ethernet injector included) |
|
LEDs |
3 - Power, Ethernet LAN Activity, Wireless Activity |
|
Antenna |
|
Type |
13dBi Flat Panel Antenna |
|
Built-in Antenna Patterns |
E-Plane H-plane
|
|
Regulatory Compliance |
|
CE mark, ETSI EN 301 893 Compliant, FCC Part 15 Compliant |
|
Warranty |
|
One year, limited |
|
