14dBi 2.4GHz Directional Antenna RP-SMA connector
[0723][TL-ANT2414A]

The product is
no longer available

Prices exclude VAT

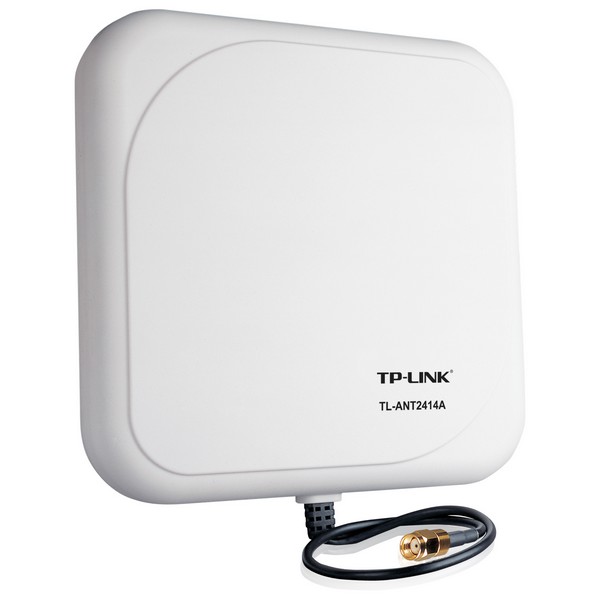

14dBi 2.4GHz Outdoor Directional Antenna

What This Product Does
Directional Antenna TL-ANT2414A operates in the 2.4GHz band and provides 14dBi directional operation, which largely extends the wireless range and delivers much better wireless performance. The antenna offers the RP-SMA female connector guaranteeing wider compatibility with most of the wireless equipments.

Enjoy the benefits of wireless connectivity at greater distances and throughput throughout your indoor wireless zone. No configuration or installation software required.

Easy To Use

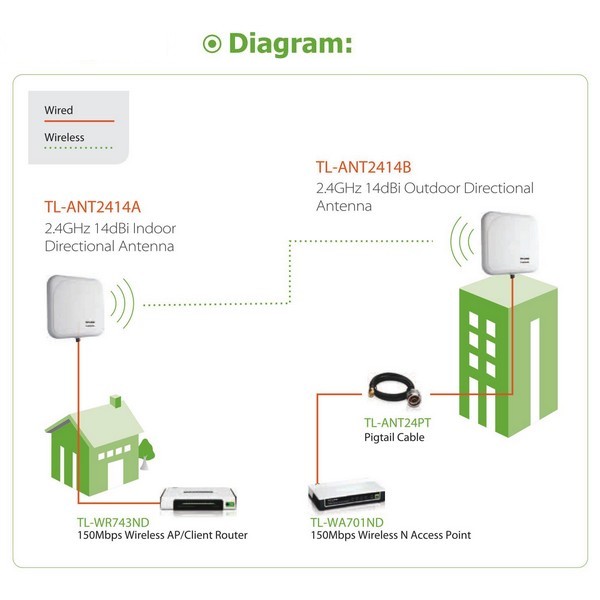

Installation of the TL-ANT2414A is simple and straight forward. It is compatible with most wireless devices (Access Points, Routers, Bridges and Network Adapters) on the market with removable external antennas.

Features:
* Compliant with 802.11n/b/g (2.4GHz)
* 14dBi signal gain
* RP-SMA Female connector
* 100cm low loss CFD-200 cable

Product Links:
Product page	Datasheet	Quick Install Guide

Specifications
Frequency Range	2.4GHz~2.5GHz
Impedance	50 Ohms
Gain	14 dBi
VSWR	1.92 : 1 Max
Polarization	Linear, Vertical

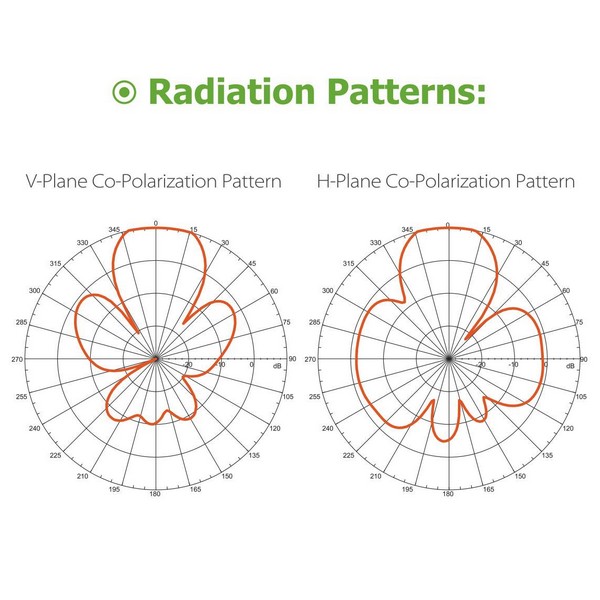

Beamwidth (HPBW)	Horizontal: 30, Vertical: 30
Connector	RP-SMA Male (Female thread/Female Center Pin)
Cable	100cm CFD-200
Radiation	Directional
Application	Indoor / Outdoor
Mount Style	Pole Mount / Wall Mount
Dimensions (L x W x H mm)	240 x 240 x 40 mm
Operating Temperature	-10C~60C (14F~140F);
Storage Temperature	-40C~80C (-40F~176F)
Operating Humidity	10%~90% non-condensing
Storage Humidity	5%~90% non-condensing
Safety, Emission and others	CE, FCC, Compliant with RoHS

Package Contents:
1 x
1 x Mounting kit
1 x User's Guide

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
