Wave-MLO5 - High-performance dual 5 GHz WiFi radios "WiFi 7-based" with Multi-Link Operation (MLO) technology for enhanced throughput and reliable connectivity.

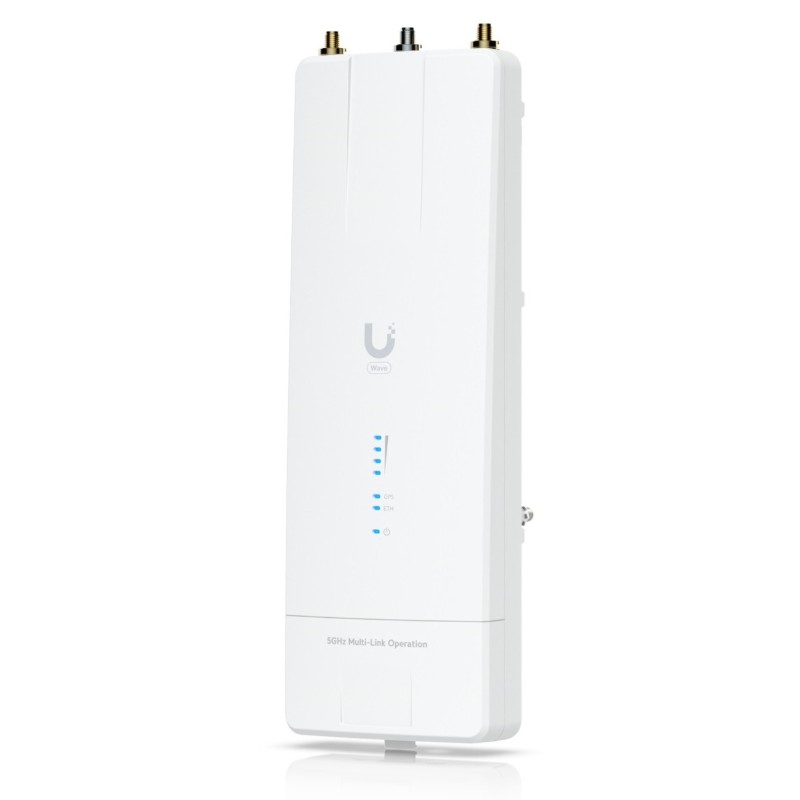

The Ubiquiti Wave MLO5 (Wave-MLO5) is a next-generation wireless device engineered for high-speed connectivity over long distances.
Operating in the 5 GHz frequency band, it enables a link range exceeding 100 kilometers, making it a reliable solution for point-to-point (PtP) and point-to-multipoint (PtMP) applications.
This makes it ideal for rural broadband expansion, enterprise networks, and service providers looking to establish high-capacity wireless links.
With a maximum throughput exceeding 5 Gbps, the Wave MLO5 ensures rapid and reliable data transmission, minimizing latency and packet loss.
Its advanced Multi-Link Operation (MLO) technology allows multiple simultaneous connections, improving bandwidth efficiency and redundancy.
Whether used in industrial deployments or commercial setups, this device delivers superior performance in demanding network environments.
|
Mechanical |
|

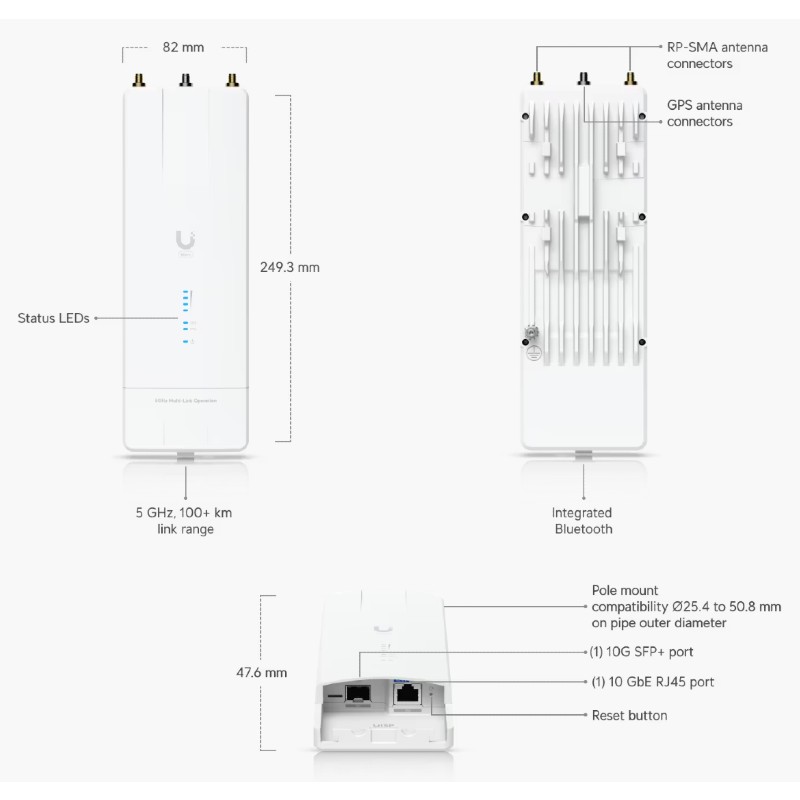

Dimensions |
249.3 x 82 x 47.6 mm |
|
Weight |
575 g |
|
Enclosure material |
Aluminum alloy, UV-resistant polycarbonate |
|
Mount material |
Strap: stainless metal
Universal bracket: UV-resistant polycarbonate |
|

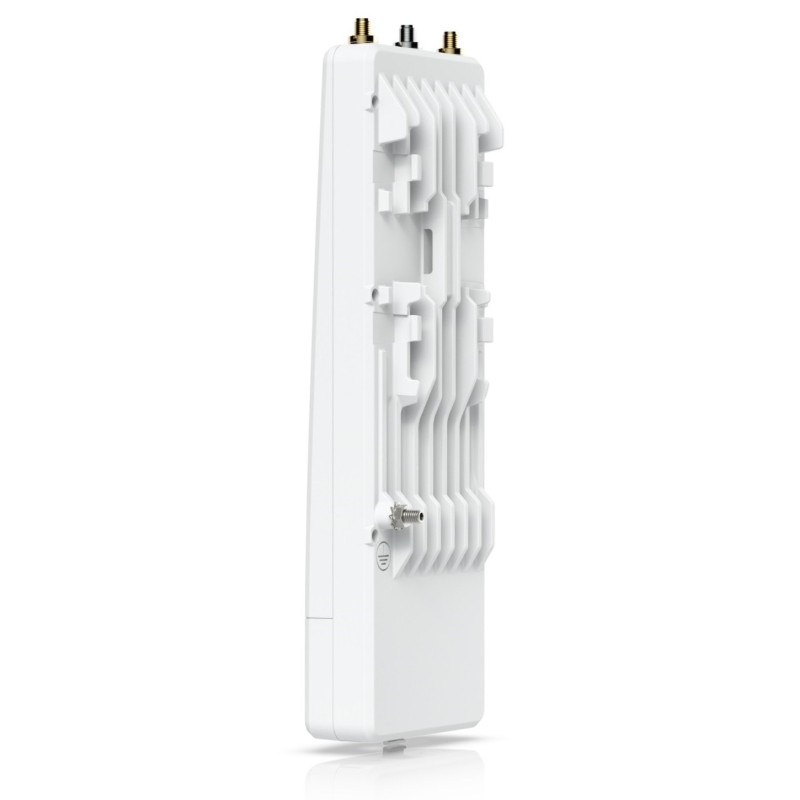

Pole mount diameter |
25.4 to 50.8 mm on pipe outer diameter |
|
Weatherproofing |
IPX6 |
|
Hardware |
|
Processor |
Quad-core IPQ5322 at 1.5 GHz |
|
Memory |
DDR4 1 GB |
|

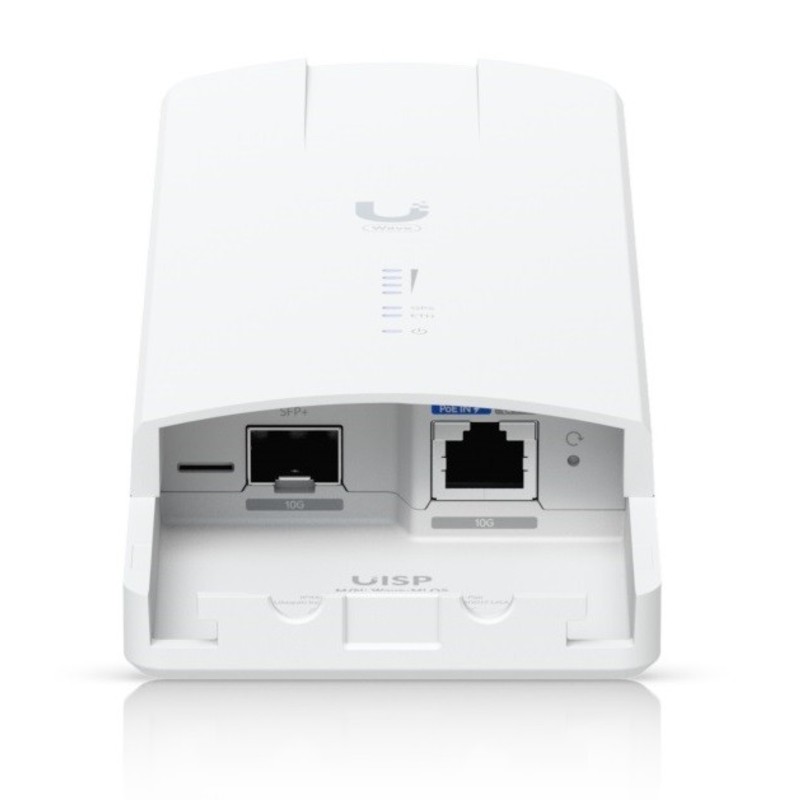

Networking interface |
(1) 10 GbE RJ45 port
(1) 10G SFP+ port |
|
RF connectors |
(2) RP-SMA (Waterproof)
(1) GPS (Waterproof) |
|
Max. power consumption |
20W |
|
Power method |
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
|
Power supply |
54V DC, 0.56A, 10 GbE PoE adapter (Included) |
|
Supported voltage range |
44–54V DC
22–27V DC |
|
Max. TX power* 5 GHz |
24 dBm *Depends on regulatory region. |
|
MIMO 5 GHz |
(2) 2 x 2 |
|
GPS |
Yes |
|
Button |
(1) Factory reset |
|
LEDs |
(1) Power, (1) Ethernet, (1) GPS, (4) signal |
|
Ambient operating temperature |
-40°C to 60°C |
|
Ambient operating humidity |
5 to 95% noncondensing |
|
Certifications |
FCC, IC, CE |
|
Software |
|
Operating mode |
PtP |
|
Services |
UISP, ping watchdog, NTP client |
|
Tools |
Alignment, speed test, ping, traceroute, discovery, site survey |
|
Network |
Bridge mode |
|
Total throughput |
5+ Gbps |
|
Max. range |
100 km (Depending on environmental conditions) |
|
Encryption |
WPA3-PSK (AES) |
|
RF |
|
Operating frequency* |
5180 – 5320, 5500 – 5700, 5745 – 5825 MHz *Depends on regulatory region. |
|
Channel bandwidth |
Radio 1: 20, 40, 80, 160 MHz
Radio 2: 20, 40, 80, 160, 240 MHz |
|
Modulation |
BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾)
64QAM (⅔), 64QAM (¾) 64QAM (⅚), 256QAM (¾), 256QAM (⅚)
1024QAM (¾), 1024QAM (⅚), 4096QAM (¾), 4096QAM (⅚) |

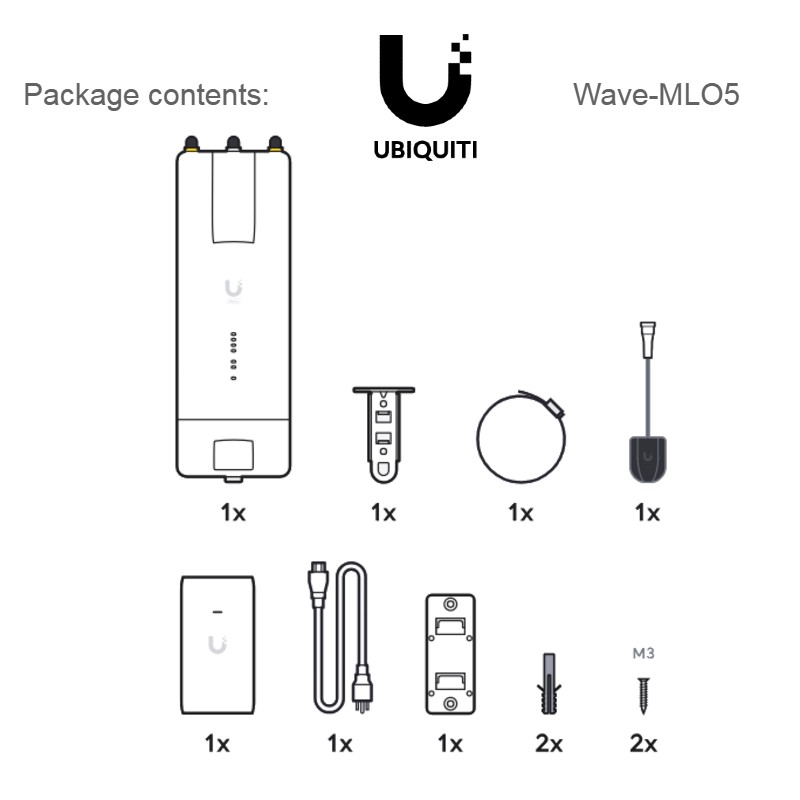

| Package Contents: |
|---|
| 1 x Wave-MLO5
|
| 1 x 10G PoE adapter 54V / 0.56A
|
| 1 x AC Cable
|
| 1 x ΡοΕ mount
|
| 1 x GPS antenna
|
| 1 x Antenna mount
|
| 2 x M3 screw kit |
|
