Aerial.net :: ESP8266 WiFi 1xRelay, 1xDI module, 5v-30v input

HW-622

ESP8266 WiFi 1xRelay, 1xDI module, 5v-30v input
[2975][HW-622]

The product is
no longer available

Prices exclude VAT

UPC:	796753378410

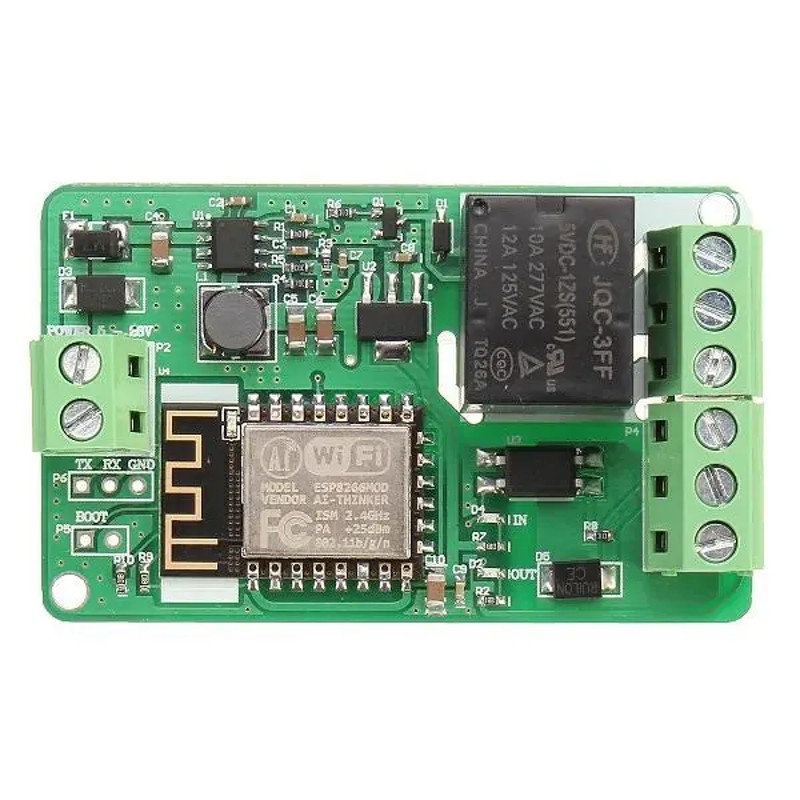

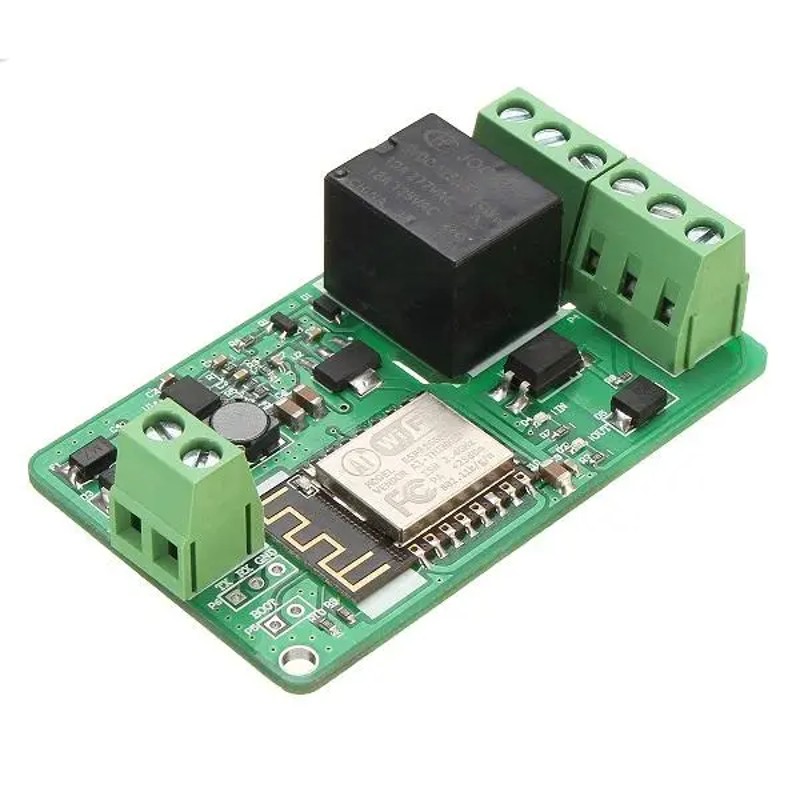

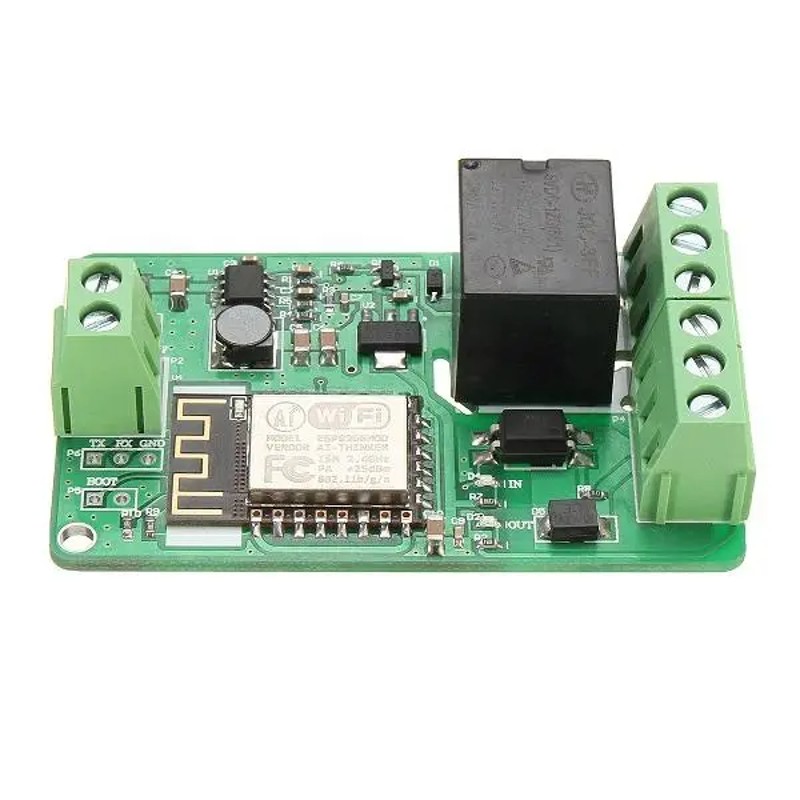

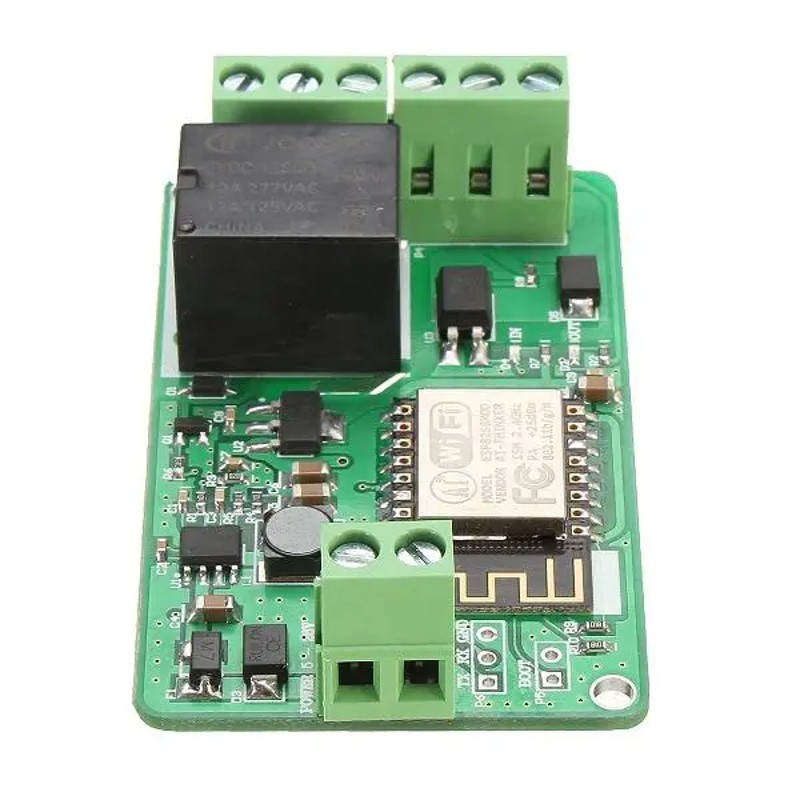

HW-622 - ESP8266 Wifi Relay module, 4-layers board design

Wide DC Input 7v to 30v

Safe with relay PCB pin anti-climb design.

One output status indicator, one input status indicator.

220V 10A relay, NO-COM-NC

One way optocoupler isolation input, TVS input protection.

Input overvoltage protection, input with TVS, when voltage exceeds 33V, automatic protection will operate.

Product Links:
Blog	Schematic

Specifications:
Part #	HW622 YunShan
Frequensy	2.4GHz
Power Amplifier	+25dBm
Relay voltage	220V
Relay Current	10A
Input voltage	7-30v DC
Input overvoltage protection	Yes
Input overcurrent protection	Yes
Color	Green

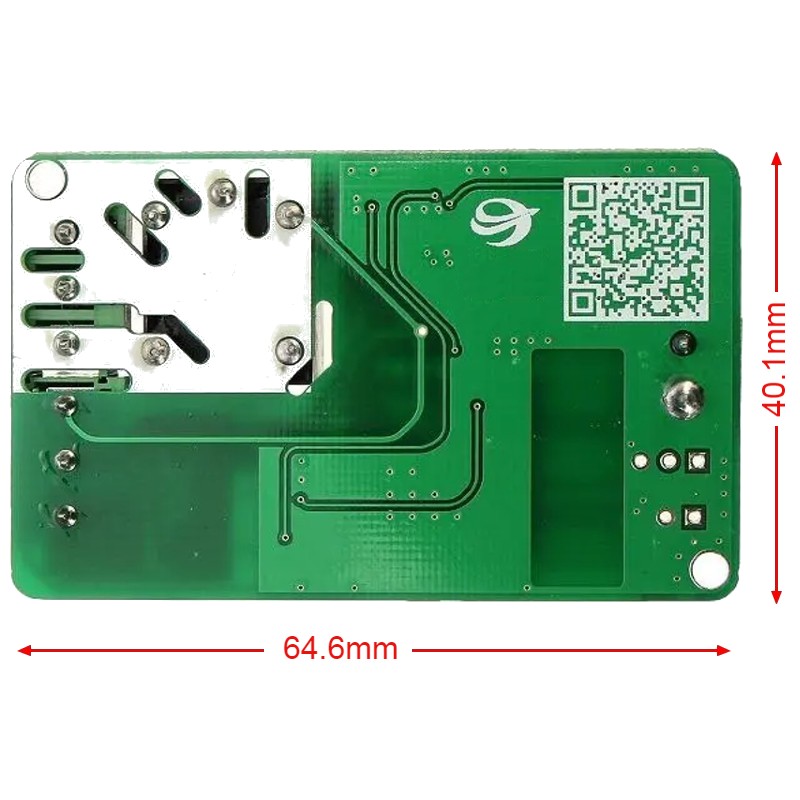

Dims	65x40x18mm

Package Contents:
1 x HW-622 - ESP82266 Relay board

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
