mANT30 PA
mANT30 PA is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.
Two antennas are available, with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.

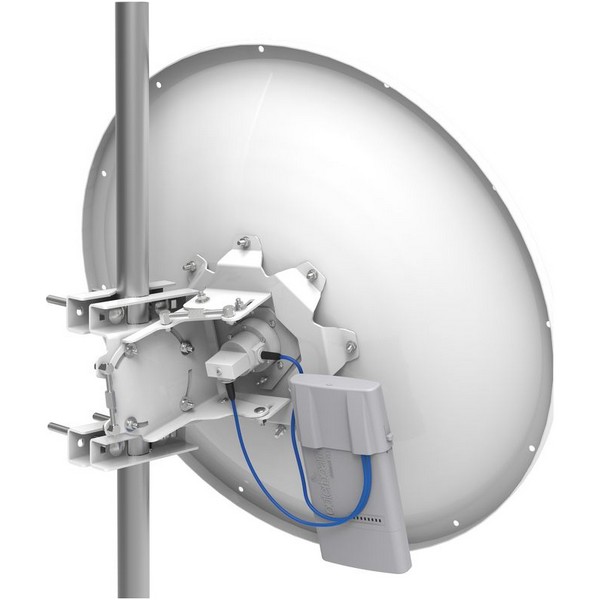

Note: Basebox wireless device pictured for illustrative purposes. It is not included
|
Details |
|
Product code |
MTAD-5G-30D3-PA |
|
Antenna gain DBI |
30dbi |
|
Frequency Range |
4.7-5.875 GHz |
|
Polarization |
Vertical and Horizontal |
|
Beamwidth |
3 deg |
|
VSWR |
≤ 1.4 typ, ≤ 1.8 max |
|
Port to Port Isolation |
>40dB min |
|
Front-to-Back Ratio |
>30 dB |
|
Cross Polarization |
>40 dB |
|
Power Rating |
100W |
|
Impedance |
50 ohms |
|
Elevation adjustment range |
+/- 15 deg |
|
Diameter x Depth |
70 x 45cm (27.5 x 17.8in) |
|
Weight |
5.7kg (12.6 lbs) |
|
Reflector |
Aluminum |
|
Outdoor Rating |
ETSI EN 300 019-2-4 |
|
Standards |
EN 302 326 DN1, DN2, DN3, DN5 |
|
Wind Survivability |
201kph (125mph) |
|
Wind Load (125 mph) |
181.4kg (400 lbs) |
|
Operating Temperature |
-50°C to 80°C(-49°F to 158°F) |
|
Pole Mount Diameter Range |
3 to 10cm (1.2 to 3.9in) |
|
Connector |
2x RP-SMA Female (outside thread) |
|
Packaged size |
73x73x20cm (29x29x8in) |
|
Packaged weight |
8.4 kg (18,5) |
| Package Contents: |
|---|
| 1 x MTAD-5G-30D3-PA |
|
