Aerial.net :: 802.3af/at - 48v to 5V/2A Out 10/100 PoE Splitter - 5.5mm

EZ-PSA055-I

802.3af/at - 48v to 5V/2A Out 10/100 PoE Splitter - 5.5mm - with isolation
[2612][EZ-PSA055-I]

The product is
no longer available

Prices exclude VAT

EZ-PSA055-I is an 802.3af/at ISOLATED splitter to power non-PoE enabled devices. With isolation transformer

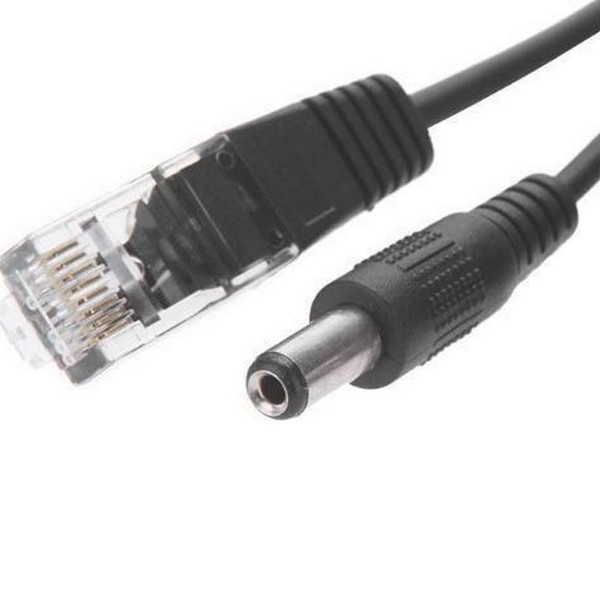

It accepts 802.3af/at PoE to output fixed 5v/2A via the DC Jack (5.5 x 2.1mm) and 10/100 RJ45 Jack.

This way a non PoE enabled device can be powered remotely via any 802.3af/at PoE Injector or PoE Switch

Input / Output Specifications :
DC Input Voltage Max	48V DC
DC Output Voltage	5V DC
Max Output Current	2A Max.
DC Jack	5.5mm x 2.1mm
Operating Temperature	-10^oC ~ +60^oC
Storage Temperature	-20^oC ~ +70^oC
Humidity	Up to 90%
Weight	58gr
Dimensions	290mm * 28mm * 21mm

Package Contents:
1 x EZ-PSA055-I in polybag
