AP6 Pro Outdoor
The AP6-Pro Outdoor is IP68 rated, offering maximum protection against the environment, designed to withstand harsh environments with an operating temperature of -40°C to 70°C

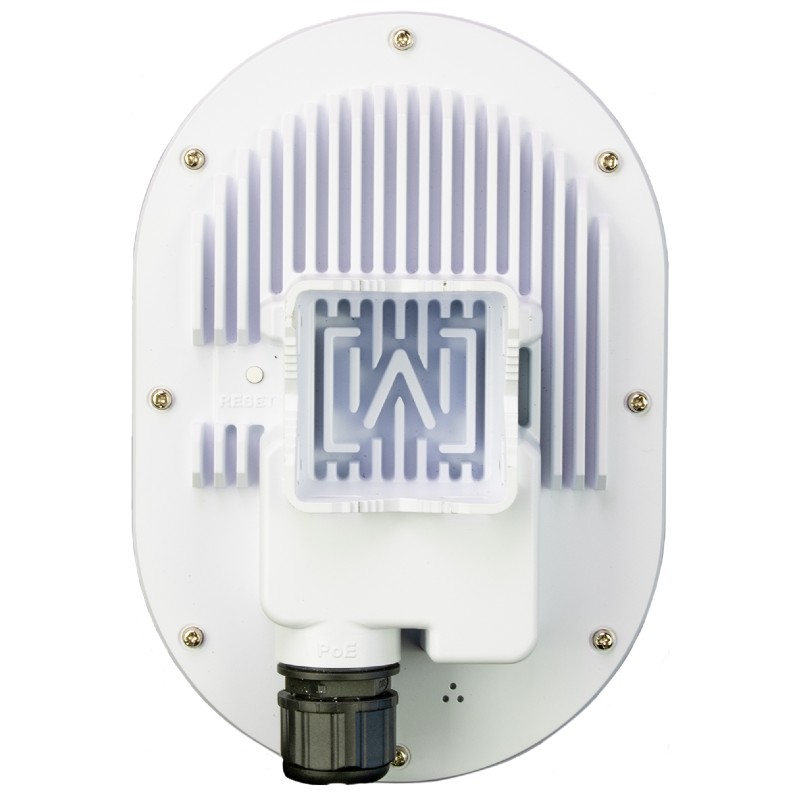

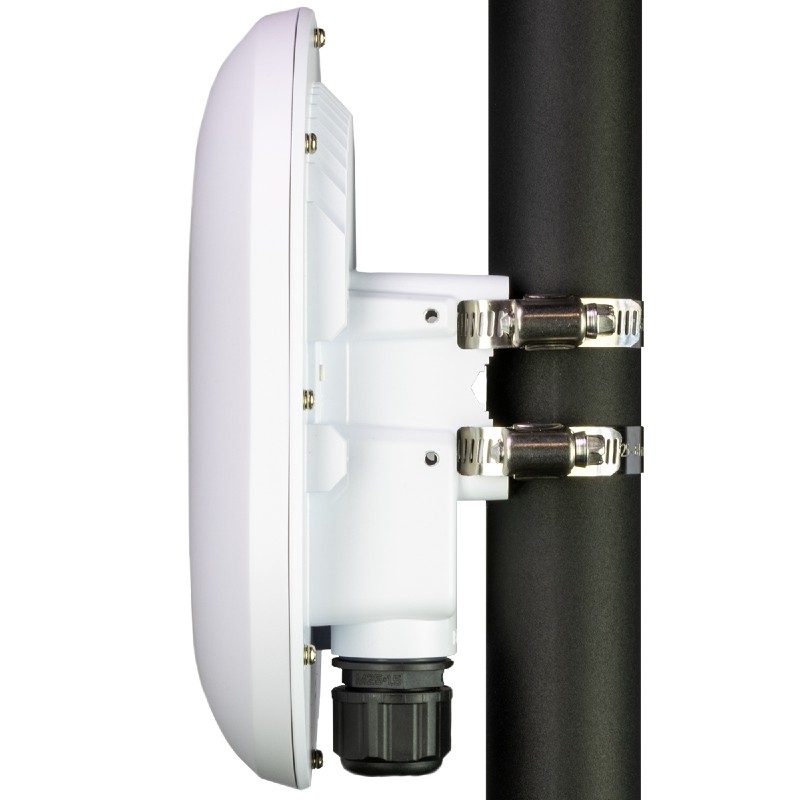

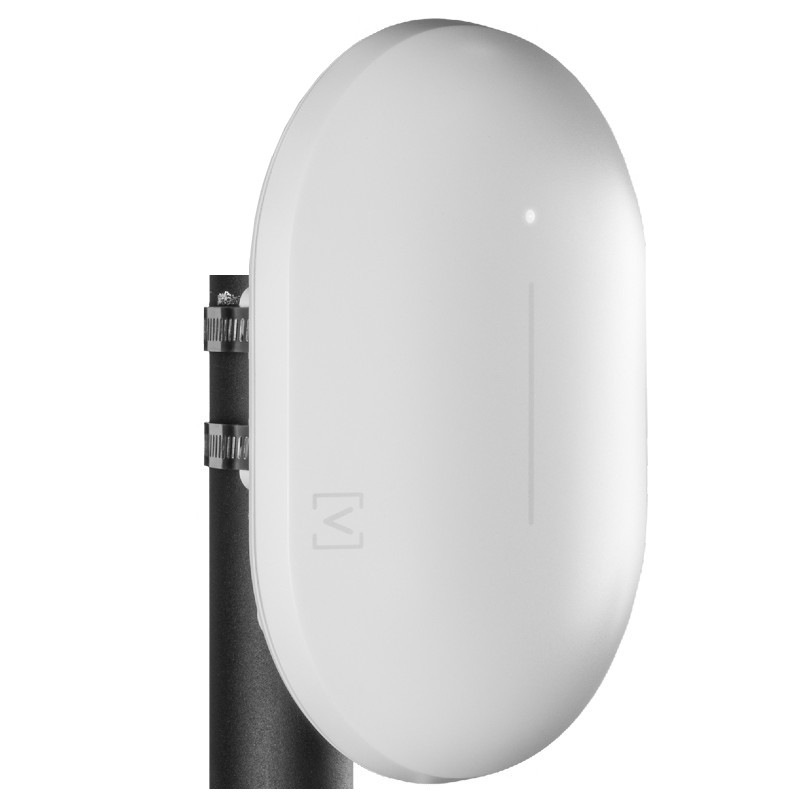

The AP6-Pro Outdoor is an omnidirectional WiFi 6 access point, providing coverage in all directions. The front design is similar to our elegant indoor access points but the back features a built-in pole mount.

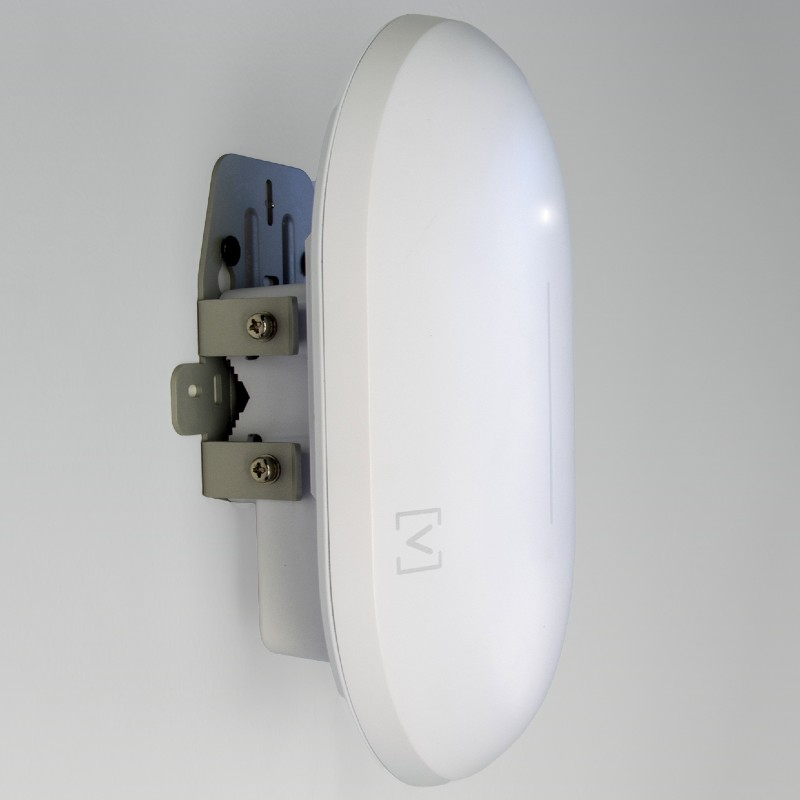

A wall-mount adapter is also included for easy installation on an exterior wall.
The AP6-Pro Outdoor is powered over Ethernet for simple, clean installation.
The AP works with the Alta Management platform and the Alta Networks mobile app for easy management and configuration from anywhere in the world.
-
IP68 for Optimal Weatherproof Protection
-
5GHz: 4x4, DL/UL MU-MIMO, DL/UL MU-OFDMA
-
WiFi 6 With WiFi 7 Benefits
-
Superior Range and Performance
-
Omnidirectional + Mesh Connectivity
-
AltaPass™ Multi-Password Technology
-
Scalable Cloud-Based Management
-
Mobile App
-
DPI Engine
-
Hotspot Functionality
-
On-The-Fly Changes and Scanning
-
SSID Broadcasting Flexibility
|
Wireless features |
|
Wireless frequency |
2.4 + 5 GHz (dual band) |
|
WiFi standards |
802.11ax, 802.11ac, 802.11n, 802.11a, 802.11b/g |
|
Transmission speed - 2.4GHz [Mb/s] |
574 |
|
Transmission speed - 5GHz [Mb/s] |
5800 |
|
Tx power 2.4GHz [dBm] |
23 |
|
Tx power 5GHz [dBm] |
26 |
|
Security |
WPA, WPA2, WPA3 |
|
2.4GHz MIMO |
2 x 2 |
|
5GHz MIMO |
4 x 4 |
|
Type of antenna |
Built-in |
|
Internal antennas |
4 |
|
Roaming |
Yes |
|
Antenna gain [dBi] |
3,3, 4,3 |
|
Connectors and interfaces |
|
LAN speed |
(1) 10/100/1000Mbps |
|
Other features |
Bluetooth |
|
Power |
|
Power over Ethernet |
802.3at, 42 .. 57V DC |
|
Power type |
PoE |
|
PoE type |
PoE-In (only) |
|
Max. power consumption [W] |
25 |
|
Physical characteristics |
|
Protection class |
IP68 |
|
Purpose |
Outdoor |
|
Buttons |
Reset |
|
Operating temperature |
-40°C up to 70°C |
|
Weight |
900gr |
|
Depth |
190x125x90mm |
|
Software |
|
Operating mode |
Access Point |
|
Management |
Alta Labs Controller |
|
IPv6 support |
Transparent (bridge mode) |
|
Default IP address |
Dynamic from DHCP |
|
Default login and password |
Is set by the user at the first startup |

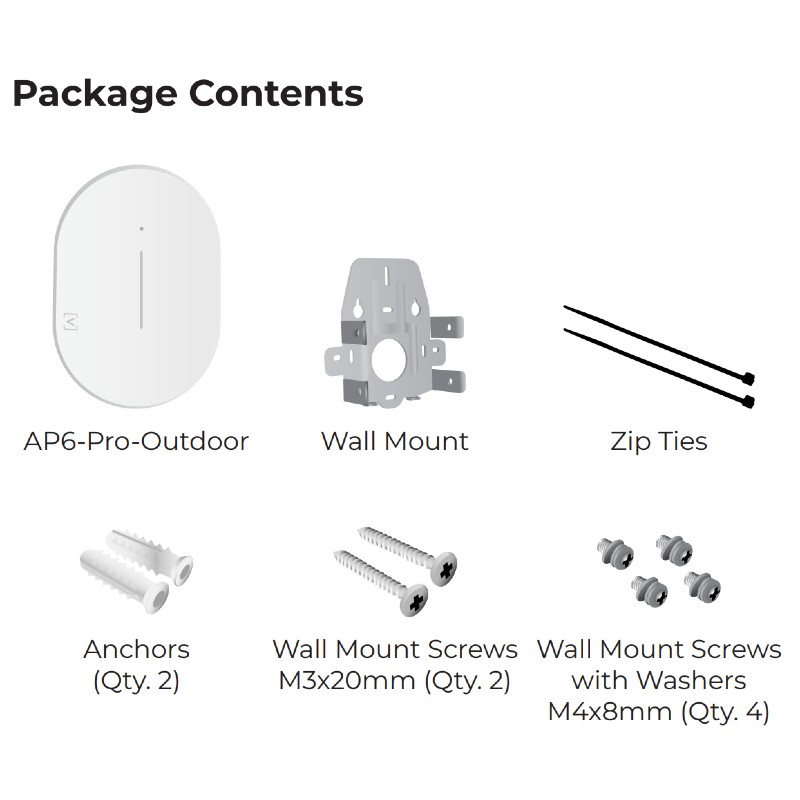

| Package Contents: |
|---|
| 1 x
|
| 1 x Wall / Pole mount Kit
|
| 0 x Without PoE |
|
