Aerial.net :: Alta Labs S8-PoE, 8-Port (4+4) Gigabit PoE Switch

Alta Labs » S8-PoE

Alta Labs S8-PoE, 8-Port (4+4) Gigabit PoE Switch
[3066][S8-PoE]

Price: 128,78€

Prices exclude VAT

In Stock: 2

Order Qty:

UPC:	845882005541

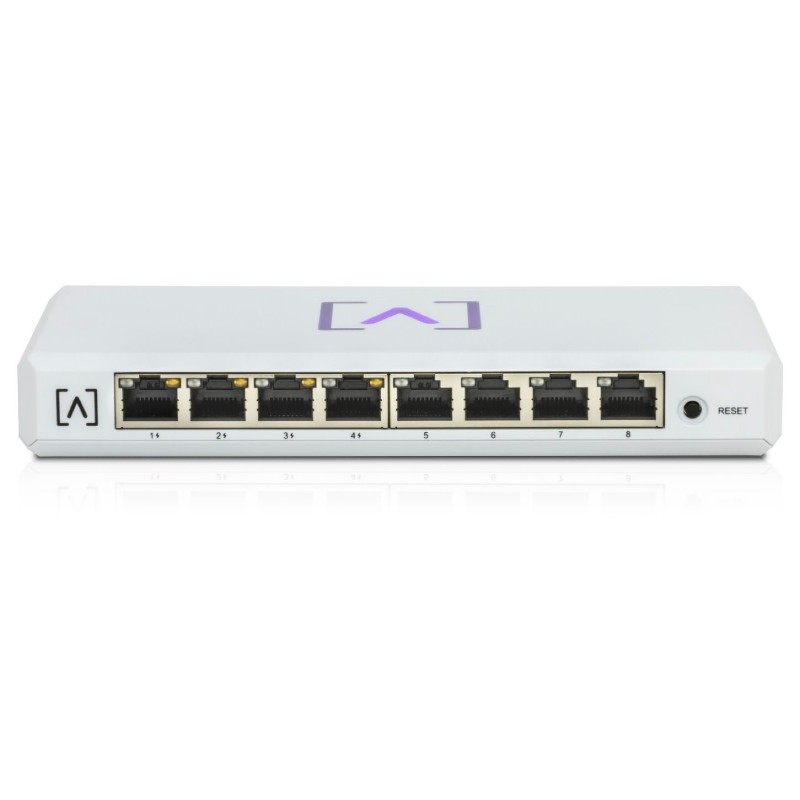

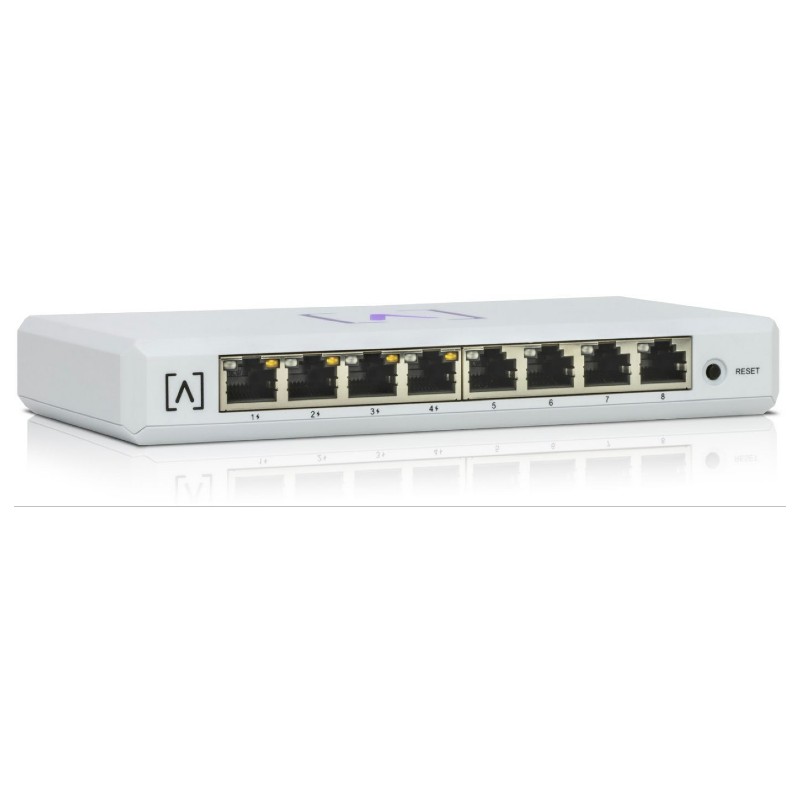

Alta Labs S8-PoE, 8-Port (4+4) Gigabit PoE Switch

The S8-PoE is a compact switch with eight 10/100/1000 ports, four of which support PoE+.

It can be placed on a desktop or mounted on a wall.

All of the Alta Labs switches include Bluetooth functionality for seamless device setup.

Features:

Product Links:
Product Page	Datasheet	Quick Start Guide

Ports:
Part#	S8-PoE
Interface ports	(8) 10/100/1000 Mbps
SFP/SFP+	None
Switching Capacity	16 Gbps
Non-blocking Throughput	8 Gbps
Forwarding Rate	11.9 Gbps
PoE Budget/Max	60 Watts
PoE Supply	30 Watts per port
Per Port PoE	(4) 802.3at PoE+
Non-PoE Ports	(4)
LEDs:
PoE	Orange
Network	Orange: 10/100 Mbps, Blue: 1000Mbps
SFP/SFP+	None
Hardware:
Packet Buffer	4.1 Mbit
Mac Table Size	8 K
Energy Efficient Ethernet	Yes
Management	Factory reset button
Bluetooth	Yes, Setup
Power:
Max Power Consumption w/o PoE	8 Watts
Max Power Consumption Full PoE	68 Watts
Power Supply	Universal AC, 100 - 240VAC 50/60Hz External
RJ45 Port Surge Protection	12kV for ESD - contact, 25kV for ESD - Air
Environmental:

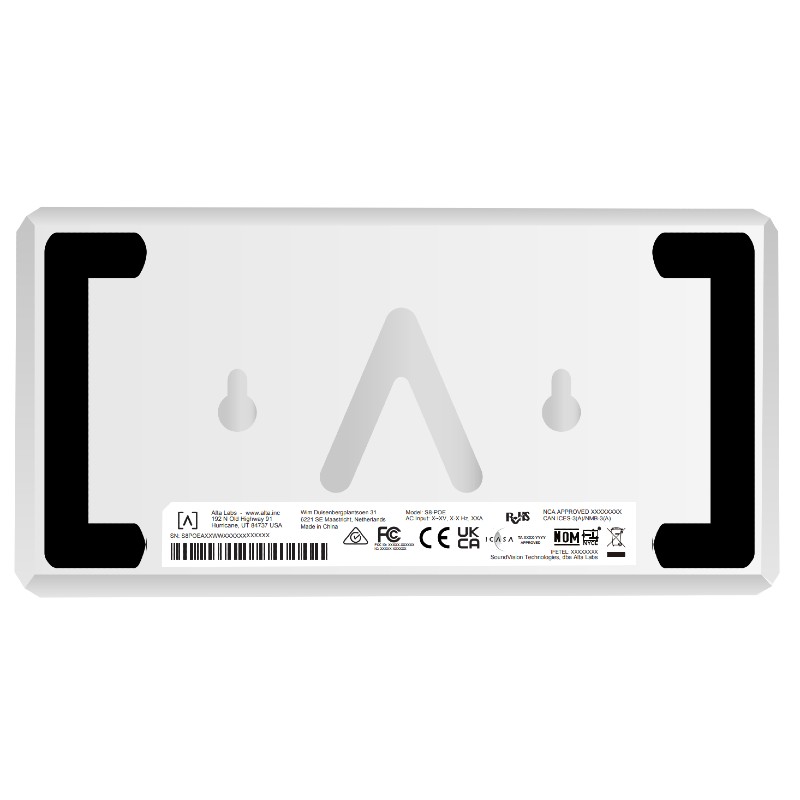

Mounting	Locking Wallmount
Operating Temperature	-5°C to 50°C
Operating Humidity	10 to 90% Non condensing
IP Rating	None
EMI Rating	EMI Class-B with 3dB margin
Cooling Fan	No (Fanless cooling)
Certifications	CE, FCC, IC
Mechanical:
Dimensions	25.7 x 91 x 180 mm
Weight	0.38 kg
Material Type	Injection Molded Plastic
Material Finish	Matte
Color	White
