Aerial.net :: IP Managed Lan Controller HW3.0

LANKON-00X

IP Managed Lan Controller HW3.0
[2579][LANKON-00X]

The product is
no longer available

Prices exclude VAT

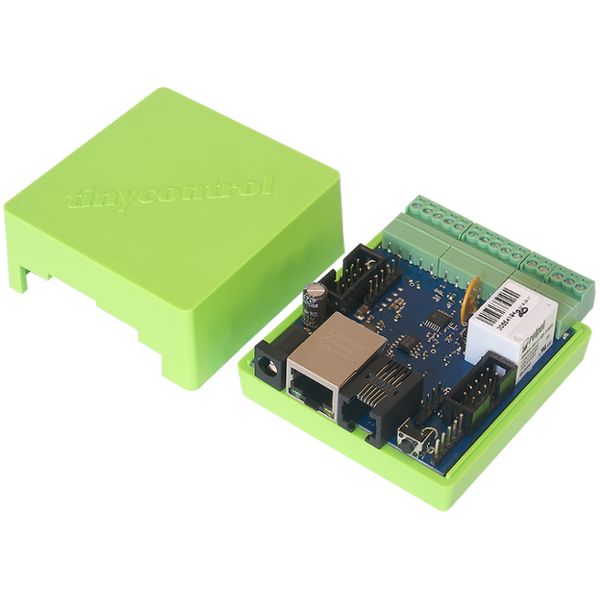

Lan Controller HW v3.0 with case

It is a completely new device greatly expanded functionality compared to version v2.

It acts as a web server, which presents readings of various types of sensors: temperature, humidity, voltage, current, events, and allows you to control remotely up to 6 outputs.

The device is designed and manufactured in Poland.

Product Links:
Product Page	User Guide HW3	Upgarde Manual

Specifications:
Digital Input	4
Digital Output	5 (1+4)
Analog Input	4
1-Wire	Yes - RJ11 4/6
Power Supply	8-28V DC
Device Power	0.6W
RP Protection	YES
Temp	-20°C to +85°C
Size	60x68mm
Wieght	50g

Package Contents:

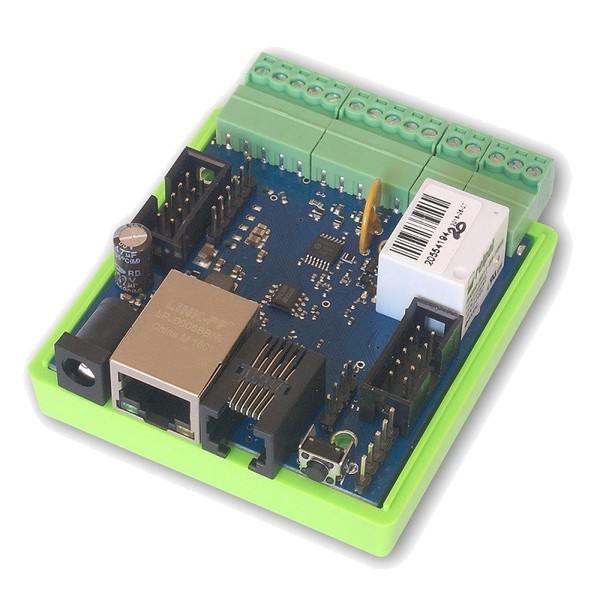

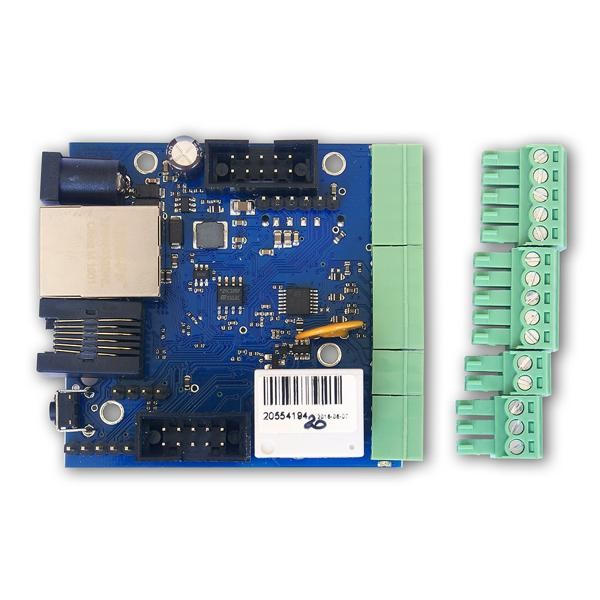

1 x Lan Controller HW v3.0 PCB
1 x Plastic Case
1 x Plastic DIN mount

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
