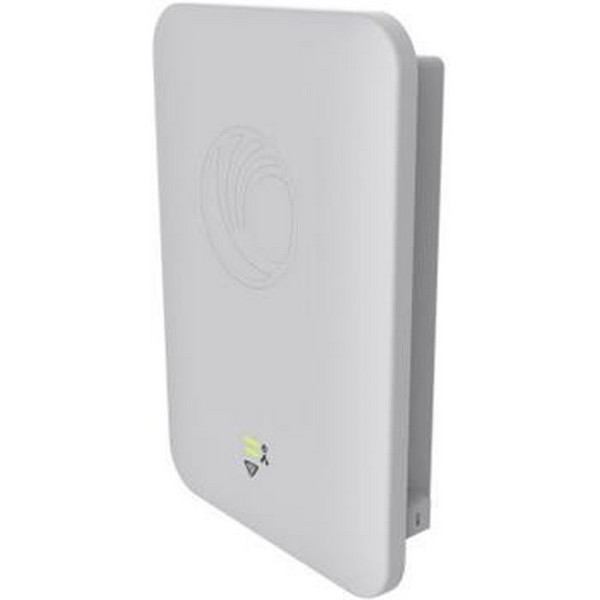

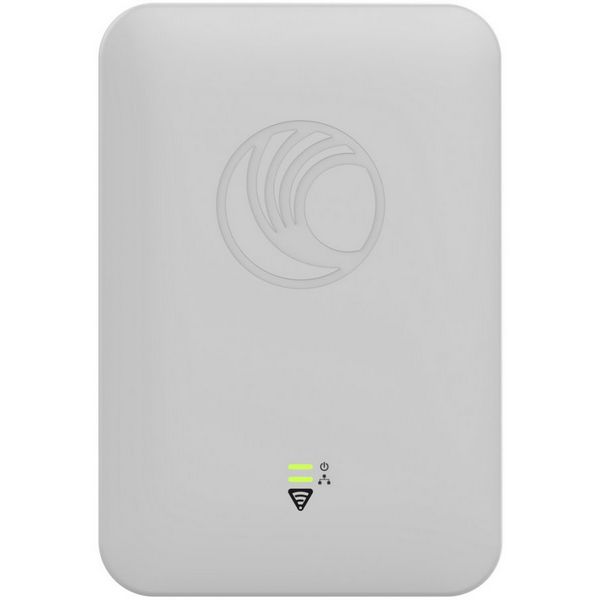

cnPilot e501S Wi-Fi Access Point
The cnPilot™ e501S 802.11ac Outdoor Sector Access Point includes an IP67 enclosure, 90° ~ 120° integrated sector antenna, supports 256 client associations, 16 SSIDs, WPA-2 encryption, Dynamic VLANs, DFS channels, Access Control Lists (ACL), and more.
MULTI-FUNCTIONAL OUTDOOR WI-FI
The cnPilot e500/501/502 series includes a second gigbit Ethernet port to power up and connect a Cambium fixed wireless subscriber module, or any powered Ethernet device. e501S and e502S features Cambium engineered high gain sector antenna array that projects RF energy in a 1,200 or 300 arc out the front of the AP, with ~ -10dB in the remaining 600 providing a full 1,800 coverage, this is ideal for outdoor Wi-Fi on a warehouse, retail store, anywhere the AP is installed on the outside of the building. e501S features power out on one gigabit Ethernet port to connect any IP- and PoE-powered device such as an IP camera, Cambium fixed wireless subscriber module, or another Wi-Fi AP. Additionally, the e501S includes enterprise features designed to improve reliable connections. Controller-less roaming, dynamic channel selection, automatic transmit power control, band steering, multi-hop MESH with alternating 2.4 GHz and 5 GHz bands are all features of the cnPilot 500/501/502 series.
Integrated troubleshooting tools provide remote access for packet capture, client statistics, operational and RF statistics, and RF scanning for interference, channel utilization, and noise floor scan.
|
Specifications |
|
Connectors and Interfaces |
|
LAN speed: |
(2) 10/100/1000Mbps |
|
Gigabit LAN: |
Yes |
|
Physical characteristics |
|
Protection class: |
IP67 |
|
Purpose: |
Outdoor |
|
Operating temperature [°C]: |
-30 up to 60 |
|
Weight [g]: |
1300 |
|
Depth [mm]: |
65 |
|
Width [mm]: |
204 |
|
Height [mm]: |
300 |
|
Power |
|
Power over Ethernet: |
802.3af, 802.3at |
|
PoE type: |
PoE-Out + PoE-In |
|
Max. power consumption [W]: |
13 |
|
Software |
|
Operating mode: |
Access Point |
|
IPv6 support: |
Yes |
|
Default IP address: |
192.168.0.1, Dynamic from DHCP |
|
Default login and password: |
admin / admin |
|
Wireless features |
|
Wireless frequency: |
2.4 + 5 GHz (dual band) |
|
WiFi standards: |
802.11ac, 802.11n, 802.11a, 802.11b/g |
|
Hotspot 2.0: |
Yes |
|
Transmission speed - WiFi 2.4GHz [Mb/s]: |
300 |
|
Transmission speed - WiFi 5GHz [Mb/s]: |
866 |
|
Tx power 2.4GHz [dBm]: |
29 |
|
Tx power 5GHz [dBm]: |
28 |
|
2.4GHz MIMO: |
2 x 2 |
|
5GHz MIMO: |
2 x 2 |
|
Type of antenna: |
Built-in |
|
Roaming: |
Yes |
|
Antenna gain [dBi]: |
11, 13 |
| Package Contents: |
|---|
| 1 x PL-501SP00A-EU |
