RF elements AS-5-20 - Array Sector 5-20
[2778][AS-5-20]

Price: 124,87€

Order or Qty		Price
> 500€	5+	123,62€
> 1000€	10+	122,37€
> 2000€	20+	121,13€
> 5000€	40+	119,88€
> 10000€	100+	118,63€

Prices exclude VAT

In Stock: 2

Available quantity within
3-5 working days: 88

Order Qty:

EAN:	8588006459616

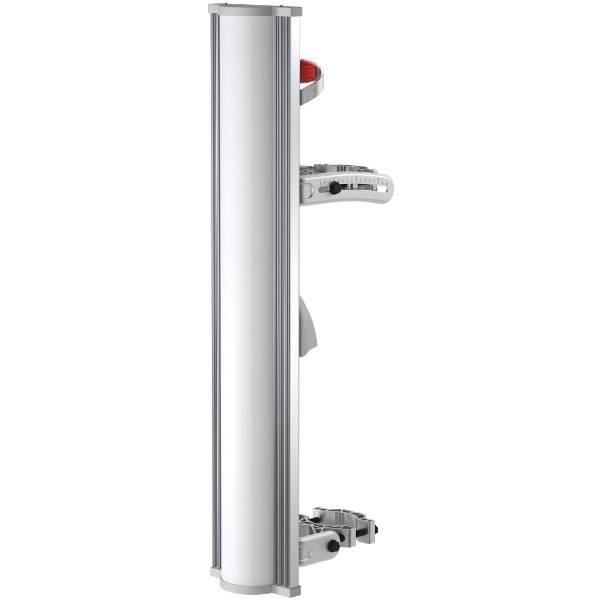

AS-5-20 - Array Sector 5-20

The new Array Sector series are superior patch array antennas optimized for excellent performance in sectorial coverage and dense cluster applications.

Sector dualpolarization antenna Array Sector 5-20 from the manufacturer RF Elements operating in the 5 GHz band with 20 dBi gain and a beam angle of 100°.

Array Sector Antennas have integrated BackShield - patented frequency-selective surfaces attenuating azimuthal side lobes and back radiation significantly improving the co-location capability of Array Sector Antennas.

Product Links:
Product Page	Datasheet

Specidications:
Frequency Range	5150 - 5850 MHz
Gain	20 dBi
Polarization	Dual Linear H + V

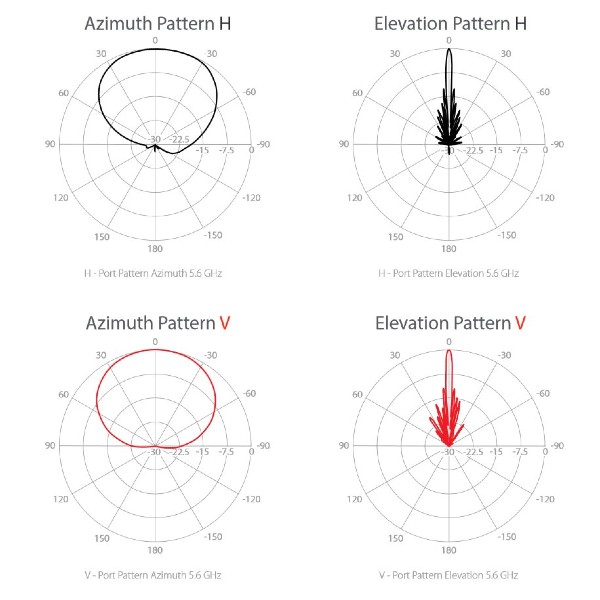

Azimuth Beam Width -3 dB	H 80° / V 71°
Elevation Beam Width -3 dB	H 3.5° / V 3.5°
Azimuth Beam Width -6 dB	H 100° / V 100
Elevation Beam Width -6 dB	H 4.5° / V 4.5°
Front-to-Back Ratio (Min)	30 dB
Beam Efficiency	69 %
Cross Pol Isolation	H 27 dB / V 27 dB
Impedance	50 Ohm
VSWR Max	1.7
VSWR Typical	1.4
Isolation Between Ports	30 dB

Package Contents:
1 x AS-5-20

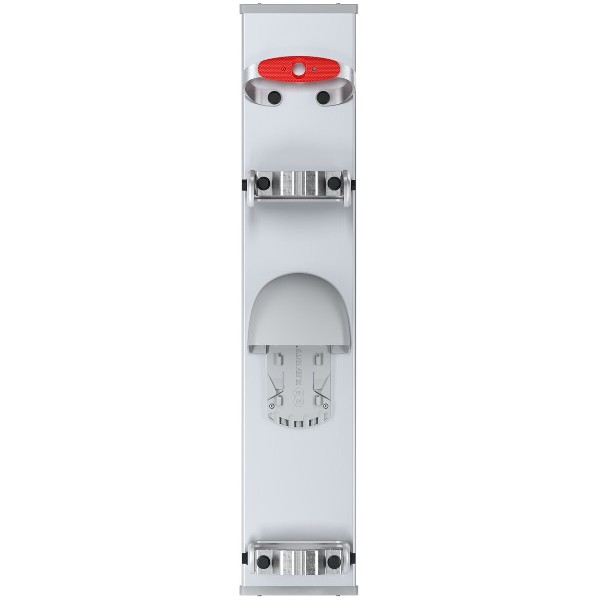

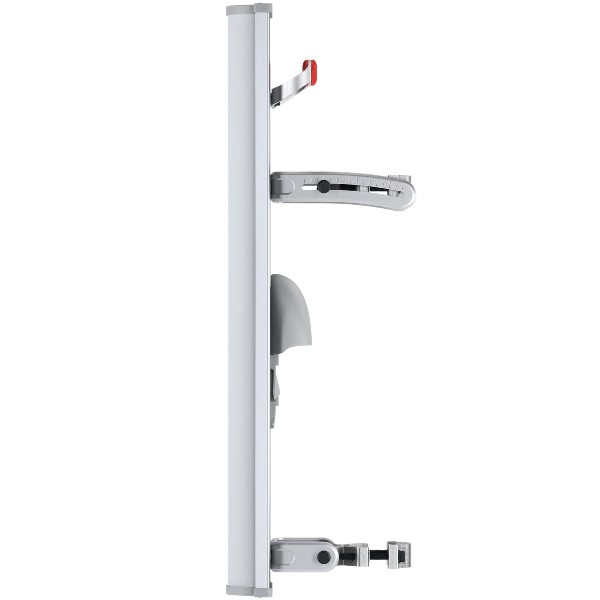

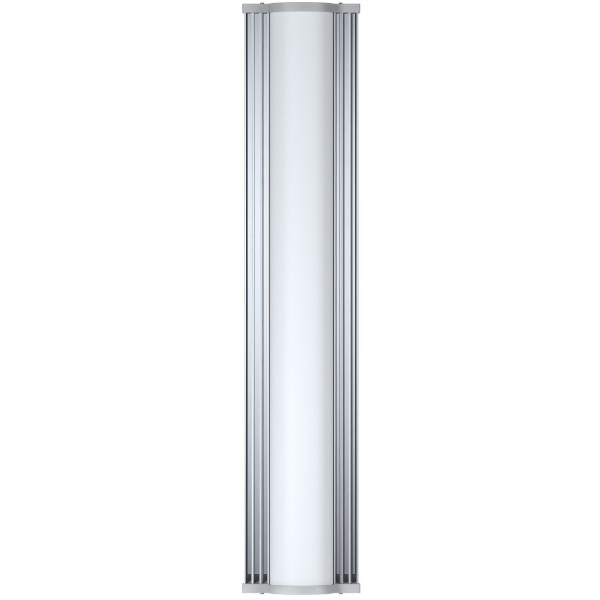

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	24 month(s)
