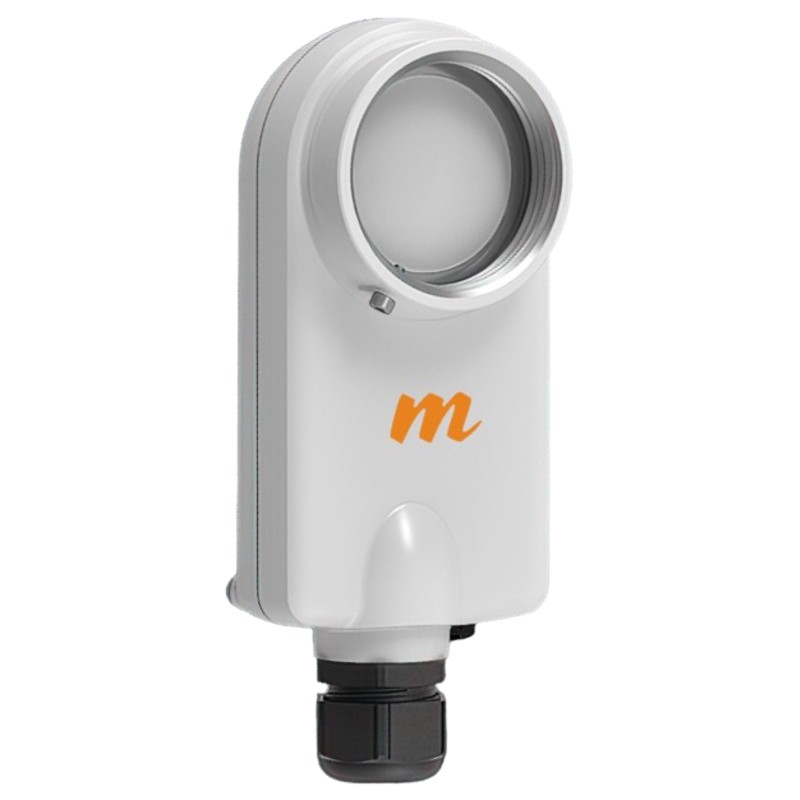

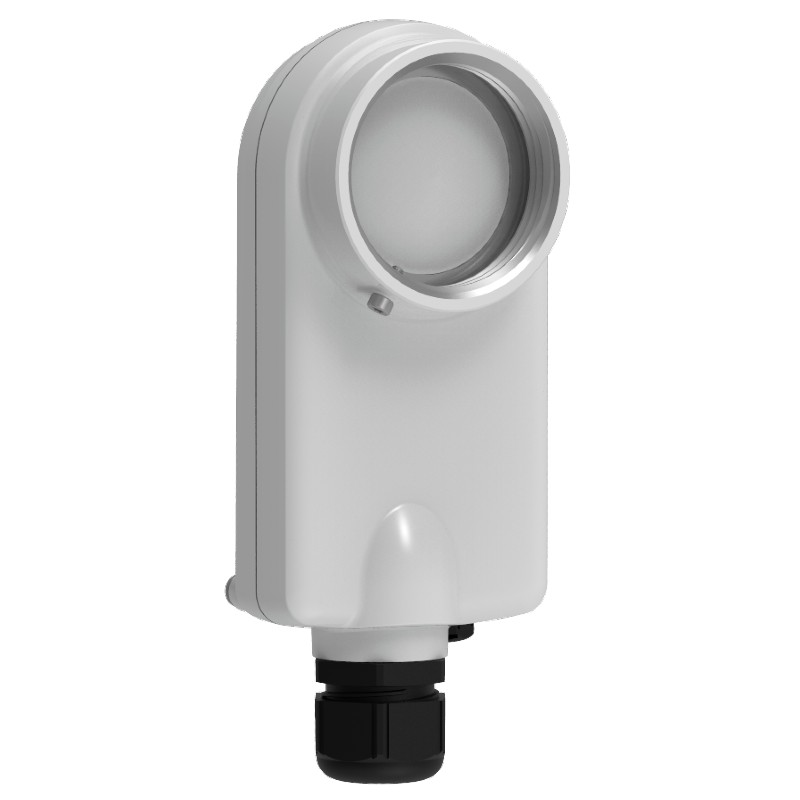

C5x - Client/PTP Backhaul
The Mimosa C5x is the industry’s most versatile, integrated radio with four modular twist-on antenna options. The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and cost efficiency, the C5x is the go-to PTP or PTMP solution for 5 GHz deployments.
Integrated Radio with Modular Antenna Options
The C5x’s native 8 dBi gain can be increased to 12, 16, 20, or 25 dBi using Mimosa’s modular N5-X twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.
Ultimate Flexibility
Out of the box, the entry level C5x can be used in PTMP or PTP mode with speeds of up to 700 Mbps.
Incredible RF Performance
Encased in metal and leveraging custom-designed horn and Cassegrain antennas, the C5x reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection.
Extended Frequency
To escape the noise, the C5x lets you take advantage of both 4.9 GHz public safety applications and licensed frequencies up to 6.4 GHz, where allowed by local regulations. The custom-designed N5-X modular antennas are specifically optimized for C5x extended frequency support.
Ultra Rugged

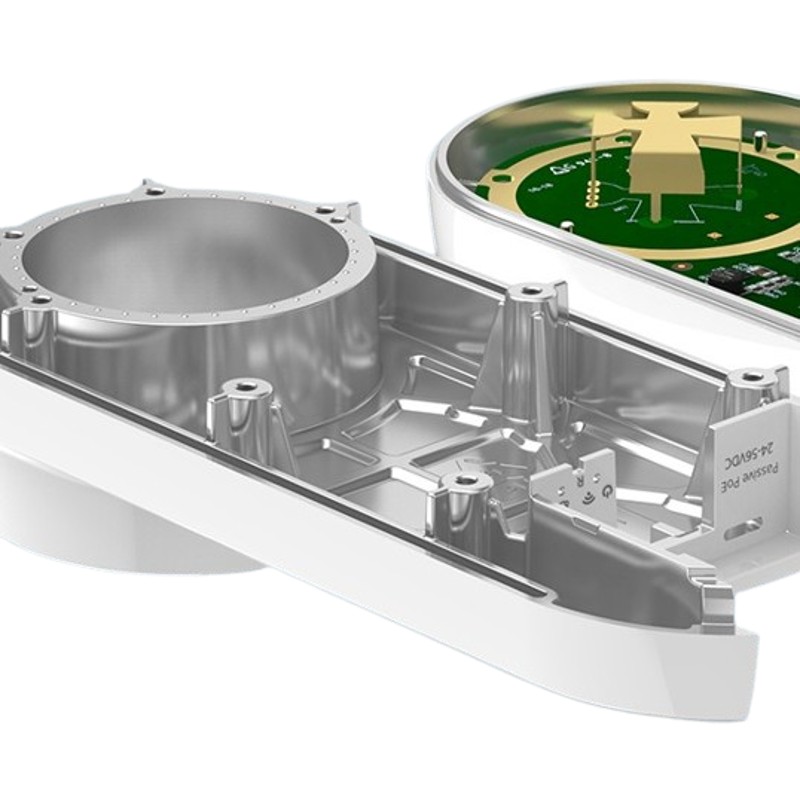

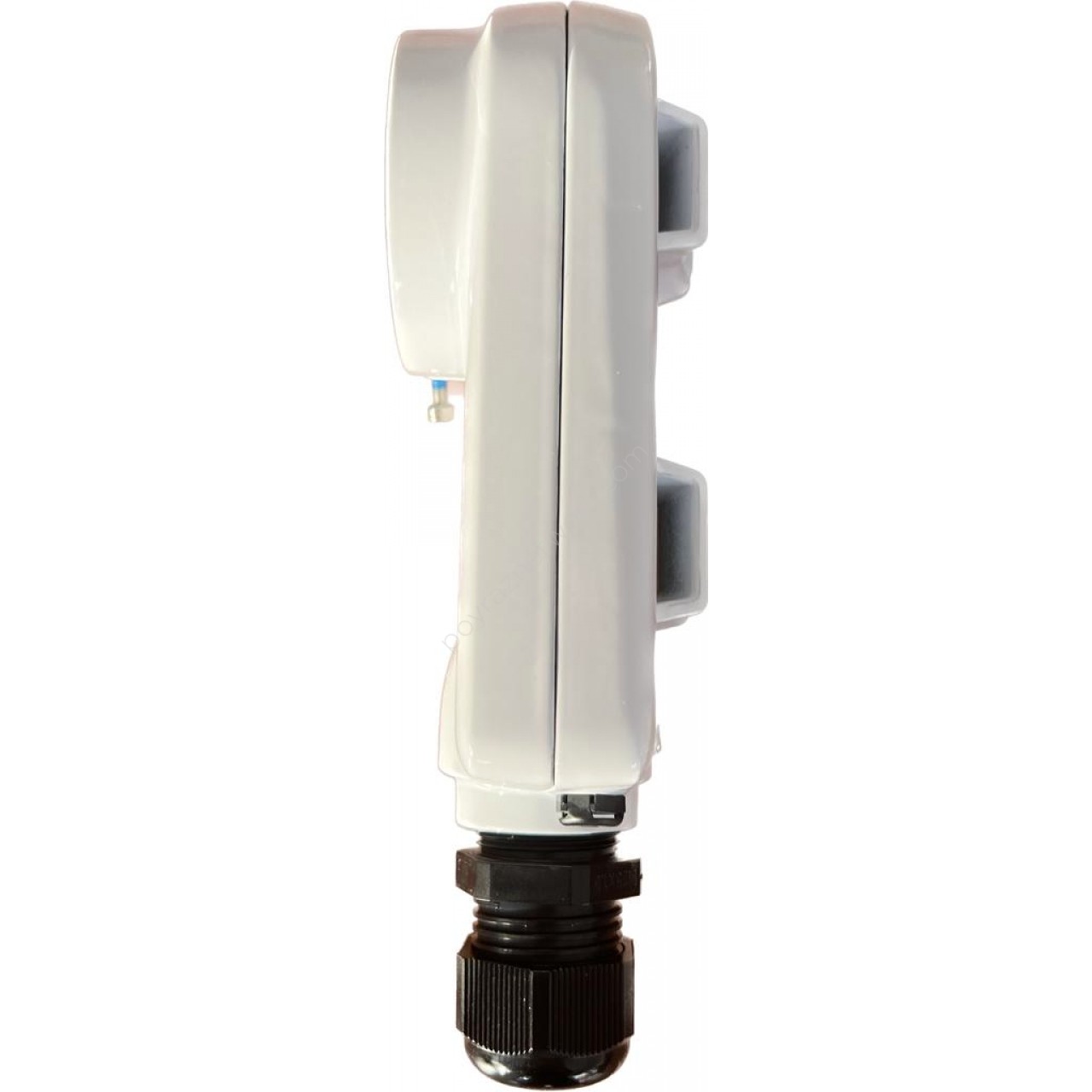

The C5x, with its die-cast aluminum metal enclosure, dual-pole mounts and industrial-grade, twist-on antenna options, is optimized to reduce noise, withstand the outdoor elements and stay mounted in extreme weather.
|
Specifications: |
|
Connectors and Interfaces |
|
RF connectors: |
Twist-on port (Mimosa) |
|
LAN speed: |
(1) 10/100/1000Mbps |
|
Gigabit LAN: |
Yes |
|
Physical characteristics |
|
Purpose: |
Outdoor |
|
Operating temperature [°C]: |
-40 up to 55 |
|
Weight [g]: |
370 |
|
Depth [mm]: |
61 |
|
Width [mm]: |
70 |
|
Height [mm]: |
175 |
|
Power |
|
Power over Ethernet: |
24 .. 56V DC |
|
PoE type: |
PoE-In (only) |
|
Max. power consumption [W]: |
12,9 |
|
Software |
|
Operating mode: |
Bridge, Client |
|
Wireless features |
|
Sensitivity [dBm]: |
-93 |
|
Wireless frequency: |
5 GHz |
|
WiFi standards: |
Mimosa SRS, WiFi Interop |
|
Transmission speed - WiFi 5GHz [Mb/s]: |
866 |
|
Tx power 5GHz [dBm]: |
27 |
|
Security: |
WPA2 PSK & Enterprise 802.1x;Radius provisioning, COA, DM; 128-bit AESwith hardware acceleration |
|
5GHz MIMO: |
2 x 2 |
|
Azimuth beam width (-6dB) [°]: |
58, 58 |
|
Type of antenna: |
Built-in |
|
Internal antennas: |
1 |
|
Antenna gain [dBi]: |
8 |

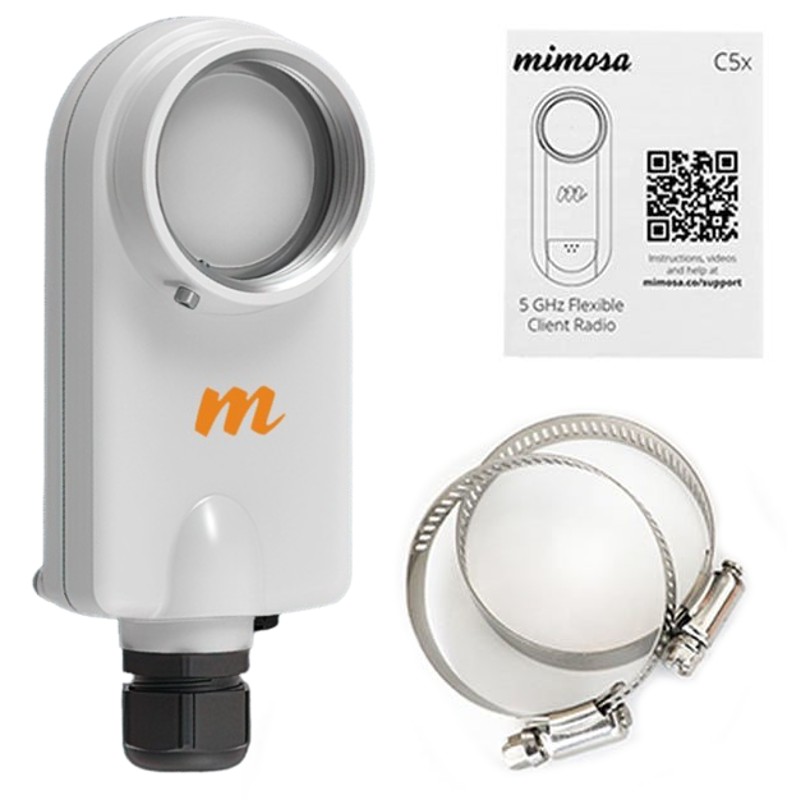

| Package Contents: |
|---|
| 1 x C5x IP67
|
| 1 x User Guide
|
| 2 x Hose Clamps
|
| 0 x PoE Adapter |
|
