Cambium Networks’ ePMP™ product line has set the standard for high performance, scalability and reliability in harsh interference environments all at a compelling price. The ePMP 3000 is the third generation access point (AP) that carries on the interference tolerance mechanisms from ePMP 2000 but adds the power of Multi-User MIMO (MU-MIMO). The ePMP 3000 is a 4X4 MU-MIMO access point that can double the throughput at the sector level with the same channel bandwidth by serving two subscribers at the same time.
Frequency Reuse:
Supports GPS synchronization and SM Transmit power control to allow for frequency re-use.
Unmatched Performance and Scalability:
With the efficient Cambium Networks MAC protocol and advanced air-fairness scheduler up to 120 simultaneously active subscriber modules can be served without performance degradation.
Industry-Leading Interference Tolerance:
The intelligent filtering capability on the receive side makes the ePMP 2000 immune to the effects of strong off-channel interferers and on the transmit side serves to reduce off-channel noise for better radio co-location.
Industry-Leading Spectral Efficiency:
MU-MIMO in the downlink doubles the sector capacity by serving two MIMO users at the same time.
Features:
-
MU-MIMO support with peak throughput of 1.2 Gbps
-
256QAM-5/6, 80 MHz support
-
802.3at compliant 100/1000BaseT interface
-
Frequency re-use with GPS sync, interference mitigation with beam steering antenna and dynamic filtering
Specifications |
Connectors and Interfaces |
RF connectors: |
(4) RSMA female |
LAN speed: |
(1) 10/100/1000Mbps |
Gigabit LAN: |
Yes |
GPS module: |
Yes |
Physical characteristics |
Protection class: |
IP55 |
Purpose: |
Outdoor |
Operating temperature [°C]: |
-30 up to 55 |
Weight [g]: |
700 |
Depth [mm]: |
45 |
Width [mm]: |
124 |
Height [mm]: |
222 |
Power |
Power over Ethernet: |
802.3at |
Power type: |
PoE |
PoE type: |
PoE-In (only) |
Max. power consumption [W]: |
25 |
Software |
Operating mode: |
Access Point |
IPv6 support: |
Yes |
Default login and password: |
admin / admin |
Wireless features |
Wireless frequency: |
5 GHz |
WiFi standards: |
802.11ac, 802.11n, 802.11a |
Transmission speed - WiFi 5GHz [Mb/s]: |
1733 |
Tx power 5GHz [dBm]: |
32 |
Security: |
128bit AES |
5GHz MIMO: |
4 x 4 |
Type of antenna: |
Detachable |
Detachable antennas: |
4 |
Package Contents: |
1 x C050910A203A |

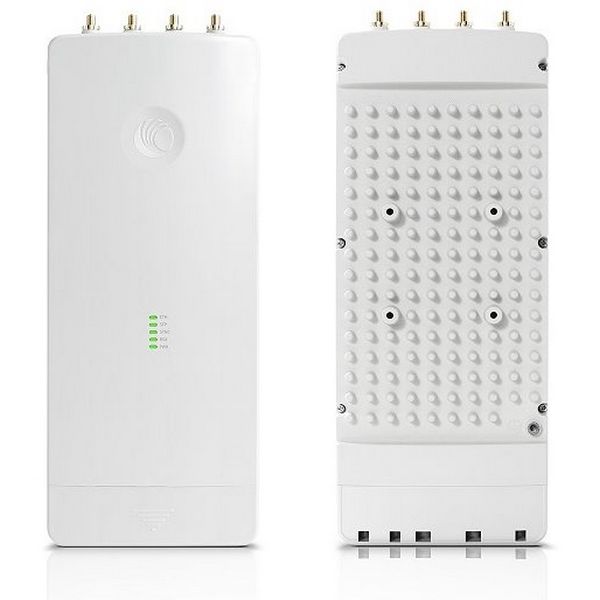

Additional Images: |
|
|
