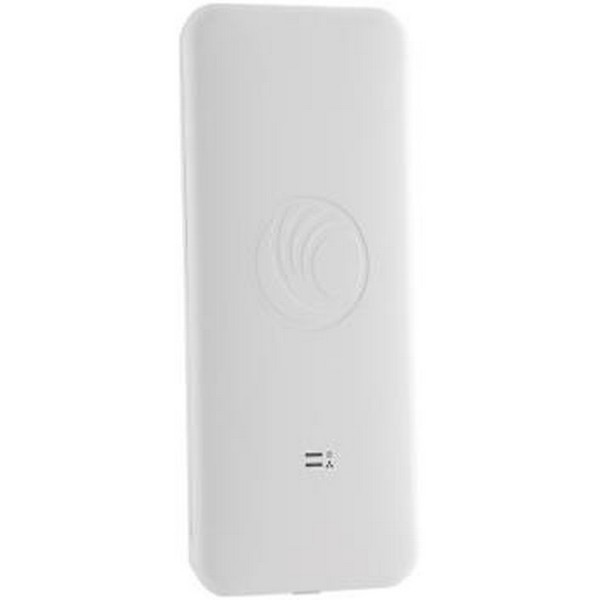

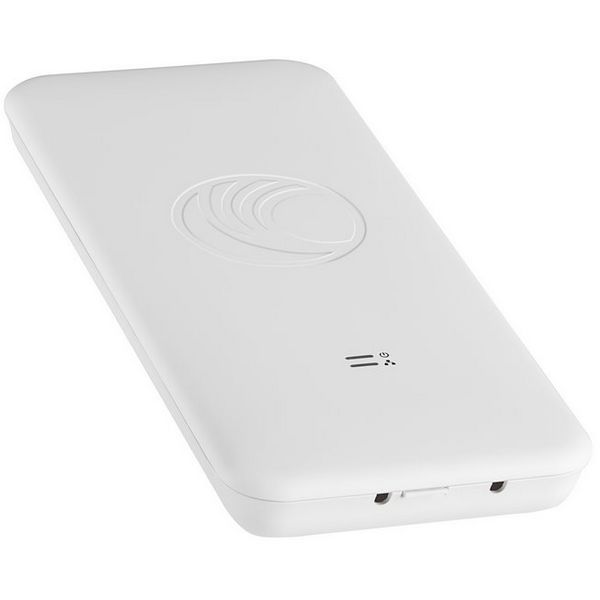

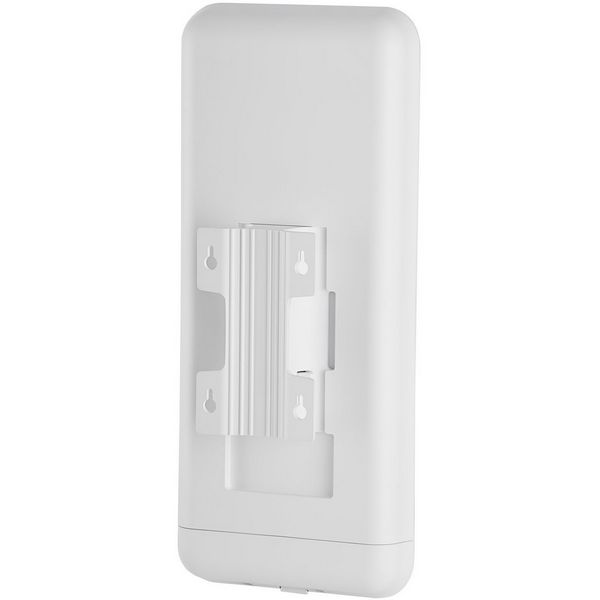

PL-E500INTA-EU
cnPilot™ e500 APs feature two Gigabit Ethernet ports and an AUX port capability, enabling outdoor deployment anywhere with additional power available for another backhaul radio, security camera, or other additional equipment.
MULTI-FUNCTIONAL OUTDOOR WI-FI
The cnPilot e500/501/502 series includes a second gigbit Ethernet port to power up and connect a Cambium fixed wireless subscriber module, or any powered Ethernet device. e501S and e502S features Cambium engineered high gain sector antenna array that projects RF energy in a 1,200 or 300 arc out the front of the AP, with ~ -10dB in the remaining 600 providing a full 1,800 coverage, this is ideal for outdoor Wi-Fi on a warehouse, retail store, anywhere the AP is installed on the outside of the building. e501S features power out on one gigabit Ethernet port to connect any IP- and PoE-powered device such as an IP camera, Cambium fixed wireless subscriber module, or another Wi-Fi AP. Additionally, the e501S includes enterprise features designed to improve reliable connections. Controller-less roaming, dynamic channel selection, automatic transmit power control, band steering, multi-hop MESH with alternating 2.4 GHz and 5 GHz bands are all features of the cnPilot 500/501/502 series.
Integrated troubleshooting tools provide remote access for packet capture, client statistics, operational and RF statistics, and RF scanning for interference, channel utilization, and noise floor scan.
|
Specifications |
|
Connectors and Interfaces |
|
LAN speed: |
(2) 10/100/1000Mbps |
|
Gigabit LAN: |
Yes |
|
Physical characteristics |
|
Protection class: |
IP67 |
|
Purpose: |
Outdoor |
|
Operating temperature [°C]: |
-30 up to 60 |
|
Weight [g]: |
880 |
|
Depth [mm]: |
65 |
|
Width [mm]: |
204 |
|
Height [mm]: |
300 |
|
Power |
|
Power over Ethernet: |
802.3af, 802.3at |
|
PoE type: |
PoE-Out + PoE-In |
|
Max. power consumption [W]: |
13 |
|
Software |
|
Operating mode: |
Access Point |
|
IPv6 support: |
Yes |
|
Default IP address: |
192.168.0.1, Dynamic from DHCP |
|
Default login and password: |
admin / admin |
|
Wireless features |
|
Wireless frequency: |
2.4 + 5 GHz (dual band) |
|
WiFi standards: |
802.11ac, 802.11n, 802.11a, 802.11b/g |
|
Hotspot 2.0: |
Yes |
|
Transmission speed - WiFi 2.4GHz [Mb/s]: |
300 |
|
Transmission speed - WiFi 5GHz [Mb/s]: |
866 |
|
Tx power 2.4GHz [dBm]: |
29 |
|
Tx power 5GHz [dBm]: |
28 |
|
2.4GHz MIMO: |
2 x 2 |
|
5GHz MIMO: |
2 x 2 |
|
Type of antenna: |
Built-in |
|
Roaming: |
Yes |
|
Antenna gain [dBi]: |
5 |
| Package Contents: |
|---|
| 1 x PL-E500INTA-EU |
