AF60-XG - UISP airFiber 60 XG
4+ km, multi-gigabit, 60 GHz bridge with SFP+ support.

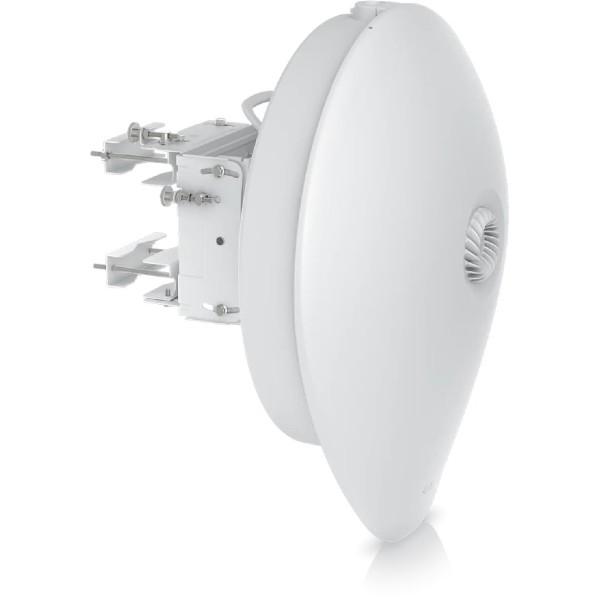

The airFiber 60 XG (AF60 XG) is a 60 GHz point-to-point (PtP) bridge with a built-in, 5 GHz backup radio.
The AF60 XG delivers low-interference, low-latency throughput, making it an ideal component for carrier backhaul.
It also features integrated GPS and a Bluetooth management radio to simplify setup and configuration.
Features:
-
Low-interference, 60 GHz spectrum
-
High-gain dish antenna
-
5 GHz backup radio
-
4+ km link range
-
Supports channel bonding to achieve up to a 6 Gbps throughput rate
-
Terragraph-certified
-
10G SFP+ port
-
Integrated GPS Link planning support via ispdesign.ui.com
-
Simple, Bluetooth-powered setup with the UISP® Mobile app
Managed with the UISP application: Version 1.4.3 and later
Managed with the UISP Mobile app: Version 2.19 and later (iOS/ Android)
The price is for a single dedvice. Requires 2 devices to form a link.
|
Mechanical |
|
Dimensions |
779 x 664 x 383 mm |
|
Weight |
Without mount: 8.6 kg
With mount: 13 kg |
|
Enclosure materials |
UV stabilized polycarbonate, steel |
|
Mount material |
Galvanized steel |
|
Mount |
Precision Alignment Kit (included)
Pole compatibility: Ø40-80 mm |
|
Wind loading |
422 N at 200 km/h |
|
Hardware |
|
Processor |
Quad-Core ARM® Cortex® A72 at 1.6 GHz |
|
Memory |
2 GB DDR4 |
|
Networking interfaces |
(1) GbE RJ45 port
(1) 1/10G SFP+ port |
|
Button |
Factory reset |
|
RF connections |
Internal |
|
Max. power consumption |
31.2W |
|
Power method Passive PoE |
4-pairs (1,2+; 3,6-) (4,5+; 7,8-)
or 2-pairs (4,5+; 7,8-) |
|
Power supply |
48VDC, 0.65A Gigabit PoE adapter (included) |
|
Supported voltage range |
48VDC ± 10% |
|
Operating temperature |
-40°C to 55°C |
|
Operating humidity |
5 to 95% noncondensing |
|
Certifications |
FCC, IC, CE, terragraph |
|
LEDs |
|
Power |
Flashing white: bootup in progress
White: not connected to UISP™ console
Blue: connected to UISP console |
|
Ethernet |
Flashing blue: ethernet activity |
|
GPS |
Blue: receiving at least (4) GPS satellite signals |
|
60G |
Blue: active connection |
|
5G |
Blue: active connection |
|
System |
|
Maximum throughput |
5 GHz: 866.6 Mbps
60 GHz: 3.8 Gbps/6 Gbps (with channel bonding enabled) |
|
Maximum range |
4 km |
|
Encryption |
WPA2-PSK (AES) |
|
Software |
|
OS |
airFiber® |
|
Modes |
PtP only |
|
Services |
UISP, ping watchdog, NTP client, system log |
|
Utilities |
Antenna alignment tool, discovery utility, ping, speed test |
|
Management interface |
Bluetooth management for easy setup over UISP App
WEB UI |
|
Minimum software requirements |
Modern Web browser or Android/iOS smartphone |
|
RF |
|
Operating frequency |
57 to 66 GHz (Depends on domain). |
|
GPS |
Yes |
|
Channel bandwidth |
2160 MHz/4320 MHz (with channel bonding enabled) |
|
Operating channels |
58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz*
*It depends on the channel bandwidth |
|
Back-Up RF |
Operating frequency*
US/CA |
U-NII-1 5150 - 5250 MHz
U-NII-3 5725 - 5850 MHz |
|
Worldwide |
5150 - 5875 MHz (Depends on domain) |
|
Channel bandwidth |
20/40/80 MHz |
| Package Contents: |
|---|
| 1 x AF60-XG
|
| 1 x Mast holder
|
| 1 x 48VDC, 0.65A gigabit PoE adapter
|
| 1 x Power Cord |
|
