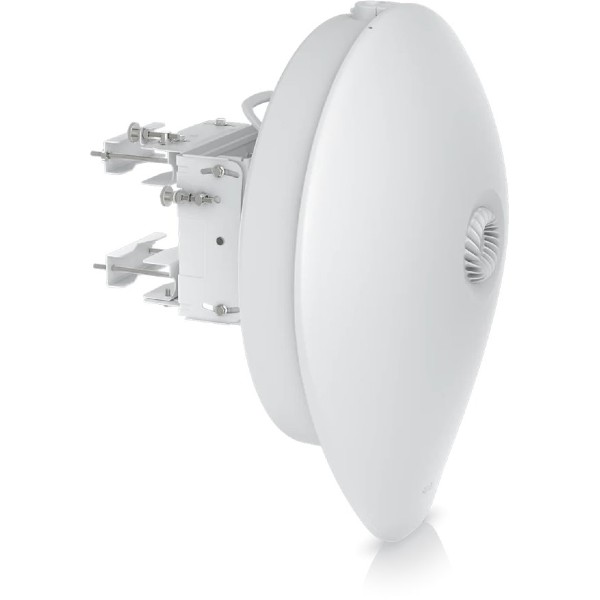

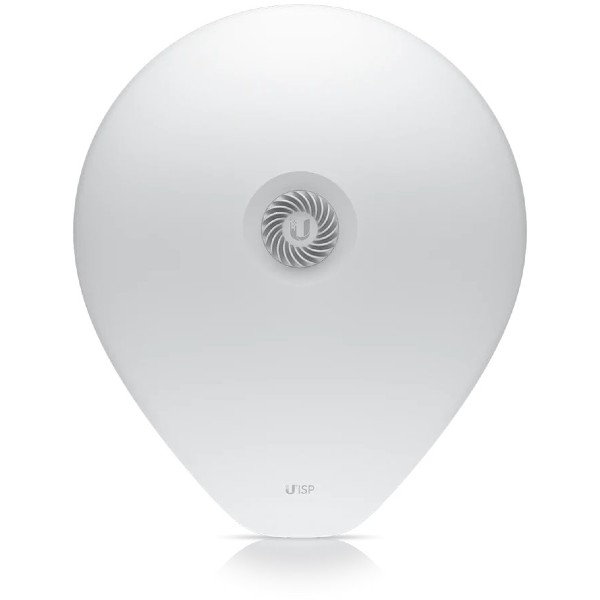

AF60-XR - UISP airFiber 60 XR
Multi-gigabit, 60 GHz bridge designed to create long-distance links and deliver 5.4 Gbps total throughput (2.7 Gbps duplex) over them.
It's also equipped with a 5 GHz backup radio for operational redundancy, as well as a Bluetooth radio to simplify setup via the UISP® Mobile app.
Features:
-
5 GHz backup radio
-
Link range: 15+ km
-
(1) 10G SFP+ port
-
Integrated GPS
-
Link planning support via the ISP Design Center
Managed with the UISP application: Version 1.4.3 and later
Managed with the UISP Mobile app: Version 2.20 and later (iOS) / Version 2.21.5 and later (Android)
The price is for a single dedvice. Requires 2 devices to form a link.
|

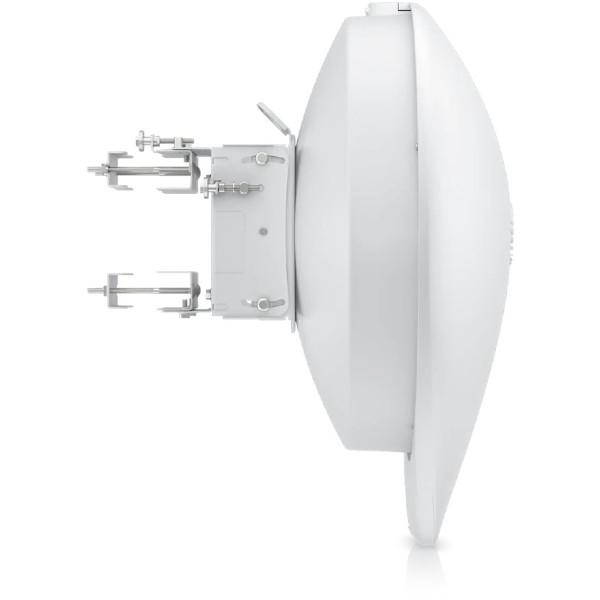

Mechanical |
|
Dimensions |
779 x 664 x 383 mm |
|
Weight |
Without mount: 8.6 kg
With mount: 13 kg |
|
Enclosure materials |
UV stabilized polycarbonate, steel |
|
Mount material |
Galvanized steel |
|

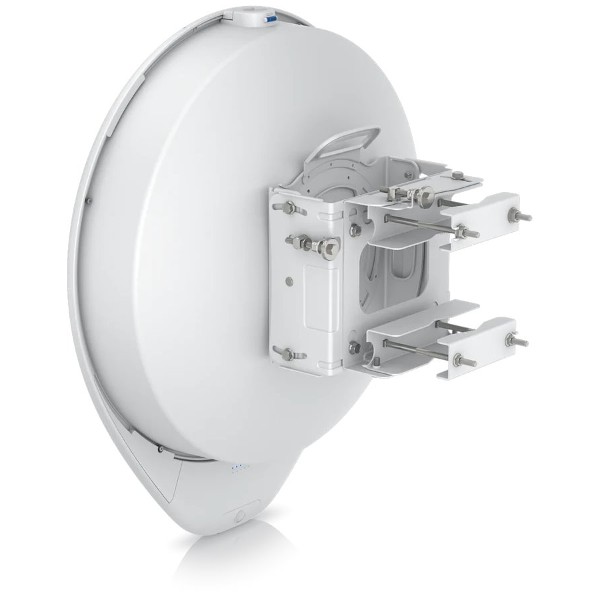

Mounting |
Precision alignment kit (included)
Pole compatibility: Ø40 to 80 mm on pipe outer diameter |
|
Wind loading |
422 N at 200 km/h |
|
Weatherproofing |
IPX6 |
|
Hardware |
|
Processor |
Quad-core ARM® Cortex®-A53 at 1.4 GHz |
|
Memory |
DDR3L1 GB |
|
Networking interface |
(1) GbE RJ45 port
(1) 1/10G SFP+port |
|
Max. power consumption |
24W |
|
Power method |
Passive PoE 4-pairs (1,2+; 3,6-) (4,5+; 7,8-) or 2-pairs (4,5+; 7,8-) |
|
Power supply |
48VDC, 0.65A gigabit PoE adapter (included) |
|
RF connections |
Internal |
|
Button |
Factory reset |
|
LEDs |
Power, Ethernet, GPS, link |
|
Operating temperature |
-40°C to 55°C |
|
Operating humidity |
5 to 95% noncondensing |
|
Certifications |
FCC, IC, CE |
|
Software |
|
OS |
airOS® |
|
Operating mode |
PtP only |
|
Ubiquiti specific features |
Integrated 60 GHz radio, discovery protocol, Wave technology |
|
Services |
UISP, ping watchdog, NTP client, device discovery |
|
Tools |
Antenna alignment, discovery utility, ping, trace route, speed test |
|
Network |
Bridge mode |
|
Software management |
Bluetooth management for easy setup over UISP appWEB UI |
|
Minimum software requirements |
Any modern web browser/iOS™ or Android™ based smartphone |
|
System |
|
Maximum throughput |
2.5+ Gbps |
|
Maximum range |
15+ km |
|
Encryption |
WPA2-PSK (AES) |
|
RF |
|
Operating frequency* |
57 to 71 GHz (Depends on regulatory region. |
|
Channel bandwidth |
2160, 1080 MHz |
|
Operating channels* |
58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880,
66960, 68040, 69120 MHz (Depends on regulatory region) |
|
Modulation |
16QAM, BPSK, QPSK |
|
Beamwidth |
Azimuth: ± 1°
Elevation: ± 1° |
|
Management radio |
2400 - 2483.5 MHz |
|
Electrical downtilt |
0° |
|
Back-Up RF |
Operating frequency*
US/CA
Worldwide |
U-NII-1 5150 - 5250 Mhz
U-NII-3 5725 - 5850 Mhz
5150 - 5875 MHz
* Depends on regulatory region. |
|
Channel bandwidth |
20, 40, 80 MHz |
|
Modulation |
BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2⁄3),
64QAM (¾), 64QAM (5⁄6), 256QAM (¾), 256QAM (5⁄6) |
|
Antenna gain |
26 dBi |
|
Beamwidth |
Azimuth: ± 7°
Elevation: ± 7° |
|
Cross-pol isolation |
14 dB |
|
Electrical downtilt |
0° |
|
LEDs |
|
Power |
Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application |
|
Ethernet |
Flashing blue: Ethernet activity |
|
GPS |
Blue: receiving at least (4) GPS satellite signals |
|
Link |
Blue: 5GHz link
Blue: 60GHz link |

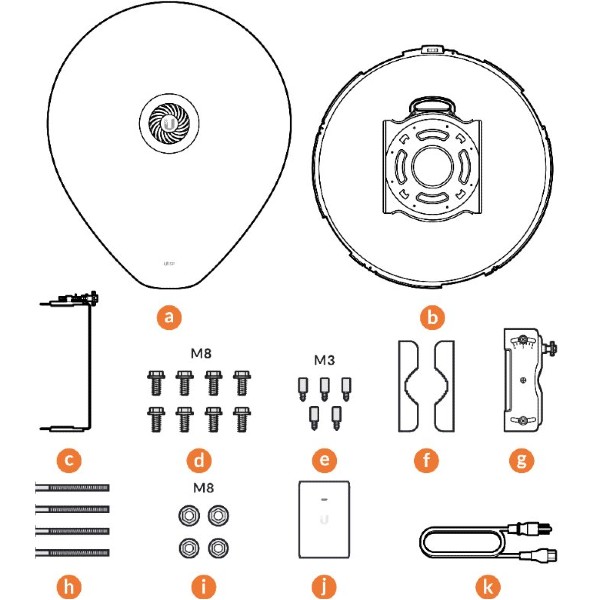

| Package Contents: |
|---|
| 1 x AF60-XR
|
| 1 x Mast holder
|
| 1 x 48VDC, 0.65A gigabit PoE adapter
|
| 1 x Power Cord |
|
