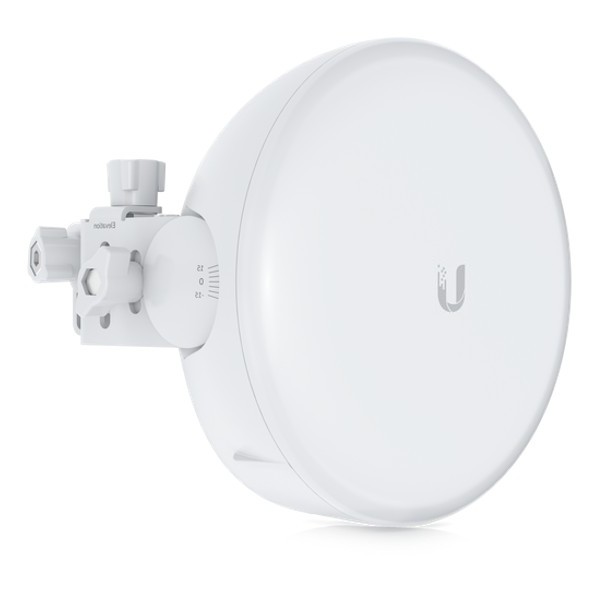

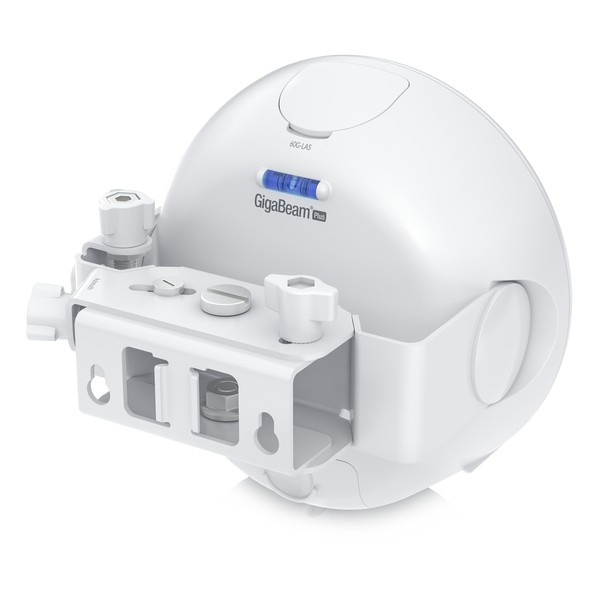

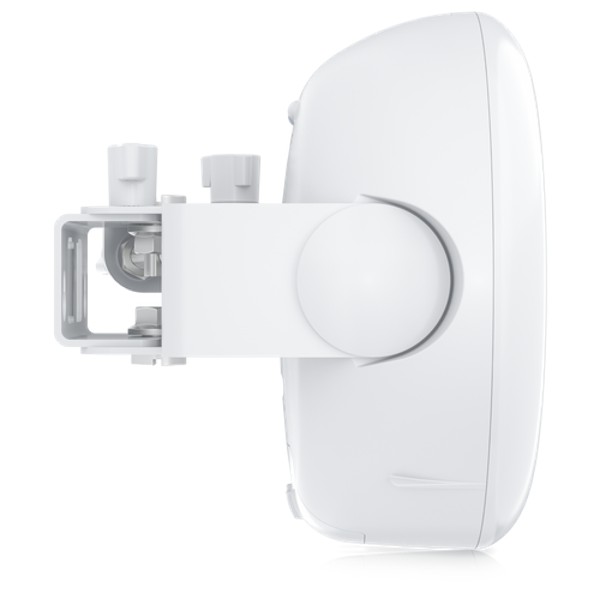

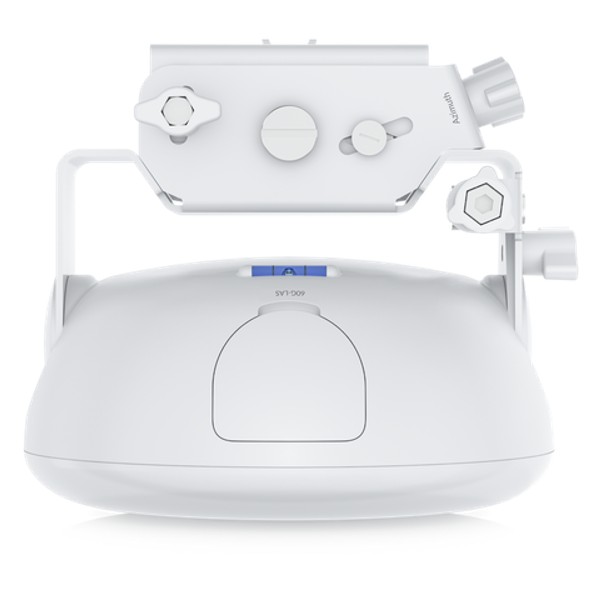

GBE-Plus - UISP airMAX GigaBeam Plus 60 GHz Radio
The GigaBeam® Plus (GBE Plus) is a 60 GHz radio that can be used as a high-throughput backhaul/edge point-to-point (PTP) solution in WISP deployments.
With its integrated Cassegrain reflector, the GBE Plus delivers 35 dBi antenna gain and can exceed a 1.5 Gbps bidirectional throughput rate with very low latency.
Designed for simple deployment and ease of use, the GBE Plus can be set up in minutes and fully managed with the UISP® web application or mobile app.
|
Mechanical |
|
Dimensions |
Ø155 x 137mm |
|
Weight |
1 kg |
|
Enclosure materials |
UV-resistant polycarbonate, stainless steel |
|
Mount material |
Metal |
|
Wind loading |
50 N at 200 km/h |
|
Hardware |
|
Processor |
Quad-Core ARM® Cortex® A7 |
|
Memory |
256 MB DDR3 |
|
Networking interface |
10/100/1,000 Mbps RJ45 port |
|
Management interfaces |
Ethernet
Bluetooth |
|
RF connections |
Internal |
|
Max. power consumption |
11W |
|
Power method |
Passive PoE (Pairs 4, 5+; 7, 8-) |
|
Power supply |
24VDC, 0.5A Gigabit PoE adapter |
|
Supported voltage range |
22 to 26VDC |
|
ESD/EMP protection |
Air/Contact: ± 24kV |
|
Operating temperature |
-40°C to 60°C |
|
Operating humidity |
5 to 95% noncondensing |
|
Certifications |
FCC, IC, CE |
|
LEDs |
|
Power |
Flashing white: Booting up
White: Not connected to UISP
Blue: Connected to UISP |
|
Ethernet |
Flashing blue: Ethernet traffic detected |
|
60GHz |
Blue: Connected |
|
Software |
|
OS |
airOS® |
|
Operating modes |
PtP master or station |
|
Ubiquiti specific features |
Integrated 60 GHz radio, discovery protocol |
|
Security |
WPA2 AES only |
|
Dashboard |
Yes |
|
Wireless settings |
Yes |
|
Network settings |
Yes |
|
System |
Yes |
|
Services |
UISP, ping watchdog, web server, SSH server, NTP client, system log, device discovery |
|
Tools |
Antenna alignment, discovery utility, traceroute, speed test |
|
Management interface |
UISP application (web/mobile) |
|
Minimum software requirements |
A modern web browser or an iOS/Android device |
|
RF |
|
Operating frequency |
57,000 - 66,000 MHz * Dependent on regional regulations. |
|
Channel bandwidth |
2160 MHz |
|
Operating channels |
58320, 60480, 62640, 64800 MHz |
|
Beamwidth (only vertical pol) |
Azimuth: 2° (-3 dB) / 3° (-6 dB)
Elevation: 2° (-3 dB) / 3° (-6 dB)
|
|
Bluetooth |
2400 - 2483.5 MHz |
|
Electrical downtilt |
0° |

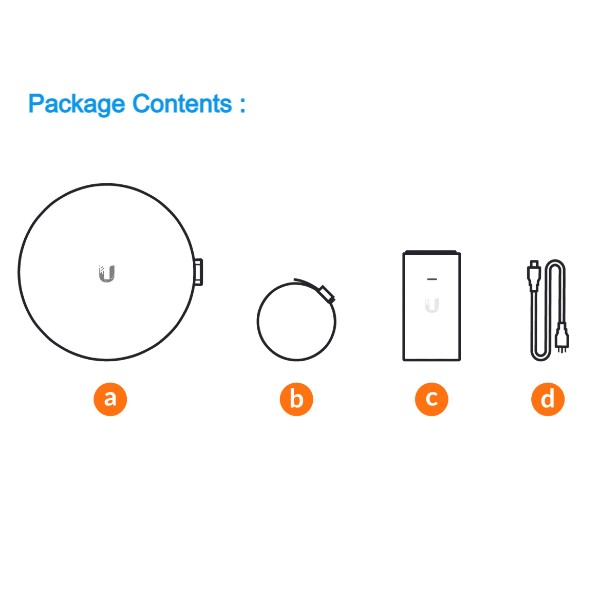

| Package Contents: |
|---|
| 1 x GBE-Plus
|
| 1 x Mast Mount
|
| 1 x Lock Ring
|
| 1 x Metal Strap
|
| 1 x Gigabit PoE (24V, 0.5A)
|
| 1 x Power Cord |
|
