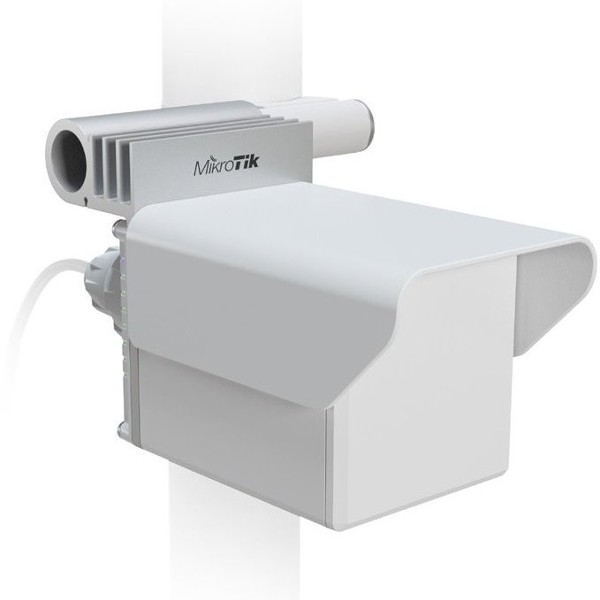

Cube 60Pro ac - A powerful point-to-point 60 GHz 802.11ay CPE for bridging distances up to 2.4 km.
The Cube 60Pro ac CPE allows you to establish ultra-fast point-to-point connections over distances as far as 1 km.
With added Channel 5* support, so you can reach even higher distances if necessary. In our tests, the Cube 60Pro ac easily maintained a reliable connection over 2.4 km.
Forget about downtime with the automatic 5 GHz backup failover connection The 60 GHz frequency is unaffected by the crowded wireless spectrum, it offers high speed and capacity.
We have added a powerful directional antenna so that the 5 GHz range can keep up with the 60 GHz.
We have upgraded the enclosure to feature a strong metal base for better mounting and cooling options.
|
Specifications |
|
Product code |
CubeG-5ac60ay |
|
Architecture |
ARM 32bit |
|
CPU |
IPQ-4019 |
|
CPU core count |
4 |
|
CPU nominal frequency |
auto (448 - 896) MHz |
|
Dimensions |
115 x 95 x 82 mm |
|
RouterOS license |
4 |
|
Operating System |
RouterOS |
|
Size of RAM |
256 MB |
|
Storage size |
64 MB |
|
Storage type |
FLASH |
|
MTBF (Approximately) |
200.000 hours @ 25°C |
|
Powering |
|
Number of DC inputs |
1 (PoE-IN) |
|
Max power consumption |
10 W |
|
Cooling type |
Passive |
|
PoE in |
802.3af/at |
|
PoE in input Voltage |
18-48 V |
|
Wireless specifications |
|
Wireless 5 GHz Max data rate |
433 Mbit/s |
|
Wireless 5 GHz number of chains |
1 |
|
Wireless 5 GHz standards |
802.11a/n/ac |
|
Antenna gain dBi for 5 GHz |
11.5 |
|
Wireless 5 GHz chip model |
IPQ4019 |
|
Wireless 5 GHz generation |
Wi-Fi 5 |
|
Ethernet |
|
10/100/1000 Ethernet ports |
1 |
|
Details |
|
GNSS standards |
GPS |
|
Certification |
|
Certification |
CE, FCC, IC, EAC, ROHS |
|
IP |
IP54 |
| Package Contents: |
|---|
| 1 x CubeG-5ac60ay
|
| 1 x 24V 0.8A power adapter - EU
|
| 1 x Gigabit PoE injector
|
| 1 x Cube mount
|
| 1 x Hose Clamp |
|
