Wireless N Speed /Range
Complying with the IEEE 802.11n standard, the item can establish a wireless network and get up to 15X the speed and 5X the range of conventional 11g products. Also, with transmission rates up to 300Mbps, it shows more excellent abilities of mitigating data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!
CCA Technology -Stable Wireless Signals
Clear Channel Assessment (CCA) automatically avoids channel conflicts using its clear channel selection feature and fully realizes the advantages of channel binding, greatly enhanced the wireless performance.
WPA / WPA2 Encryptions -Advanced Security
As for the security of WI-FI connection, WEP encryption has been no longer the strongest and safest guards for outside threats. the item provides WPA/WPA2 encryptions (Both Personal and Enterprises) that are created by the WI-FI Alliance industry group, promoting interpretabilities and security for WLAN.
WPS - One Button Security
item features WI-FI Protected Setup (WPS) that allows users to almost instantly setup their security simply by pressing the "WPS" button automatically establishing a WPA2 secure connection, which is more secure compared with WEP encryptions. Not only is this faster than normal security setups but more convenient in that you don't need to remember a password!
IP QoS - Control Bandwidth Reasonably
Among the wireless network, indiscriminate Internet surfing and bandwidth-guzzling downloads by internal users often leave home or small office with insufficient bandwidth. supports IP QoS function, allowing optimum utilization of bandwidth and offers bandwidth control over congestion, preventing the bandwidth abuse. In this way, the users of a small network receive committed and specific bandwidth, preventing non-critical applications from degrading network performance.
Specifications : |
Frequency |
2.4-2.4835GHz |
Signal Rate |
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic) |
EIRP |
<20dBm(EIRP) |
Reception Sensitivity |
270M: -68dBm@10% PER 130M: -68dBm@10% PER
108M: -68dBm@10% PER 54M: -68dBm@10% PER
11M: -85dBm@8% PER 6M: -88dBm@10% PER
1M: -90dBm@8% PER |
Wireless Functions |
Enable/Disable Wireless Radio,WDS Bridge,WMM, Wireless Statistics |
Wireless Security |
64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK |
HARDWARE FEATURES |
Interface |

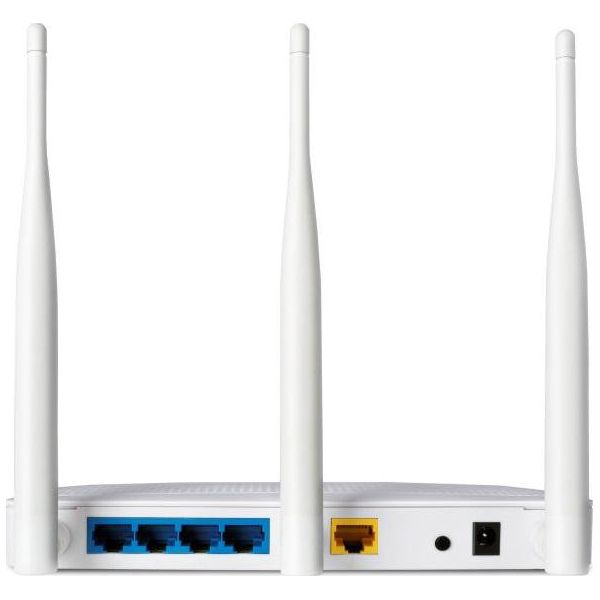

4 10/100Mbps LAN PORTS 1 10/100Mbps WAN PORT |
Button |
Wireless On/Off Button,WPS/Reset Button,Power On/Off Button |
External Power Supply |
9VDC / 0.6A |
Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Antenna |
3*5dBi Fixed Omni Directional Antenna |
Dimensions |
185 x 123 x 177mm |
Software Features : |
WAN Type |
Dynamic IP/Static IP/PPPoE/ PPTP(Dual Access)/L2TP(Dual Access)/BigPond |
DHCP |
Server, Client, DHCP Client List, Address Reservation |
Quality of Service |
WMM, Bandwidth Control |
Port Forwarding |
Virtual Server,Port Triggering, UPnP, DMZ |
Dynamic DNS |
DynDns, Comexe, NO-IP |
QOS |
IP traffic control |
Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security |
DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding |
Management |
Access Control
Local Management
Remote Management |
OTHERS |
Certification |
CE, FCC, RoHS |
System Requirements |
Microsoft Window 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8,MAC OS, NetWare, UNIX or Linux. |
Environment |
Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
Package Contents: |
1 x BL-WR3000 AP/Router
|
1 x Quick Guide
|
1 x Power Supply EU Type |
|
