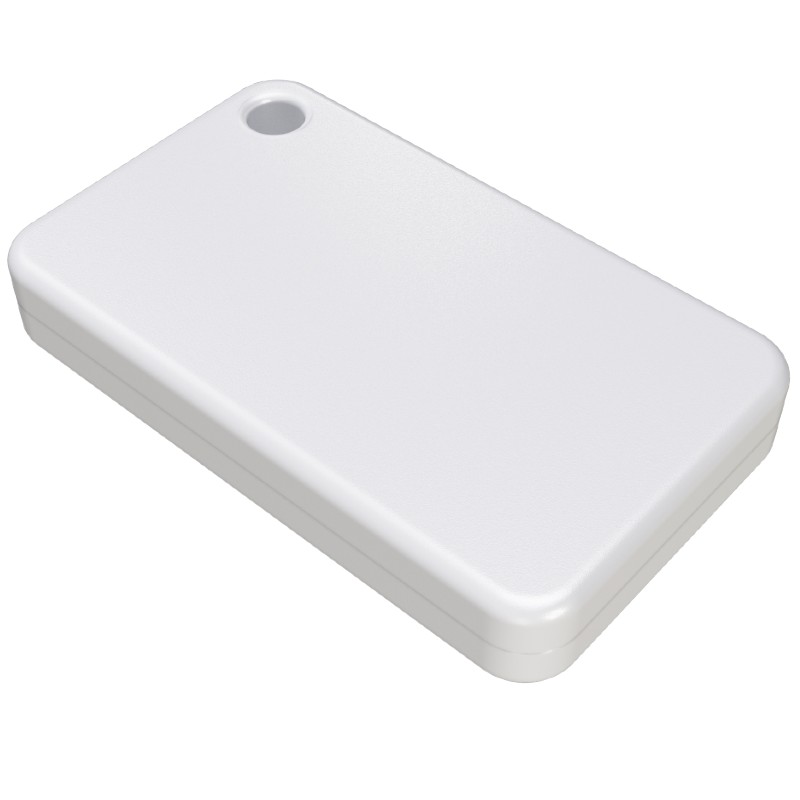

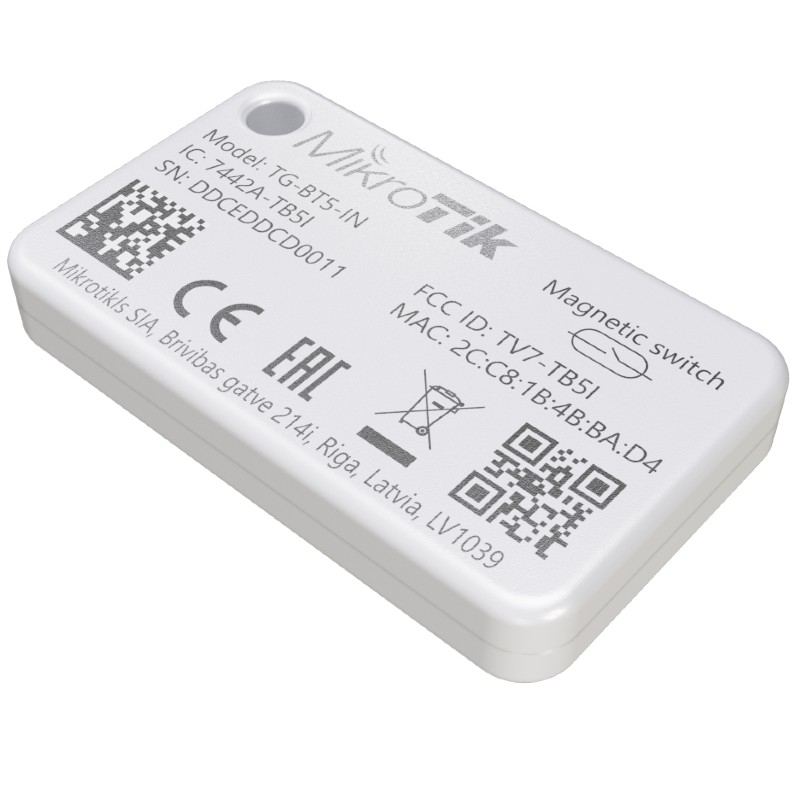

TG-BT5-IN - Indoor Bluetooth tags for the MikroTik KNOT or other IoT asset-tracking/telemetry setups.
Just attach the tags to the necessary items - and the nearest gateway will sense the tags in its proximity. Exceptionally useful in warehouse logistics – let your cargo inform you as soon as it enters the warehouse! They use so little power that a single built-in 220 mAh battery will last for years.
Once activated, the tag will broadcast iBeacon, Eddystone or MikroTik telemetry advertising packets to the gateway (such as the KNOT or any other BLE gateway). These packets contain MAC address used for ID, as well as telemetry data – such as acceleration, tilt and battery charge level. The gateway then pushes the data to the remote server utilizing MQTT or HTTP protocols.
By default, advertisement packets are sent once every 5 seconds, but you can change this value to your liking. For example, if you set the interval to 1 second, the battery will typically last two years.
The built-in accelerometers can not only detect acceleration (movement), but can also register if the device was dropped or tilted (free-fall detection).
The indoor version of our BLE tags works best in a temperature range from 0°C to 70°C. It is splash-proof, and comes with a built-in accelerometer.
|
Specifications |
|
Product code |
TG-BT5-IN |
|
Storage size |
352 KB |
|
Storage type |
FLASH |
|
Other |
|
Bluetooth version |
5.2 |
|
Certification & Approvals
|
|
Certification |
CE, FCC, IC, EAC, ROHS |
|
IP |
54 |
| Package Contents: |
|---|
| 1 x TG-BT5-IN |
