LtAP LR8G LTE6 kit - A rugged all-in-one device (LoRa®, 2.4 GHz Wireless, built-in GPS, fast Cat6 LTE mobile internet) with multiple powering options.
The LtAP LR8G LTE6 kit equipped with an LTE6 modem is a compact and robust wireless access point supporting LTE Category 6, LoRa networks, LAN, GPS, full USB, and RS-232 ports.
It’s perfect for congested urban environments or remote installations. The 2.4 GHz wireless connectivity delivers speeds of up to 300 Mbps, providing fast LTE access for your mobile devices.
Wired devices can be connected via the Gigabit Ethernet port. On the LTE network, speeds of up to 300 / 50 Mbps are achievable.

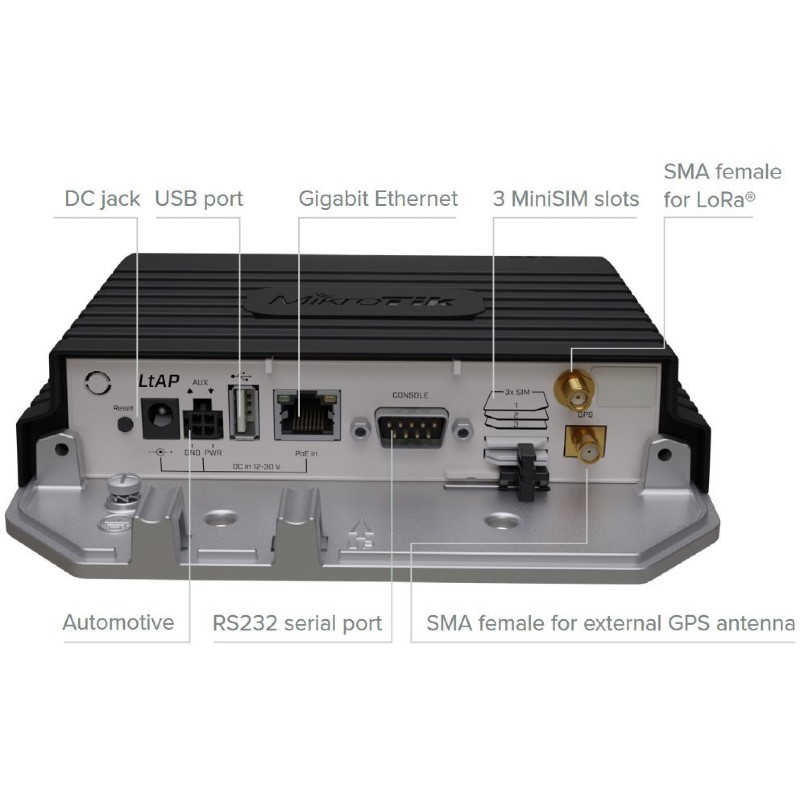

The LtAP offers three power options (12 to 30 V DC): DC jack, PoE, and a 4-pin automotive connector suitable for vehicle installations.
|
Specifications |
|
Product code |
LtAP-2HnD&FG621-EA&LR8G |
|
Architecture |
MMIPS |
|
CPU |
MT7621AT |
|
CPU core count |
2 |
|
CPU nominal frequency |
880 MHz |
|
CPU Threads count |
4 |
|
RouterOS license |
4 |
|
Operating System |
RouterOS v7 |
|
Size of RAM |
128 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
MTBF (Approximately) |
200.000 hours at 25°C |
|
Tested ambient temperature |
-40°C to 70°C |
|
IPsec hardware acceleration |
Yes |
|
Powering |
|
Number of DC inputs |
3 (Automotive, DC jack, PoE-IN) |
|
DC jack input Voltage |
12-30 V |
|
Automotive input Voltage |
12-27 V |
|
Max power consumption |
24 W |
|
Max power consumption without attachments |
12 W |
|
Cooling type |
Passive |
|
PoE in |
Passive PoE |
|
PoE in input Voltage |
12-30 V |
|
Mobile |
|
3G Category |
R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
|
3G bands |
1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
|
LTE Category |
6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
|
MIMO DL |
2x2 |
|
MIMO UL |
1x1 |
|
LTE FDD bands |
1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz)
8 (900 MHz) / 20 (800MHz) / 28 (700MHz) |
|
LTE TDD bands |
38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
|
TAC |
86335904 |
|
Wireless specifications |
|
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
|
Wireless 2.4 GHz number of chains |
2 |
|
Wireless 2.4 GHz standards |
802.11b/g/n |
|
Antenna gain dBi for 2.4 GHz |
2.5 |
|
Wireless 2.4 GHz chip model |
AR9342 |
|
Wireless 2.4 GHz generation |
Wi-Fi 4 |
|
Ethernet |
|
10/100/1000 Ethernet ports |
1 |
|
Peripherals
|
|
Number of SIM slots |
3 Modem (Mini SIM) |
|
Serial console port |
RS232 |

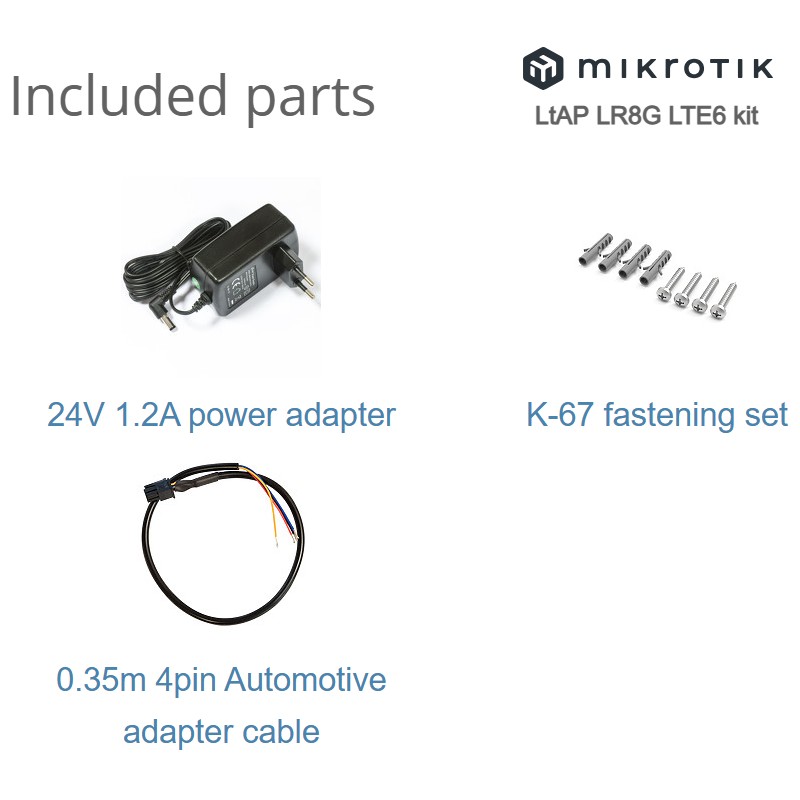

| Package Contents: |
|---|
| 1 x LtAP LR8G LTE6 kit
|
| 1 x 24V/1.2A power adapter
|

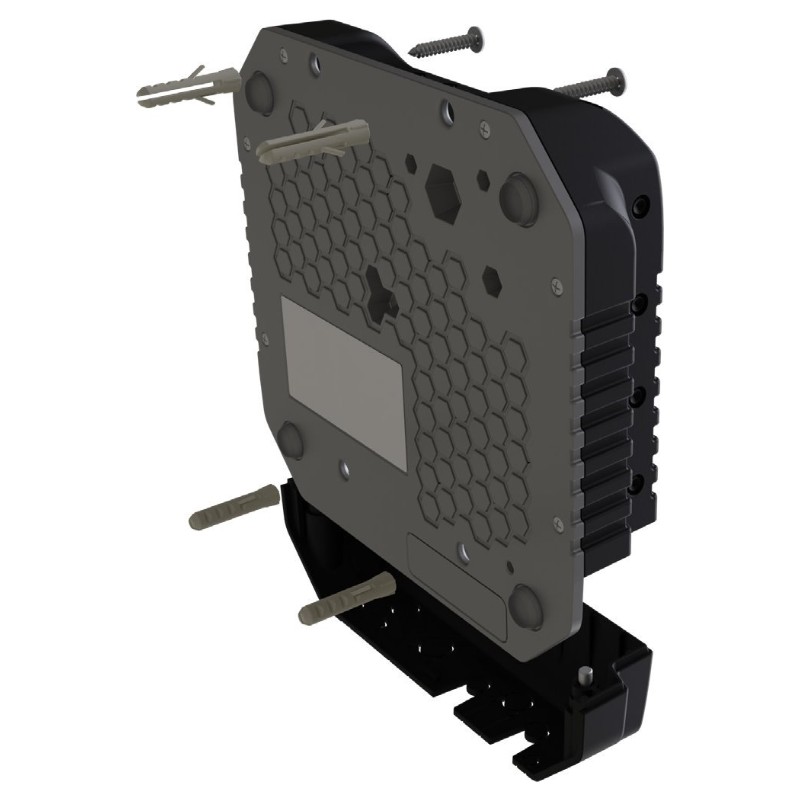

| 1 x K-67 fastening set
|
| 1 x 0.35m 4pin Automotive adapter cable |
|
