MikroTik RouterBOARD RBwAPR-2nD&R11e-LR8G, wAP LR8G kit
[3336][RBwAPR-2nD&R11e-LR8G]

Price: 111,24€

Order or Qty		Price
> 500€	5+	110,13€
> 1000€	10+	109,02€
> 2000€	20+	107,91€
> 5000€	40+	106,79€
> 10000€	100+	105,68€

Prices exclude VAT

No Stock

Order Qty:

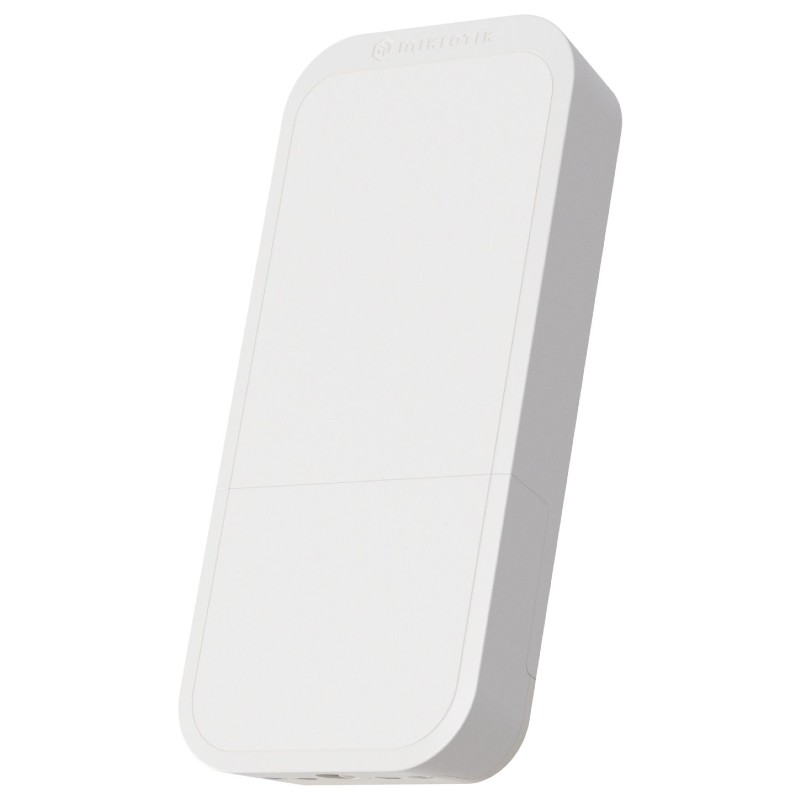

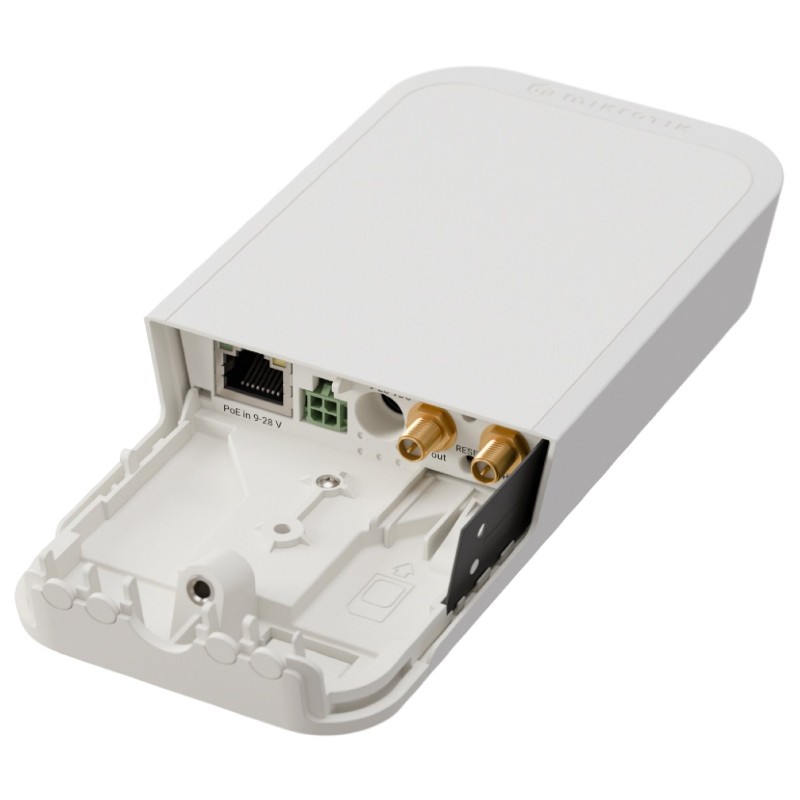

wAP LR8G kit - A compact, weatherproof gateway with 2.4 GHz Wireless, 868MHz LoRa®, and a built-in GPS .

It supports communication within LoRaWAN networks on frequencies of 863–870 MHz and offers exceptional Rx sensitivity up to -141 dBm for reliable long-range communication.

The integrated GPS module enables LoRa packet timestamps.

The device supports Listen before talk technology and provides 10/100 Mbps Ethernet and 2.4 GHz Wi-Fi for communication with IoT components.

It also offers a wide range of power options, including PoE and DC connectors.

Product Links:
Product Page	Brochure	User Manual	YouTube

Specifications
Product code	RBwAPR-2nD&R11e-LR8G
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	600 MHz
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	64 MB
Storage size	16 MB
Storage type	NAND
MTBF (Approximately)	200.000 hours at 25°C
Tested ambient temperature	-40°C to 60°C
Powering

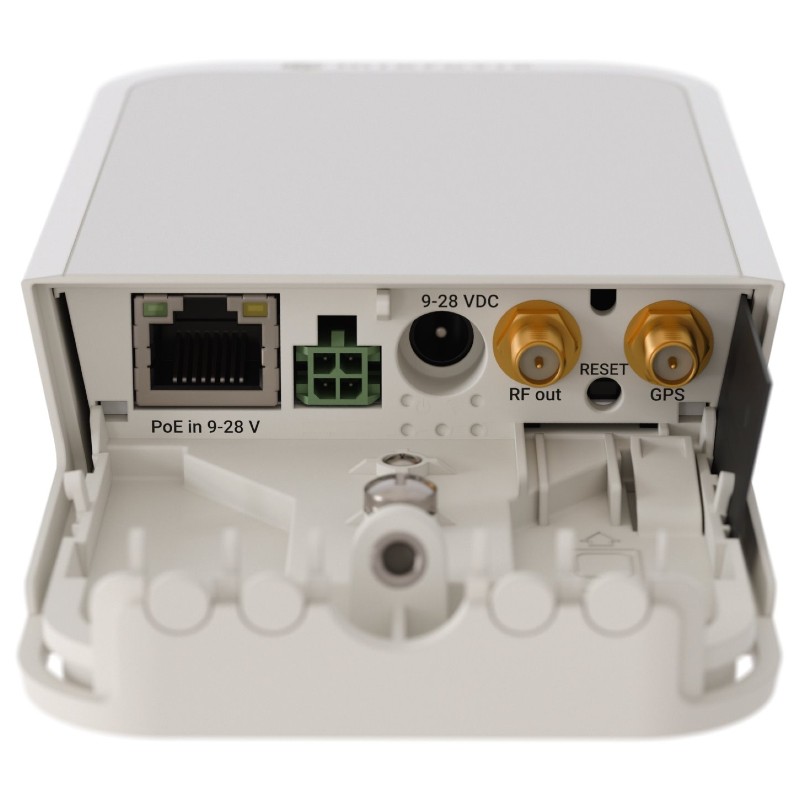

Number of DC inputs	3 (DC jack, PoE-IN, Automotive)
DC jack input Voltage	9-28 V
Automotive input Voltage	12-30 V
Max power consumption	7 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	9-28 V
Wireless specifications
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4
Ethernet
10/100 Ethernet ports	1
Peripherals
Number of SIM slots	1 Modem (Mini SIM)
MiniPCI-e slots	1
Other
PCB temperature monitor	Yes
Voltage Monitor	Yes
GPS RF connector type	uUFL
