MikroTik D53G-5HacD2HnD-TC&EG120K-EA, Chateau LTE12 kit 2025
[3377][D53G-5HacD2HnD-TC&EG120K-EA]

Price: 145,12€

Prices exclude VAT

Available on:
2 Apr 2025
Expected Qty:2

Available quantity within
3-5 working days: 3

Order Qty:

EAN:	4752224008879

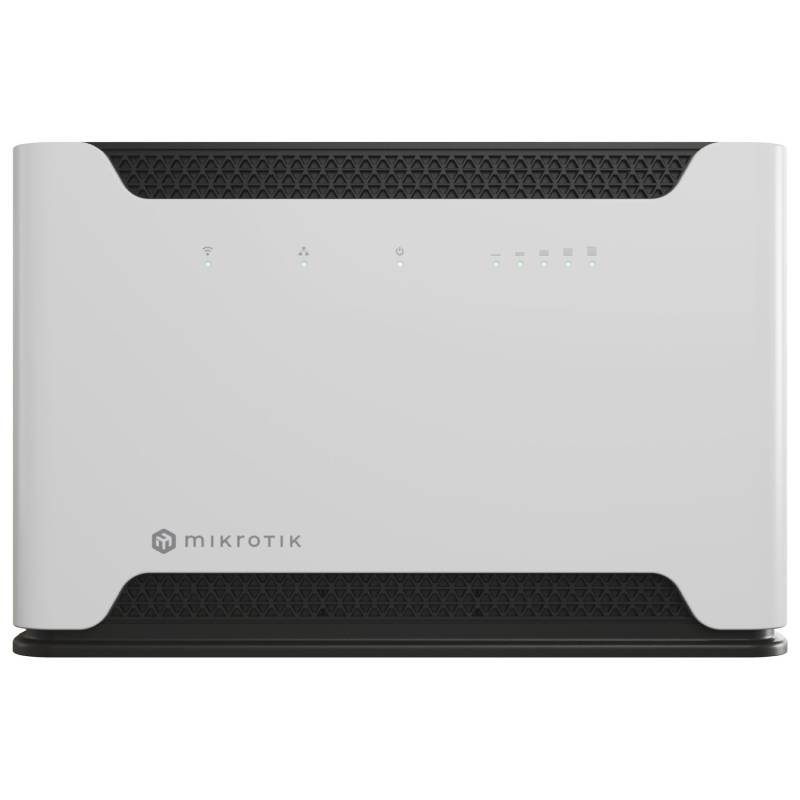

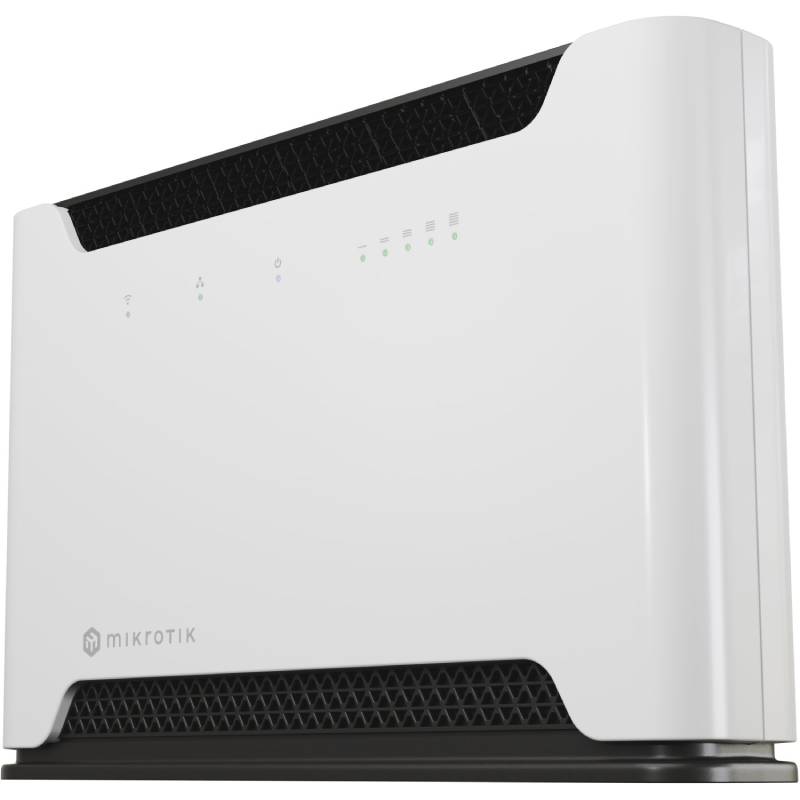

Chateau LTE12 (2025) - Your best friend when it comes to mobile networks

Chateau LTE12 is the solution, delivering faster, more reliable mobile internet, whether you are in the city or the countryside.

Features:

Faster speeds in crowded areas
More stable connections in remote locations
Wider coverage across multiple LTE bands
Upgraded LTE12 modem for stronger, reliable connections.
Expanded 4x4 MIMO support on more bands: 1 / 3 / 7 / 38 / 40 / 41
Dual-band Wi-Fi for seamless performance across all devices
Now with B32 support for improved LTE performance in supported regions!

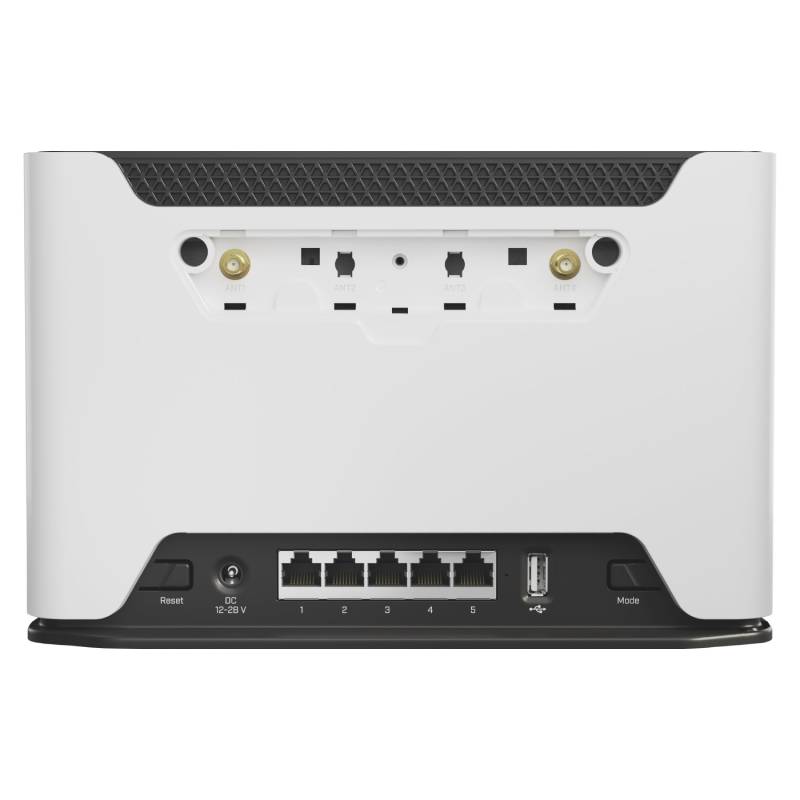

5x Gigabit Ethernet ports to connect media servers, PC towers, TVs, or smart home systems.
Dual-band Wi-Fi (2.4 GHz & 5 GHz) ensures stable connections for all your devices.
External LTE antenna support (not included) to boost signal strength in tricky signal areas.
RouterOS for advanced security, VPNs, and full network control.

Product Links:
Product Page	Brochure	Quick guide

Specifications
Product code	D53G-5HacD2HnD-TC&EG120K-EA
Architecture	ARM 32bit
CPU	IPQ-4019
CPU core count	4
CPU nominal frequency	448-896 (auto) MHz
Switch chip model	IPQ-4019
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	256 MB
Storage size	32 MB
Storage type	FLASH
MTBF Approximately	200.000 hours at 25°C
Tested ambient temperature	-20°C to 70°C
Powering
Number of DC inputs	1 (DC jack)
DC jack input Voltage	12-28 V
Max power consumption	24 W
Max power consumption without attachments	18 W
Cooling type	Passive
Mobile
3G Category	R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands	3 (1800MHz) / 1 (2100MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category	12 (600Mbps Downlink, 150Mbps Uplink)
MIMO DL	4x4
MIMO UL	1x1
LTE FDD bands	1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 32 (1500 MHz)
LTE TDD bands	40 (2300MHz) / 41 (2500MHz) / 38 (2600MHz)
TAC	86056104
Wireless specifications
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2
Wireless 2.4 GHz chip model	IPQ-4019
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless 5 GHz Max data rate	867 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	4
Wireless 5 GHz chip model	IPQ-4019
Wireless 5 GHz generation	Wi-Fi 5
Ethernet
10/100/1000 Ethernet ports	5
Peripherals
Number of SIM slots	1 Modem (Micro SIM)
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1
Number of M.2 slots	1
