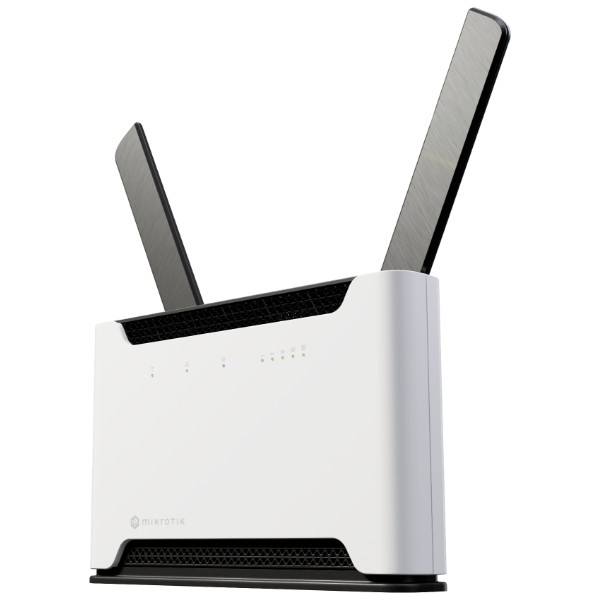

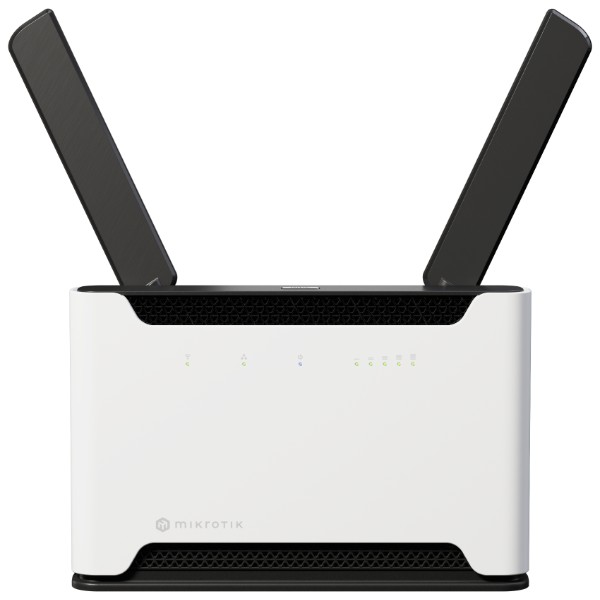

Chateau LTE18 ax - Wi-Fi 6 Home AP with LTE Support, Quad-Core 1.8GHz CPU, 802.11ax + Wave2, 4x GbE ports, 1x 2.5GbE Port
Chateau LTE18 ax is a Dual Band 2.4/5GHz Wi-Fi 6 router for home or small businesses with (4) Gigabit LAN + (1) 2.5-Gigabit ports , LTE18 modem, one USB port, L4 license and extra fast 4-core ARM 1800MHz CPU, 128MB internal storage and 1 GB RAM.
The modulation speed of the 2.4GHz radio part (2×2 MIMO) is 574 Mbps and for 5GHz (2×2 MIMO) it is 1200 Mbps.

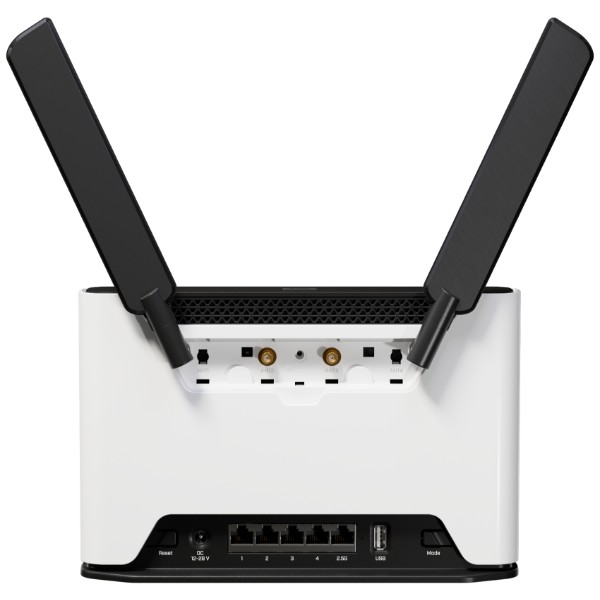

Chateau LTE18 ax has four built-in antennas for LTE, two SMA female connectors for possible improvement of the LTE range using external antennas and two antennas for Wi-Fi, which are included in the package.
In the case of the Chateau LTE18 ax model, you no longer need to be limited by cables - the advantage of this model is huge wide channel support in 3G/LTE networks.
This LTE router provides speed up to 1200 Mbps (download) and 150 Mbps upload with low latencies in LTE.
|
Specifications |
|
Product code |
S53UG+5HaxD2HaxD-TC&EG18-EA |
|
Architecture |
ARM 64bit |
|
CPU |
IPQ-6010 |
|
CPU core count |
4 |
|
CPU nominal frequency |
auto (864 -1800) MHz |
|
RouterOS license |
4 |
|
Operating System |
RouterOS (v7 only) |
|
Size of RAM |
1 GB |
|
Storage size |
128 MB |
|
Storage type |
NAND |
|
MTBF (Approximately) |
200.000 hours at 25°C |
|
Tested ambient temperature |
-40°C to 65°C |
|
IPsec hardware acceleration |
Yes |
|
Powering |
|
Number of DC inputs |
1 (DC jack) |
|
DC jack input Voltage |
12-28 V |
|
Max power consumption |
19 W |
|
Max power consumption without attachments |
16 W |
|
Cooling type |
Passive |
|
Mobile |
|
3G Category |
R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
|
3G bands |
1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
|
LTE Category |
18 (1.2Gbps Downlink, 150Mbps Uplink) |
|
MIMO DL |
4x4 |
|
MIMO UL |
1x1 |
|
LTE FDD bands |
1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz)
8 (900 MHz) / 20 (800MHz) / 28 (700MHz) |
|
LTE TDD bands |
38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
|
Wireless specifications
|
|
Wireless 2.4 GHz Max data rate |
574 Mbit/s |
|
Wireless 2.4 GHz number of chains |
2 |
|
Wireless 2.4 GHz standards |
802.11b/g/n/ax |
|
Antenna gain dBi for 2.4 GHz |
3 |
|
Wireless 2.4 GHz chip model |
QCN-5022 |
|
Wireless 2.4 GHz generation |
Wi-Fi 6 |
|
Wireless 5 GHz Max data rate |
1200 Mbit/s |
|
Wireless 5 GHz number of chains |
2 |
|
Wireless 5 GHz standards |
802.11a/n/ac/ax |
|
Antenna gain dBi for 5 GHz |
6 |
|
Wireless 5 GHz chip model |
QCN-5052 |
|
Wireless 5 GHz generation |
Wi-Fi 6 |
|
Ethernet |
|
10/100/1000 Ethernet ports |
4 |
|
Number of 2.5G Ethernet ports |
1 |
|
Peripherals |
|
Number of SIM slots |
1 Modem (Micro SIM) |
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB type A |
|
Max USB current (A) |
1 |
|
Other |
|
PCB temperature monitor |
Yes |
|
Voltage Monitor |
Yes |
|
Mode button |
Yes |
|
Certification & Approvals
|
|
Certification |
CE, EAC, ROHS |
|
IP |
20 |

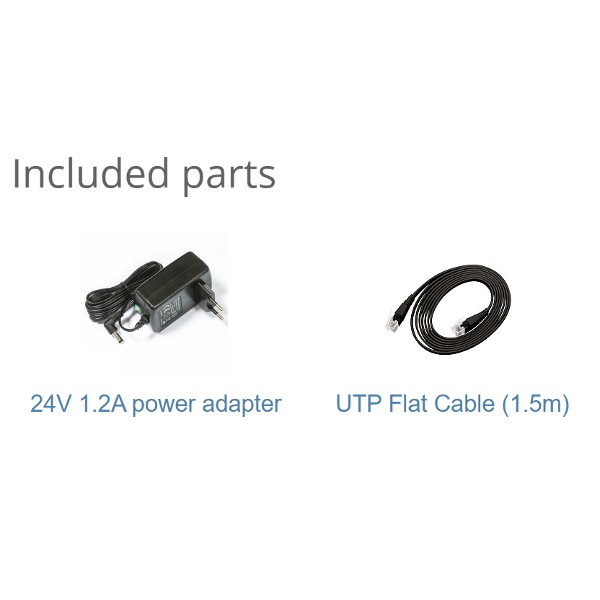

| Package Contents: |
|---|
| 1 x Chateau LTE18 ax
|
| 1 x 24V 1.2A power adapter
|
| 1 x UTP Flat Cable (1.5m) |
|
